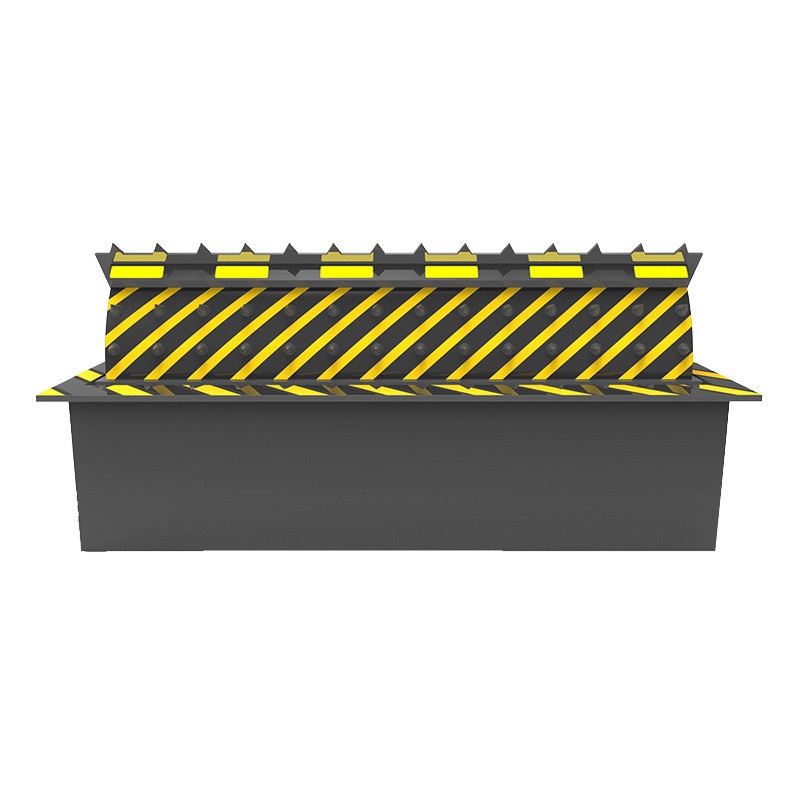

Heavy Duty Hydraulic Road Blocker
3 Phase 380V High Security LED Warning Light Hydraulic Road Blocker
Product Overview
Hydraulic road blockers (also known as anti-terrorism walls or road barriers) are heavy-duty security systems designed to prevent unauthorized vehicle access to high-security areas. Available in heavy and standard types with hydraulic lift mechanisms, these barriers offer high availability, reliability, and security.
These systems can be customized to meet specific site requirements and include emergency release systems for power outage situations, allowing vehicles to pass normally when lowered.
Applications
Road blockers are installed at high-sensitive areas where unauthorized vehicle access is strictly restricted, including military areas, embassies, government offices, ministries, defense sites, and nuclear power plants. They effectively block roadways and obstruct vehicle-based attacks.
Installation & Operation
Mounted by excavating the ground surface with shallow foundations, road blockers can be lowered to clear ground surfaces or raised to create barriers. They feature both manual and automatic hydraulic operation with crash-rated certification capabilities.
SINOMATIC Road Blocker Advantages
Our road blockers provide efficient protection and entry blocking with durable construction capable of stopping 7.5-ton trucks or heavier vehicles traveling at speeds up to 80km/h. Security levels meet K8, K12, and PAS68 standards.
With 15 years of experience exporting automatic road barrier systems to over 50 countries, our knowledge and high-quality products ensure worldwide customer satisfaction.
Product Specifications
| Specification |
Details |
| Product Name |
Hydraulic Road Blocker |
| Road Blocker Dimension |
Length × (W) 1000 × (H) 760mm |
| Height from Ground Level |
500mm |
| Intercept Width |
3m - 4m - 5m - 6m |
| Depth |
760mm |
| Top Plate Thickness |
16mm (20mm and 25mm optional) |
| Movement Principle |
Hydraulic |
| Voltage |
380V |
| Working Temperature |
-40℃ ~ +70℃ |
| Service Life |
10 years |
| Type of Use |
Intensive |
Standard Road Blocker Sizes
L3000*W1000*H760, Rising height: 500mm (Customized)
L3500*W1000*H760, Rising height: 500mm (Customized)
L4000*W1000*H760, Rising height: 500mm (Customized)
L4500*W1000*H760, Rising height: 500mm (Customized)
L5000*W1000*H760, Rising height: 500mm (Customized)
L5500*W1000*H760, Rising height: 500mm (Customized)
L6000*W1000*H760, Rising height: 500mm (Customized)
Main Features
- Control System: Hydraulic with LCD display (English, Russian, Turkish, Spanish language options)
- Power Supply Voltage: 380V (Control voltage 24V)
- System Power: 3.7KW
- Pressure Capacity: Maximum 120 tons for container trucks
- Anti-collision: K12 rating (equivalent to 120km/h impact resistance)
- Protection Level: IP68 (dustproof, waterproof)
- Open Time: 3-6 seconds (adjustable)
- Closing Time: 3-6 seconds (adjustable)
- Communication: RS485 ≤ 1200M
- Elevation Degree: 450mm-800mm
- Working Temperature: -45°C to 75°C
- Storage Environment: -10°C to 75°C, rainproof, moisture proof and dustproof
- Manual operation capability during power outages
- Gang-control interface
- Reliable structure with heavy duty load capacity
- Smooth action with low noise operation
- Reversible operation in rising and falling
- Hydraulic drive with hydraulic lock
- PLC programming command control system
- LCD display with Chinese and English menu
- PLC built-in encryption system
- Double dynamic double oil pump 2.3ML/time
- Hydraulic oil hose: PT international interface, 1/2 Double wire high pressure hose
