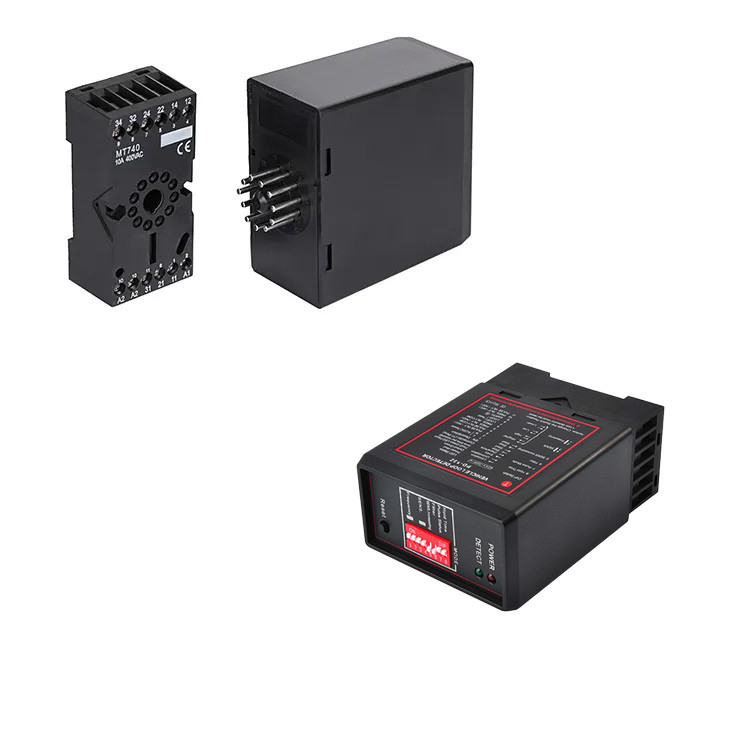

PD132 Vehicle Loop Detector Sensor Parking Driveway Car Auto Inductive Traffic

This inductive coil vehicle detector is designed for precise detection of vehicle presence and passage in various traffic and parking applications. Featuring advanced functionality with configurable settings for optimal performance.

• Reset Switch: Manual reset capability for system recovery during registration and testing
• Selectable Pulse Time: Configurable pulse relay duration of 1 second or 0.5 seconds
• Pulse Relay Selection: Output configuration for vehicle detection or departure events
• Sensitivity Reinforcement: Maximum sensitivity setting to ensure detection of large vehicles
• Adjustable Sensitivity: Four sensitivity levels for precise detection calibration
• Frequency Adjustment: Four frequency settings to prevent interference with adjacent loops
• Filtering Option: Detection delay feature to prevent false triggers from small or fast-moving objects
• Permanent Presence Option: Continuous detection capability for vehicles remaining in loop area

• Parking lot entrance vehicle detection
• Parking lot space information acquisition systems
• Electronic traffic light snapshot systems
• Traffic monitoring systems

Upon power-up, the detector enters self-calibration mode with green LED flashing and red LED off for approximately 1 second. Vehicles should not be present on loops during calibration. After calibration, green LED stops flashing and red LED remains off. When a vehicle passes over the loop, the red LED illuminates.

DIP1 and DIP2 control sensitivity settings. DIP3 sets presence output time for relay 1. DIP4 configures relay 2 as presence/pulse output. DIP5 sets presence signal output time. DIP6 controls frequency settings. Jumper wire connections determine PIN16 connectivity to relay 1 NO/NC terminals.

User-configurable loop frequency prevents cross-talk interference from adjacent loops or environmental frequencies. Two frequency styles available via DIP6 setting.

Front panel DIP1 and DIP2 switches adjust detection sensitivity. If vehicles are not detected during testing, increase sensitivity level.

Standard export carton or wooden packaging available. Custom packaging options upon request. Shipping typically occurs within 48 hours after payment confirmation.
