Non Contact Vehicle Human Radar Loop Detector 79Ghz Millimeter Wave Bluetooth
  • Non Contact Vehicle Human Radar Loop Detector 79Ghz Millimeter Wave Bluetooth
  • Non Contact Vehicle Human Radar Loop Detector 79Ghz Millimeter Wave Bluetooth
Non Contact Vehicle Human Radar Loop Detector 79Ghz Millimeter Wave Bluetooth

Non Contact Vehicle Human Radar Loop Detector 79Ghz Millimeter Wave Bluetooth

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE
Model Number TZ7-038
Product Details
Working Frequency:
77-81GHz
Transmission Power:
12.5 Dbm
Vertical Beam± Angle:
±15°
Horizontal Beam Angle:
±45°
Detection Distance:
0.5~6 Meters
Response Time:
＜100ms
Highlight:

Non Contact Vehicle Radar Loop Detector

,

79Ghz Vehicle Loop Detector

,

Vehicle 6meters Loop Detector

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
US$45~US$65
Packaging Details
Carton
Delivery Time
3-7 working days
Payment Terms
T/T, Western Union, , Ali Pay, L/C, D/A, D/P
Supply Ability
3000 pcs per month
Product Description
Non Contact Vehicle Human Radar Loop Detector 79Ghz Millimeter Wave Bluetooth
79Ghz Millimeter Wave Bluetooth Mobile App Version non-contact Detection Vehicle Human Radar Detector
Product Description
The Radar Detector TZ7-038 Bluetooth version is a non-contact detection device for targets such as vehicles and pedestrians. It operates in the millimeter wave band, transmitting linear frequency-modulated continuous wave signals to perform high-speed real-time processing on target reflections for rapid detection.
Key Advantages
  • Convenient installation and maintenance
  • No road surface damage required
  • No impact on vehicle access
  • Advanced technology with reliable, stable operation
  • High cost performance
  • Easy working distance configuration
  • All-weather operation capability
  • Compatible with straight poles, billboards, and brake lever applications
Technical Specifications
Equipment name Barrier gate radar detector (Bluetooth version)
Working frequency 77-81GHz
Transmission power 12.5 dbm
Antenna gain 0 dbi
Vertical beam angle ±15°
Horizontal beam angle ±45°
Detection distance 0.5~6 meters
Response time <100ms
Signal output mode switching value
Mean time between failures >18000 h
Working voltage 9V~24VDC
Working power <2W@12V
Working temperature range -40 °C to +85 °C
Working humidity range 98% Relative temperature 25 °C
IP rate IP 67
Size 115 * 85 * 20 (mm)
Weight 150g
Pedestrian detection rate >95%
Vehicle detection rate >99%
Communication interface 485
Debugging methods software debugging, button debugging, and mobile mini program debugging
Firmware upgrade method 485 string upgrade, mobile mini program upgrade
Function Descriptions

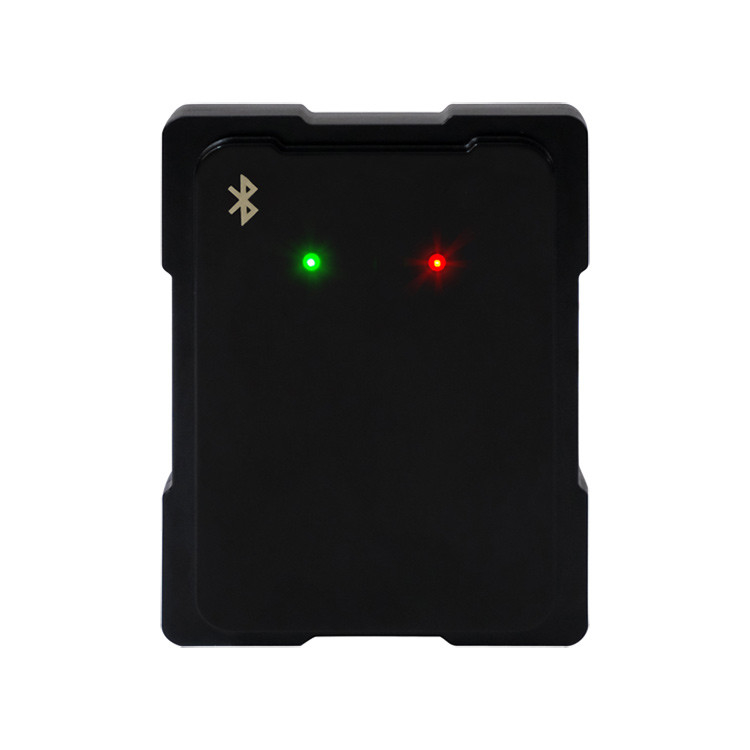

  • LED Indicators: Red light indicates power status (on when powered), green light signals object detection (on when detected, off when clear)
  • Detection Area Configuration: Default setting covers 2.5m straight ahead and 0.7m on both sides of pole; adjustable via mechanical button
  • Parameter Retention: Automatically saves settings like detection area and maintains configuration after reset
  • RS485 Interface: Provides stable communication with extended range capability
  • Software Updates: Online upgrades via serial port without disassembly
  • Environmental Resilience: Unaffected by sun, dust, rain, snow, or other ambient conditions
  • Environment Calibration: Learning and calibration functions accessible via button
  • Factory Reset: Single-button restoration to original settings
Non Contact Vehicle Human Radar Loop Detector 79Ghz Millimeter Wave Bluetooth 0
