Stop Block Automatic Swing Gate Operator Wifi Control Solar Kit
  • Stop Block Automatic Swing Gate Operator Wifi Control Solar Kit
  • Stop Block Automatic Swing Gate Operator Wifi Control Solar Kit
  • Stop Block Automatic Swing Gate Operator Wifi Control Solar Kit
Stop Block Automatic Swing Gate Operator Wifi Control Solar Kit

Stop Block Automatic Swing Gate Operator Wifi Control Solar Kit

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-PK350DC
Product Details
Max Gate Weight:
300 KG
Max Gate Length:
3 Meters
Limit Switch:
Stop Block
Max Force:
1500N
Remote Control Mode:
Single Button Mode
Storage Battery:
Optional
Highlight:

Automatic Swing Gate Operator

,

Stop Block Swing Gate Operator

,

Stop Block Dual Gate Opener

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
L/C, D/A, D/P, T/T, Western Union,
Supply Ability
2,000 pcs per month
Product Description

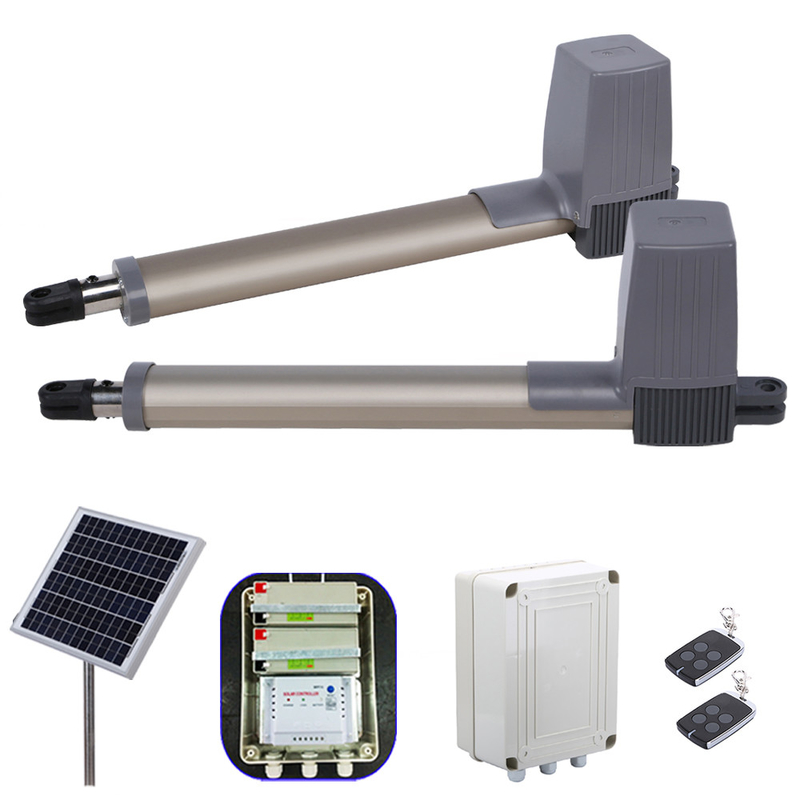

Stop Block Automatic Swing Gate Operator Wifi Control Solar Kit
Push Rod 24V DC Soft Start Slow Stop Function Max Force 1500N Swing Gate Opener
The PK300DC/PK350DC gate opener is engineered for residential courtyard swing gates, supporting gate leaf weights up to 300 kg and widths up to 2.5m/3m. Featuring a DC motor with compact structure, it ensures smooth operation and low noise levels.
Product Specifications
Specification PK300DC PK350DC
Power Supply 220V,50Hz;110V,60Hz
Max. Gate Weight 300KG / Leaf
Max. Gate Length 2.5 m / Leaf 3.0 m / Leaf
Motor Power DC24V,80W
Gate Moving Speed 20 second per 90° angle
Limit Switch Stop Block
Recording of up Remotes 25
Decoding / Frequency Rolling code / 433.92MHz
Work Duty S2 30min
Noise ≤60dB
Work Temperature -20°C~70°C
Gross Weight 16 KG 19 KG
Key Features
  • Push rod 24V DC electronic swing arm gate opener
  • Soft start slow stop function
  • Obstacle detection in opening and closing
  • Automatic close function with adjustable timing
  • Over-current protection meeting European safety requirements
  • Safe PCB design prevents damage from incorrect wiring
  • Compatible with GSM, solar systems, photocells, alarm lamps, and electronic locks
  • Supports up to 23 additional remote controls
  • Manual release bar for power outages and emergencies
  • Optional stroke lengths: 29 cm and 49 cm
  • Separate control box with keypad/single button interface
  • Mechanical stops eliminate need for ground stops
Stop Block Automatic Swing Gate Operator Wifi Control Solar Kit 0
Applications
Ideal for various public access doors, campuses, factories, office buildings, shopping malls, parking lots, and other facilities requiring contactless automatic door opening and closing systems.
Installation Guidelines
The PK300DC/PK350DC swing gate opener is designed for single leaf gates weighing less than 300kg, with single leaf lengths under 2.5m/3m. The drive system utilizes worm and worm gear combined with screw rod transmission. Installation must be inside the enclosure or yard for protection.
Preparation Before Installation
  • Confirm proper gate installation and smooth manual operation
  • Ensure door safety stoppers effectively prevent over-travel
  • For electric lock installation: maintain 40-50mm clearance between door bottom and ground
  • Without electric lock: maintain ≥20mm clearance
  • Mount main unit 300-800mm above ground with secure fixing points
Cable Management
Use separate PVC pipes for motor/power cables and control cables to ensure proper operation and protection.
Mounting Brackets
For secure installation, use expansion screws to fix mounting brackets firmly in place.
