Vertical Waterproof Tripod Turnstile Gate Mechanism with RFID Card Reader
Automatic Waterproof Semi-Automatic Mechanism RFID Card Reader Vertical Three Roller Gate
Our Security Systems Tripod Turnstile Gate provides a compact and cost-effective entrance solution designed for smooth, silent operation that reduces power consumption, wear and tear. Ideal for areas with high traffic volume.
This 304 stainless steel compact version offers high operating reliability in a small footprint, making it perfect for sites where space is limited. The system allows entry of one person at a time upon receiving a signal from the access control system or push button. Electronic controls manage entry from different directions, with a default locked mechanism until valid authorization is received. The mechanism can be adjusted for one-side free passage, and in emergencies, the horizontal arm drops to allow free passage.
Technical Specifications
| Description |
Parameters |
| Arm Length |
500mm |
| Lane Width |
600mm |
| Material |
SS304 |
| Material thickness |
1.2mm |
| IP Rate |
IP44 |
| Passing Speed |
30 persons/min |
| Power supply |
AC100V~240V, DC24V |
| Control device |
Solenoids |
| Power Consumption |
40W |
| Opening time |
0.5s |
| Housing size |
40x28x98cm |
| Working temperature |
-20°C~+60°C |
| Humidity |
≤90% coagulation free |
| Net Weight |
18KGS |
| Gross weight with cartoon |
20KGS |
Features & Functions
Most compact and cost-effective entrance solution
Brushed stainless steel body - robust, rigid, anti-rust and durable
Ideal for both indoor and outdoor applications
Integrates with any access control system (RFID reader, push button, fingerprint, face recognition)
Emergency power failure mode - horizontal arm drops for free passage
Suitable for high traffic areas
Smooth operation with high dependability and fast response
Anti-breakthrough function - locked until opening signal received
Unique marquee light - fashionable, beautiful and generous
Automatic reset function - cancels authority if user fails to pass within prescribed time

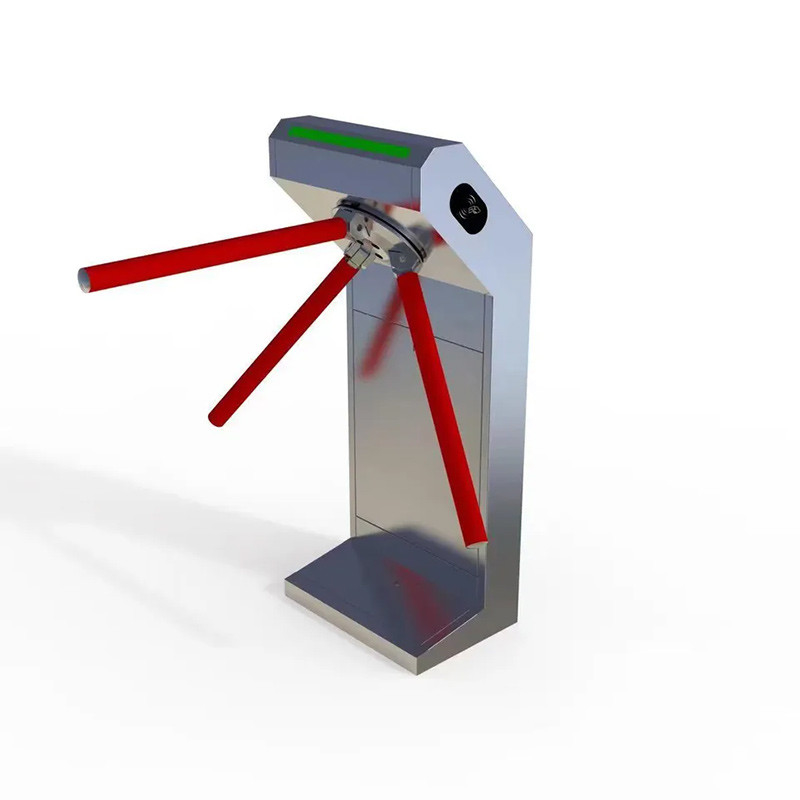

Product Image
Product Applications
Industrial facilities, Enterprises, Residential gardens, Public parks, Amusement parks, Entertainment centers, Office buildings, Exhibition centers, Airports, Seaports, Railways, Ski resorts, Schools, Museums, Shops, Supermarkets, and more.
Our Advantages
20+ years OEM/ODM experience in access control turnstiles, barriers, and road blockers
Prompt delivery with standard model stock availability
OEM/ODM orders accepted to meet client requirements
Trial orders accepted for sample testing before bulk orders
Online technical support for carefree partnership
Multiple transportation options - sea, air, or express shipping
Factory visits welcome on working days
