AC Motor Automatic Sliding Gate Operator Wifi Mobile Mini App Control
  • AC Motor Automatic Sliding Gate Operator Wifi Mobile Mini App Control
  • AC Motor Automatic Sliding Gate Operator Wifi Mobile Mini App Control
  • AC Motor Automatic Sliding Gate Operator Wifi Mobile Mini App Control

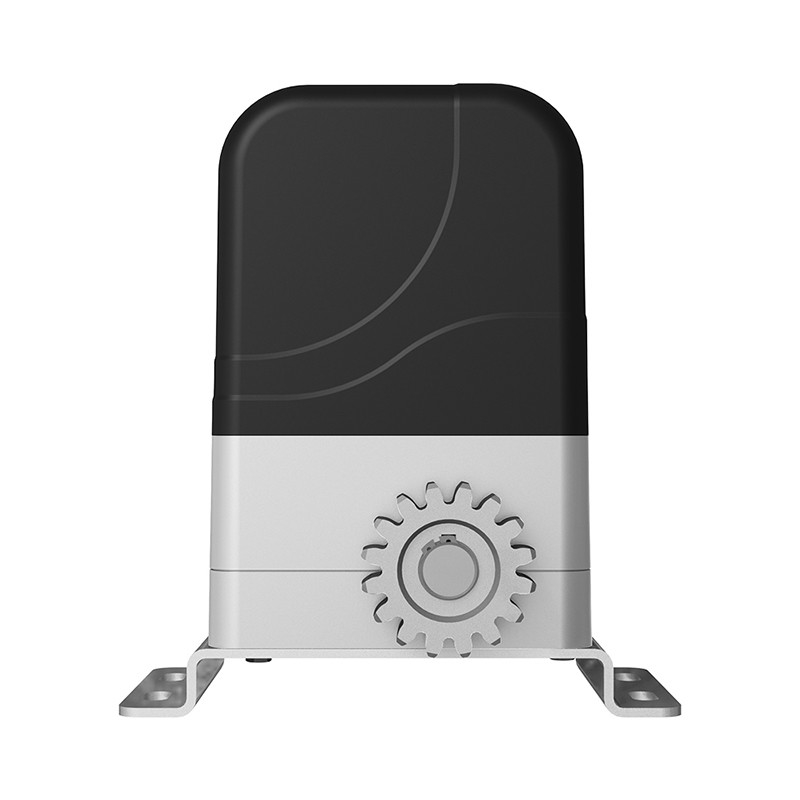

AC Motor Automatic Sliding Gate Operator Wifi Mobile Mini App Control

AC Motor Automatic Sliding Gate Operator Wifi Mobile Mini App Control

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number PYM-X2208
Product Details
Max Loading Weight:
300 Kg
Power Supply:
AC100V~120V， AC200V~240V
Shell:
Plastic
Rated Power:
130W
Gear Modulus:
M=4
Open/close Speed:
12m/min
Highlight:

AC Motor Sliding Gate Operator

,

Residential Sliding Gate Operator

,

App Control Automatic Slide Gate Opener

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T, Western Union,
Supply Ability
5,000 pcs per month
Product Description
AC Motor Automatic Sliding Gate Operator with WiFi Mobile App Control
Residential 300kg AC Motor WiFi Mobile Mini App Control Automatic Slide Gate Opener
Main Functions & Features
  • Fully integrated electrical mechanical system (racks not included)
  • Control board interface for optional impact-proof infrared photocells
  • Compatible with flashing lights, keypads, electric locks, and other accessories
  • Automatic delayed closing function
  • Adjustable resistance sensitivity
  • Auto stop and reverse when obstacles are detected
  • Optional wireless or wired remote control
  • Easy installation and low maintenance requirements
  • Quick selection for gate open/close direction
  • Emergency release key for power failure situations
  • Soft start and soft stop operation
  • Pedestrian mode functionality
  • IP44 protection class rating
  • Dimensions: 24cm × 16cm × 27.3cm (L×W×H)
  • Remote control distance: 30-50m in open areas
  • Output gear module: M=4
  • Output gear number: Z=16
Technical Specifications
Model PYM X2208
Power Supply AC 220V±10%, 50Hz; AC 110V±10%, 60Hz
Max Loading Weight 300kg
Rated Power 130W
Gear Modulus M=4
Open/Close Speed 12m/min
Electric Motor 220VAC/110VAC
Output Speed 50r/min±10%
Output Torque 12 N.m
Limit Switch Magnet
Working Temperature -20°C to +55°C
Standard Kit Includes
  • 1 motor
  • 2 remote controls
  • 2 manual keys
  • 1 built-in control panel
  • 2 magnets
  • Installation screws
  • User manual
AC Motor Automatic Sliding Gate Operator Wifi Mobile Mini App Control 0
Packaging Information
  • 1 set per carton (32cm × 24cm × 30cm)
  • Weight: approximately 9kg per carton
  • 40 cartons per cubic meter
  • 1200 sets per 20-foot container
AC Motor Automatic Sliding Gate Operator Wifi Mobile Mini App Control 1
Installation Procedures
Important Note: Before motor installation, the sliding gate must be properly installed with hardware kit. If you require any gate hardware kit, please contact us.
  1. The limit default setting is for gate in closed position. Before installation, ensure the gate is completely closed.
  2. Prepare one or more conduits for electrical cables. Cable conduits must pass through the hole in the base plate.
  3. Pour concrete and before it begins to harden, verify it is parallel to the gate leaf and perfectly level.
  4. Set the four anchor bolts into the concrete during pouring. Ensure bolt positions align with mounting holes on the base plate before concrete hardens.
  5. Place the opener onto the base plate. Verify it is perfectly parallel to the gate, then temporarily secure with the four supplied bolts and washers. Further adjustment will be required during rack installation.
