Full Height Turnstile
>
|
|
| Place of Origin | Shenzhen, China. |
| Brand Name | SINOMATIC |
| Certification | CE/ ISO |
| Model Number | SN-FHT01-MS |

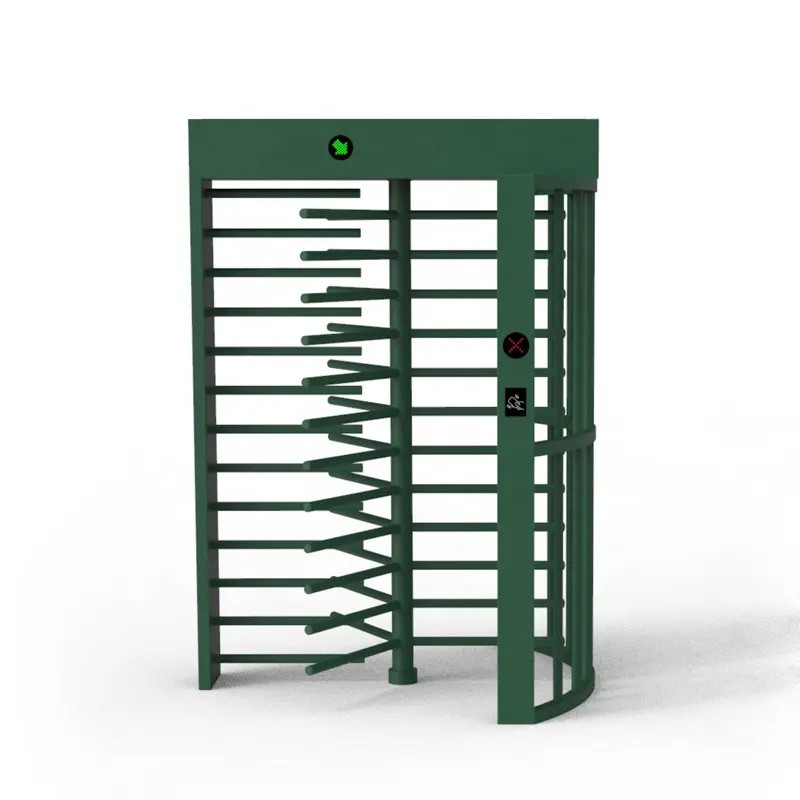

Hot Dip Galvanizing Antirust RFID Reader Fingerprint Face Recognition Fail-safe Full Height Turnstile
PRODUCT DESCRIPTION
Full Height Turnstile developed by SINOMATIC is available for any area which needs a high level of security without persons to monitor. The machine is well designed to be rustproof, durable and able to resist external destroy.
Full Height Turnstile is normally designed to be Automatic type, Semi-Automatic Type and Mechanical type. Full Height Turnstile with 3-arm obstacle: the center rotor rotates 120 degrees per time, and it offers a comfortable space for users. Full Height Turnstile with 4-arm obstacle: the center rotor rotates 90 degrees per time, and it offers a higher level of security but less space for users.
Full height turnstile usually works with push button, RFID reader, fingerprint reader and face recognition etc to realize multiple access control functions to meet the requirements of customers.
TECHNICIAL SPECIFICATIONS
| ITEM | SPECIFICATIONS |
|
Power voltage
|
AC100V~240V
|
|
Arm turn degree
|
120 degree or 90 degree rotation arms
|
|
Driving voltage
|
DC24V
|
|
Operation condition
|
-20℃~60℃
|
|
Material
|
Mild steel /304 drawing stainless steel
|
|
Material thickness
|
1.5mm
|
|
Humidity
|
≤95%;None-condensation
|
|
Turn direction
|
bidirectional or unidirectional(Optional)
|
|
Input
|
Open singal or 12V pulse>100ms
|
|
Work environment
|
Indoor/Outdoor
|
|
Working Current
|
≤2000mA
|
|
IP level
|
IP54
|
|
Standard barrier length
|
550mm
|
|
Channel width
|
600mm
|
|
Pass speed
|
≤35 person/minute
|
|
Service life
|
≥5 million times
|
MAIN FUNCTION AND FEATURES
1. Full Height Turnstiles is often used for high-security access control solutions.
2. The body material is mild steel with painting(color optional) 304stainless steel which is anti-rust and durable and
has high resistance.
3. Full Height Pedestrian Turnstiles are ideal for both indoor and outdoor settings.
4. The turnstile gate will unlock(default) or lock (optional) automatically when the power is off, Very safe to meet
fire-control passage requirements.
5. With anti-reverse function, stop reversed direction.
6. The mechanism is equipped with a high-quality hydraulic damper With this device, there is very low noise when running
and it is more smooth.
7. Self-test function, when power is on, the gate system will restore automatically.
8. The high-security device, The full height turnstiles is the high-security gate compared with other types of turnstiles.
9. Single directional or Bi-directional is optional.
10. With LEDdirectional indicator light on both entry and exit.
11. Standard connection interface which is easy Compatible with all third-party access control systems.
12. The size/design of the gate can be customized based on the client`s drawing.
13. Optional function Can be controlled by a remote controller and managed by a computer directly if it comes with an
access control system.
14. Can be adjusted to meet the requirements in different places.
