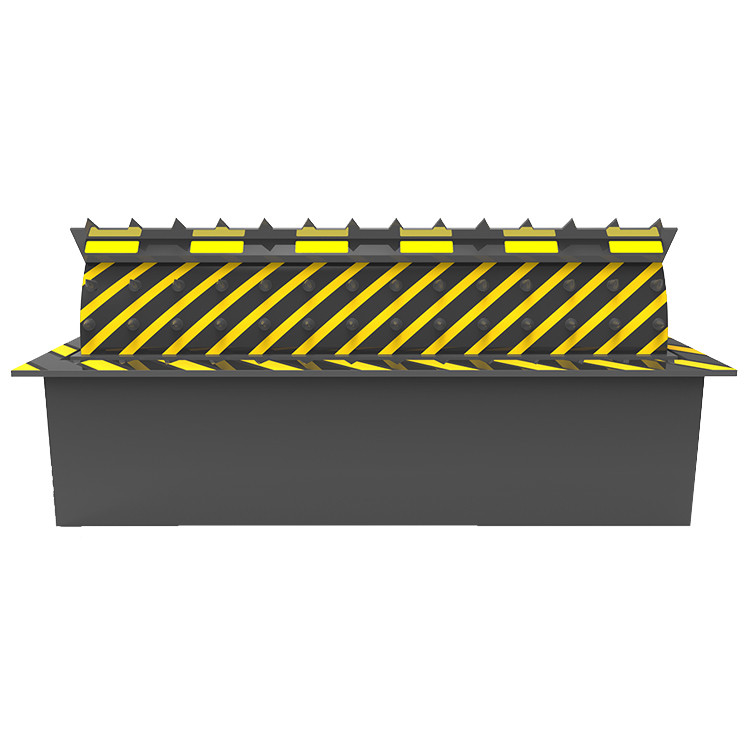

Galvanized Hydraulic Road Blocker Anti Terrorist Full Automatic For Car Park

Hydraulic Automatic Military Anti-Terrorism Standard Remote Control Road Blocker​

Road Blockers are heavy duty and anti-terrorist barriers that are installed at high-sensitive areas where unauthorized vehicle have strict restrictions for access. They are installed with an intention to block the roadways for vehicle passage and to obstruct the vehicle based attacks.

The road blockers are mounted by excavating the ground surface and installing a shallow foundation. They can be lowered to clear the ground surface for vehicle movement and raised at an inclination to act as a barrier. The barriers have manual as well as automatic hydraulic raising and lowering operation. The road blockers can be crash rated and certified according to its capability of stopping and destroying the vehicles after the attack. These are installed at high security locations including military areas, embassies, government offices, etc.

When the road block is lowered or in a closed position the vehicles can have smooth access to the premises without any hindrance. Due to the flexibility of this high security access blocking solution, it is an ideal product for all critical infrastructure applications such as ministries, defense sites, nuclear power plants etc.

Our advantage

Road blockers efficiently protect and block the entry. Durable construction stop 7,5 tone truck or heavier which is driving at speed 80km/h. Security level can be equal to K8, K12, PAS68 standard.

Thanks to 15 years of experience we export automatic road barrier systems to more than 50 countries. Our knowledge, experience and high quality of road blockades gains customer satisfaction worldwide.

PRODUCT SPECIFICATIONS

Standard Road blocker size: (mm)

L3000*W1000*H760,Rising height:500(Customized)

L3500*W1000*H760,Rising height:500(Customized)

L4000*W1000*H760,Rising height:500(Customized)

L4500*W1000*H760,Rising height:500(Customized)

L5000*W1000*H760,Rising height:500(Customized)

L5500*W1000*H760,Rising height:500(Customized)

L6000*W1000*H760,Rising height:500(Customized)

MAIN FEATURES

1, control system: hydraulic (liquid crystal display,english,russian,turkish,spanish,different language menu,

the language is customized).

2, power supply voltage: 380V (control voltage 24V).

3. System Power: 3.7KW

4, pressure capacity: Max. 120 tons of container trucks.

5, Anti-collision: K12 (equivalent to 120KM / hour impact, the car is blocked, the equipment works as usual)

6, protection level: IP68 (dustproof, waterproof)

7, open time: 3~6S (adjustable).

8, closing time: 3~6S (adjustable).

9, communication: RS485 ≤ 1200M.

10, the degree of elevation: 450mm-800mm.

11, working temperature: -45 ° C --- 75 ° C.

12, Storage environment: -10 °C - 75 °C, rainproof, moisture proof and dustproof.

13. Can be manually raised and fall down if power cut.

14. Gang-control interface

15. Reliable structure, heavy duty load, smooth action, low noise.

16. In rising and falling, reversible operation is available .

17. Hydraulic drive comes with hydraulic lock

18. PLC programming command control system

19. LCD display ,Both Chinese and English menu.

20. PLC built-in encryption system

21. Double dynamic double oil pump 2.3ML/time

22. Hydraulic oil hose:PT international interface ,1/2 Double wire high pressure hose
