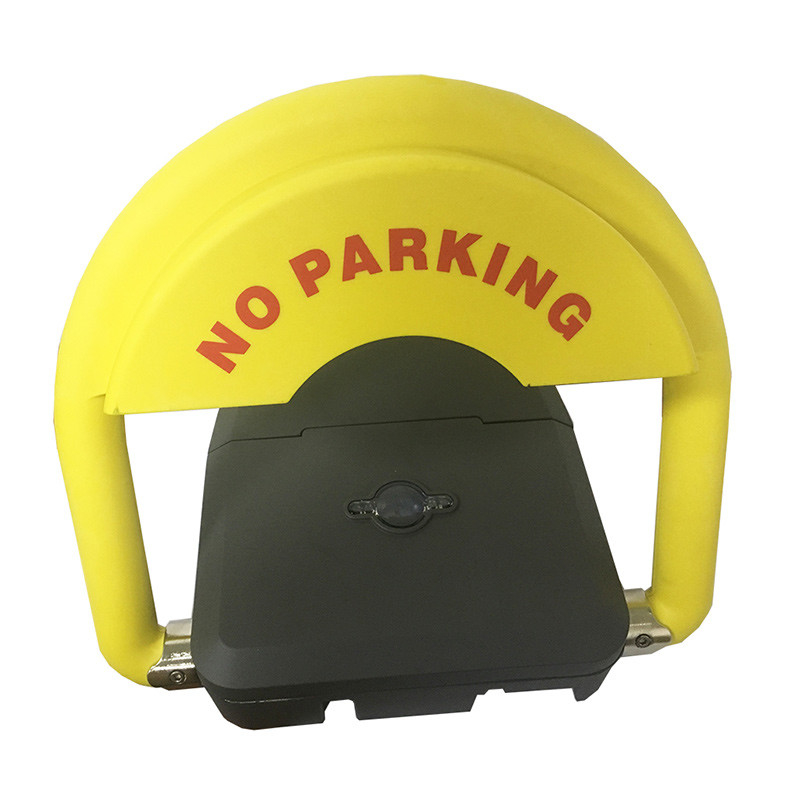

Rechargeable Battery No Parking Car Lock IP68 Waterproof Automatic Vehicle Control
  • Rechargeable Battery No Parking Car Lock IP68 Waterproof Automatic Vehicle Control
  • Rechargeable Battery No Parking Car Lock IP68 Waterproof Automatic Vehicle Control
  • Rechargeable Battery No Parking Car Lock IP68 Waterproof Automatic Vehicle Control
Rechargeable Battery No Parking Car Lock IP68 Waterproof Automatic Vehicle Control

Rechargeable Battery No Parking Car Lock IP68 Waterproof Automatic Vehicle Control

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-PL-01
Product Details
Battery Voltage:
DC12V, 7Ah
Overall Dimension:
357*370*82.5 Mm
Operational Current:
0.4A
Application:
Indoor/outdoor
Vertical Position Height:
340 MM
Horizontal Position Height:
82.5 MM
Highlight:

Waterproof No Parking Car Lock

,

No Parking Car Lock IP68

,

Rechargeable Battery Car Parking Lock

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
3-5 working days after payment received
Payment Terms
T/T, Western Union, , , L/C, D/A, D/P
Supply Ability
3,000 pcs per month
Product Description
Rechargeable Battery No Parking Car Lock IP68 Waterproof Automatic Vehicle Control
IP68 Waterproof Automatic Vehicle Control Electronic Rechargeable Battery No Parking Car Lock
This parking lock is our company's latest innovation, featuring a high-gloss varnish finish with excellent color retention. Designed with an attractive, modern structure, it offers user-friendly operation, diverse functions, and safe, durable performance. Ideal for parking management in high-end residential areas, shopping malls, hotels, airports, and other commercial locations.
Product Specifications
Item Specifications
Overall Dimension 357*370*82.5mm
Working Temperature -30°C~60°C
Working Voltage DC12V
Battery Voltage DC12V, 7Ah
Operational Current 0.4A
Running Time 4-6s
Remote Control Distance ≤15m
Vertical Position Height 340mm
Horizontal Position Height 82.5mm
Maximum Bearing Weight 5 Tons
Protection Grade IP68 (the highest level in Ingress Protection)
Functions and Features
  • Energy-saving: Features high-quality Chinese battery with power lasting up to six months
  • Hermetic: Tightly sealed cabinet with IP68 protection grade for waterproof and dustproof performance
  • Auto-repositioning: Sway arm maintains vertical position against external force; automatically returns to vertical unless controlled remotely
  • Noise-free: Motor bearing transmission design ensures quiet operation and extends battery and motor lifespan
  • Easy Installation: Four pre-drilled holes at cabinet bottom for simple setup
  • Safe: Anti-disconnect power connection design prevents short circuits from battery misplacement
  • Durable: Die-cast zinc alloy cabinet with 5-ton load capacity; varnish coating provides weather resistance; fiber-reinforced nylon sway arm withstands vehicle pressure
  • Emergency Manual: Manual operation available during power failure or system malfunction
  • Dark Indicator: Red illumination at both ends alerts pedestrians in low-light conditions
  • Charge Reminder: Internal warning system alerts when battery requires recharging
  • Burglarproof: Internal mounting bolts require key access for security
  • Waterproof: Sealed control system and external connections for complete water protection
Technical Specifications
No. Parameter Value
1 Voltage DC12V
2 Battery DC12, 7Ah
3 Dimension 357×370×82.5mm
4 Extended Height 340mm
5 Remote Distance ≤30M
6 Working Temperature -35℃~+55℃
7 Current 0.4A
8 Weight Capacity 5t
9 IP Class IP68
10 Running Time 4~6s
11 Protection Level IP68
12 Battery Life 4 to 6 months
13 Battery Type Rechargeable
14 Packing Size 550*120*100 mm
15 Weight 8.5kg
16 Thickness 3.5MM
Product Installation
Installation Spot: Position the parking lock at the center of the parking space.
Installation Ground: Install on dry, smooth concrete ground free from radio signal interference.
Installation Steps
  • Locking and unlocking procedures
  • Battery insertion and removal methods
  • Drill three 10mm diameter holes, 50mm deep
  • Place nuts in position
  • Position the parking lock
  • Fasten the nuts securely
  • Install the cover
Rechargeable Battery No Parking Car Lock IP68 Waterproof Automatic Vehicle Control 0
Ordering Information
MOQ 1 set
Port Shenzhen, Guangzhou and others
Payment Terms T/T; Western Union; Credit Card; Ali Pay etc.
Production Capacity 3000 Sets/Month
Lead Time 5 days
Package Carton Box
Frequently Asked Questions
How many models of parking lock do you have?
New Zinc-alloy Parking Lock model, Solar Parking Lock model, Common parking lock.
How many remote controls are in each parking lock?
2 pieces.
What is the waterproof grade?
IP68.
Can express delivery ship the parking lock?
Yes, but batteries must be removed due to shipping restrictions.
What's your warranty?
1 year warranty.
