Tripod Turnstile Gate
>
|
| Place of Origin | Shenzhen, China. |
| Brand Name | SINOMATIC |
| Certification | CE/ ISO |
| Model Number | SN-TT02 |

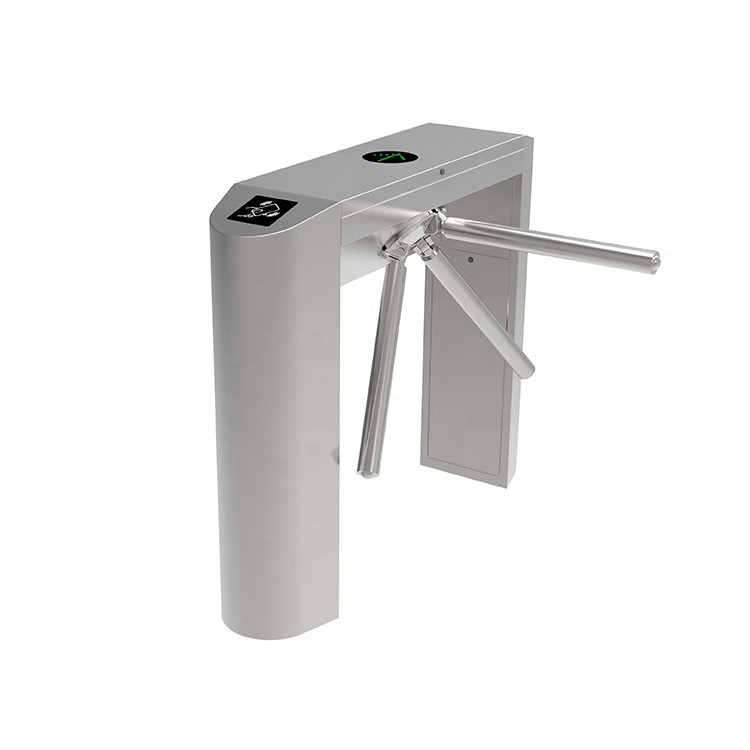

Industrial Standard SUS304 Stainless Steel Anti-Rust Mechanism Tripod Turnstile Gate
PRODUCT DESCRIPTION
The turnstile provides a basic tripod to control access smoothly and effectively by basic operation, and also prevent illegal in and out.
The turnstile is well in design, rustproof, durable and can resist external destroy.
According to different machine centers, tripod turnstile can be divided into fully automatic tripod turnstile and semi-automatic tripod turnstile.
Semi-automatic product, the arm can drop automatically when it is power off and when power on, the arm needed to be raised by hand.
PRODUCT ADVANTAGES
. Robustness
. Long-life mechanical construction
. Housing in superior-quality stainless steel
. Security
. Arms cannot be removed without special tools
. Mechanism cannot be forced
. Economy
. Simple to install
. Flexibility
. Removable end covers for easy integration of any type of access control device
. Numerous configurations covering all cases of pedestrian access control
MAIN FUNCTIONS AND FEATURES
1. Mechanical drive unit eliminate the use of expensive electric motor and reduce maintenance cost.
2. Lock mechanism is based on heavy duty solenoid to ensure longer life time and lesser maintenance.
3. Turnstile can be configured to be bi-directional or uni-directional.
4. Built in acrylic or plastic plate for easy integration with other devices.
5. If arm rotate more than half, It will auto-rotate to the next idle position If arm rotated less than half, it will
auto-rotate back to the current idle position.
6. Built in adjustable tension spring to control auto-rotate force of arm and minimize auto-rotation.
7. DC operation, built in circuit breaker to protect against mild electric surge.
8. Anti-tailgating. Smart lock mechanism uses limit switch to detect rotation and effectively re-lock back
after 1 person pass through. Also support time delay 5 sec, 10 sec, 15 sec and 60 sec.
9. During power failure, arm will drop automatically allowing free pass through.
10. Internal parts inside the housing are locked via a key to avoid tampering.
11. Built in LED to indicate direction.
12. Once unlock, arm just need to be pushed lightly to rotate therefore even elderly or children are able to use the turnstile.
TECHNICIAL PARAMETERS
Model | SN-TT02 |
Cabinet Material | SS304 |
Arm material | SS304 |
Production Process | CNC Laser Cutting |
Size | 1200*280*980mm (can be customized) |
Power input | AC100-240V,50/60HZ |
Operation voltage | DC24V, 3A, Power: 40W |
Electromagentic | Duty Cycle 100% |
Barrier Arm Lenght | 510mm |
Arm Max Applied Force | 80Kg |
Arm Operation Driving Force | 3Kg |
Passage direction | Single directional/Bi-directional(Optional) |
Throughput Rate | 30-35 persons/minute |
Operating time | 0.2 seconds |
Automatic Reset Function | Automatically locked within set time(Adjustable) |
Operation Humidity | 0~95%(No Freezing) |
Operation Temperature | -15℃~+60℃ |
Operation Eenvironment | Indoor,Outdoor(Shelter) |
Protection Level | IP54 |
Communication interface | TCP/IP (optional) |
MCBF | 5,000,000 Cycles |
PRODUCT DIMENSION
