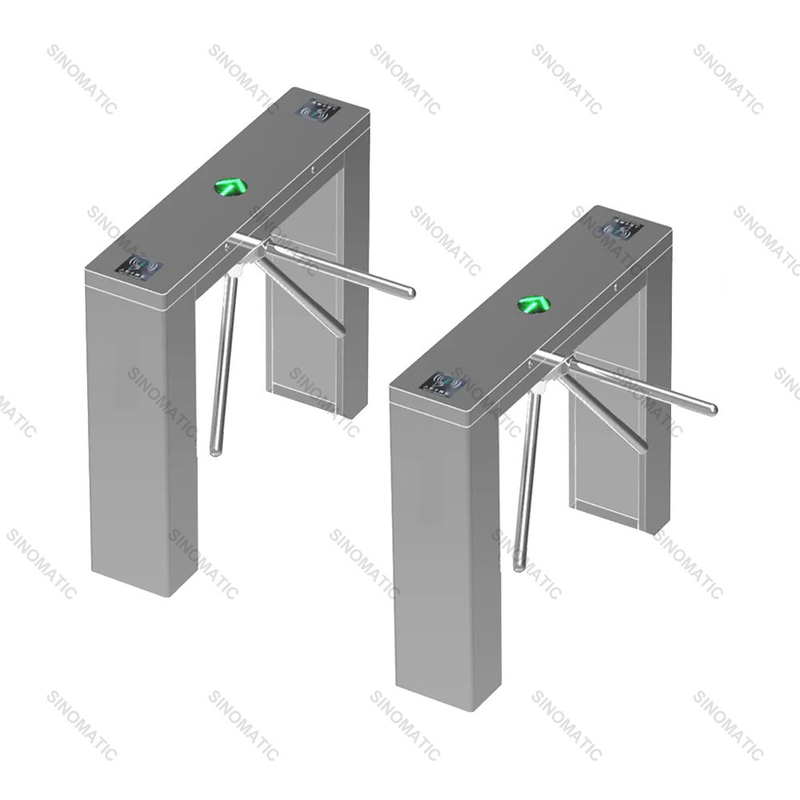

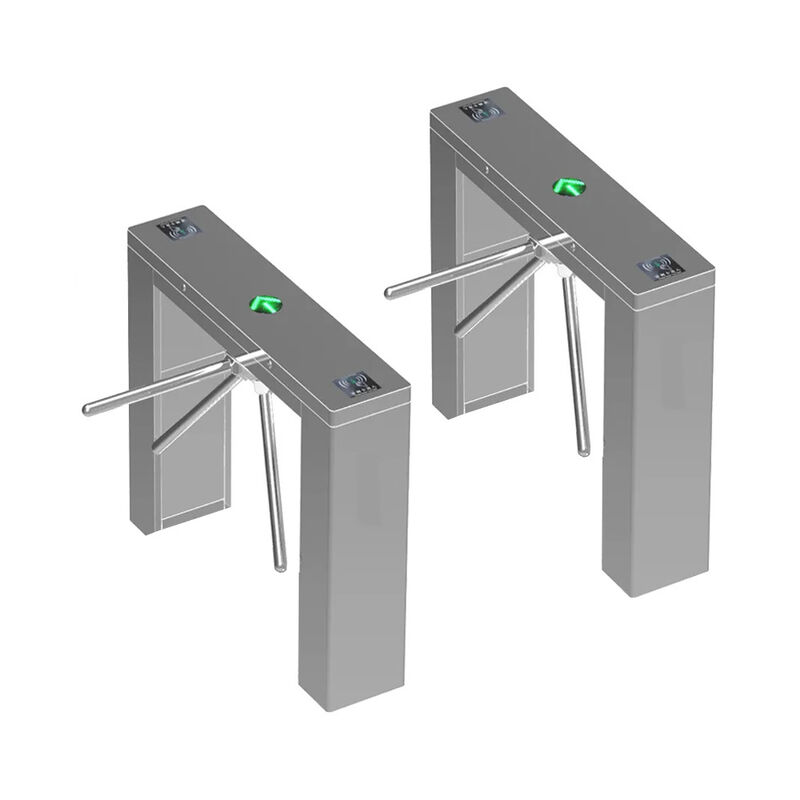

Entrance Control Three Arm Turnstile SUS304 Automatic Tripod Turnstile Gate
  • Entrance Control Three Arm Turnstile SUS304 Automatic Tripod Turnstile Gate
  • Entrance Control Three Arm Turnstile SUS304 Automatic Tripod Turnstile Gate

Entrance Control Three Arm Turnstile SUS304 Automatic Tripod Turnstile Gate

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-TT-E02
Product Details
Power Supply:
AC100~240V, DC24V
Max Power Consumption:
40W
Lenght:
100cm
Width:
28cm
Height:
98cm
Package:
Carton Box
High Light:

Entrance Control Three Arm Turnstile

,

SUS304 Three Arm Turnstile

,

Automatic Tripod Turnstile Gate

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
USD 150 to USD 180 / set
Packaging Details
Carton
Delivery Time
5-10 working days after payment received
Payment Terms
T/T, Western Union, MoneyGram, L/C, D/A, D/P
Supply Ability
500 pcs per month
Product Description

Entrance Control Three Arm Rotated SUS304 Barrier and Cabinet Material Automatic Tripod Turnstile



PRODUCT DESCRIPTION



This bridge style turnstile is our latest simple tripod turnstile gate, which has a simple structure and is easy to install. The cabinet design is relatively compact, with a length of only one meter and two legs that can be disassembled and packaged, greatly reducing transportation costs. At the same time, sufficient space is reserved in the chassis for system integrator or user to install access control devices.



TECHNICIAL SPECIFICATIONS



Description Parameters
Type Bridge style
Lane Width 600mm
Cabinet Lenght 1000mm
Cabinet Width 280mm
Cabinet Height 980mm
IP IP44
Pass Speed 30 persons/min
Power supply AC100V~240V, DC24V
Control Mode Solenoids
Power Consumption 40W
Opening time 0.5s
Working temperature -20°C~+60°C
Humidity ≤90% coagulation free
Net Weight 20KGS
Gross weight with cartoon 23KGS



FEATURES & FUNCTIONS



1. This Tripod turnstiles is the most compact and cost-effective entrance solution.
2. The body is made of 304 stainless steel which is robust, rigid, anti-rust and durable.
3. It’s is ideal for both indoor and outdoor applications.
4. It can be integrated with any kind of access control system (e.g.: RFID reader, Push button, Fingerprint and Face recognition device).
5. In case of power failure, the horizontal arm will drop down to make in and out free.
6. It is suitable for areas with high traffic.

7. The whole system runs smoothly, high operation dependability and fast response.
8. Anti-breakthrough function. The turnstile is locked until opening signal received.
9. LED light indicator
10. Automatic reset function. If the user fail to pass within the prescribed time, the system will cancel the authority of the current user automatically.



PRODUCCT DIMENSION

Entrance Control Three Arm Turnstile SUS304 Automatic Tripod Turnstile Gate 0



PRODUCT APPLICATION



Industrial, Enterprises, Living garden, Public park, Amusement park, Entertainment centers, Buildings offices, Exhibition centers, Airports, Seaports, Railways, Ski resorts, Schools, Museums, Shops, Supermarkets,and so on.



OUR ADVANTAGES



1. Our Factory has more than 20 years OEM/ODM experiences in the line of access control turnstile and barrier and road blocker.
2. Prompt delivery time. Usually we keep stock of standard model which ensure the prompt delivery.
3. We accept OEM/ODM orders to meet the requirements of clients.
4. Trial order is acceptable. Clients can buy sample and test it before bulk order.

5. Online technical support makes it carefree to be our business partner.

6. A variety of transportation for your choice. Sea shipment, air cargo or express, depends on your demand.

7. Factory can be visited on working days. Clients are warmly welcome to visit our factory.
