Full Height Turnstile Mechanism Design Electroplated Oxidized Anti Rust Semi Automatic
  • Full Height Turnstile Mechanism Design Electroplated Oxidized Anti Rust Semi Automatic
  • Full Height Turnstile Mechanism Design Electroplated Oxidized Anti Rust Semi Automatic
Full Height Turnstile Mechanism Design Electroplated Oxidized Anti Rust Semi Automatic

Full Height Turnstile Mechanism Design Electroplated Oxidized Anti Rust Semi Automatic

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number FH-SM-M1-PLUS
Product Details
Surface Treatment:
Electroplated And Oxidized
Color:
Blue
Power Supply:
AC100~240V, DC24V
Working Temperature:
-25℃-75℃
Direction:
Bi-directional
Rotation Degree:
120 Or 90 Degree(to Be Clarified)
Highlight:

Full Height Turnstile Mechanism Design

,

Electroplated Turnstile Mechanism Design

,

Oxidized Full Height Turnstile Mechanism

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
Negotiable
Packaging Details
Carton box/ Plywood box/Pallet
Delivery Time
5 to 7 days after payment received
Payment Terms
L/C,D/A,D/P,T/T,Western Union,
Supply Ability
5,00 pcs per month
Product Description

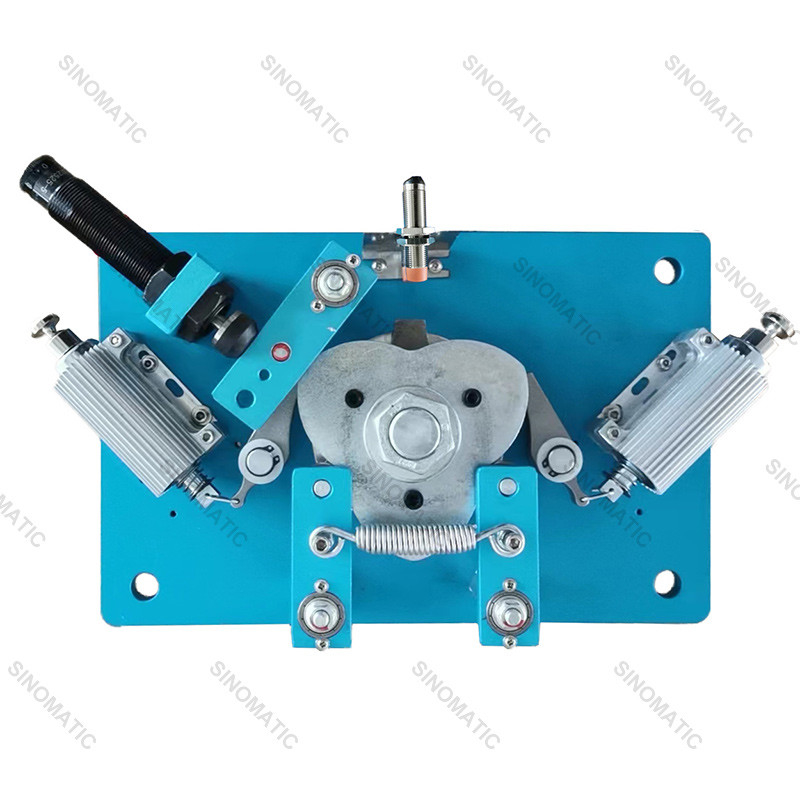

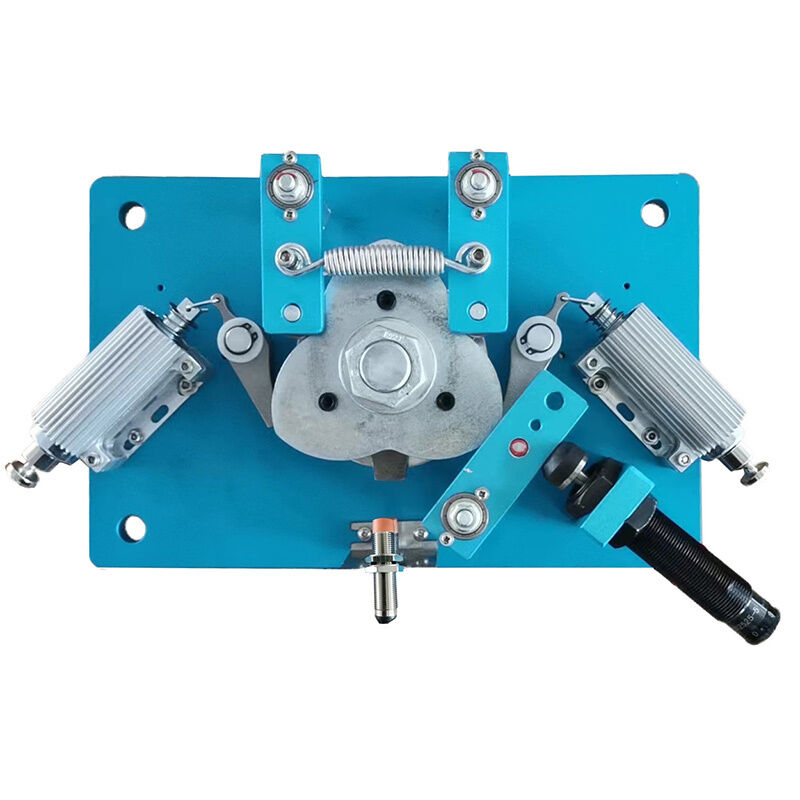

Full Height Turnstile Mechanism Design
Electroplated Oxidized Anti-Rust Semi-Automatic Turnstile Mechanism
Product Overview
This upgraded model features enhanced durability and performance with the following advantages:
  • Electroplated and oxidized main body for superior anti-rust protection and aesthetic appeal
  • Mold-designed vulnerable parts for reduced wear and enhanced rust resistance
  • Aluminum alloy heat sink solenoids for effective heat dissipation and extended service life
Technical Specifications
Power Input AC100~240V, DC24V
Solenoid With radiator
Drive Type Semi-automatic
Material Steel
Passing Speed 30 person/min, adjustable
Direction Bi-directional
Working Temperature -25℃-75℃
Communication Signal Dry contact (RS485 Optional)
MTBF More than 10 million times
Relative Humidity <95%
Key Features & Functions
  • Automatic regulated hydraulic buffer device for low noise and impact operation
  • Mechanical drive unit with solenoid locking mechanism eliminates expensive electric motors and reduces maintenance costs
  • Intelligent rotation control: auto-rotates to next idle position if rotated more than half, returns to current position if rotated less than half
  • Built-in adjustable tensioner for controlled rotation force - easy operation for all users including elderly and children
  • Configurable bi-directional or uni-directional operation with tamper-resistant housing lock
  • Innovative mounting surface design for simple and convenient installation
  • Compatible with various access control devices: IC/ID card readers, bar-code scanners, fingerprint systems (access controller required)
  • Automatic reset function cancels user authority if passage isn't completed within preset time (default 5 seconds)
Packing Information
Full Height Turnstile Mechanism Design Electroplated Oxidized Anti Rust Semi Automatic 0
