Ticket System Tripod Turnstile Gate Barcode RFID Fingerprint Access Control
  • Ticket System Tripod Turnstile Gate Barcode RFID Fingerprint Access Control
  • Ticket System Tripod Turnstile Gate Barcode RFID Fingerprint Access Control
  • Ticket System Tripod Turnstile Gate Barcode RFID Fingerprint Access Control
Ticket System Tripod Turnstile Gate Barcode RFID Fingerprint Access Control

Ticket System Tripod Turnstile Gate Barcode RFID Fingerprint Access Control

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-TT02
Product Details
Housing Material:
SS304 Or SS316
Application:
Indoor/outdoor
Control Voltage:
24V
Passing Rate:
30 ~35 Person/minute
Power Supply:
220V/110V
Base:
Anti-skip Aluminum Plate
Highlight:

Lobby SS Tripod Turnstile Gate

,

RFID Control Tripod Turnstile Gate

,

Hotel Lobby Tripod Turnstile

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
L/C, D/A, D/P, T/T, Western Union,
Supply Ability
1,000 pcs per month
Product Description

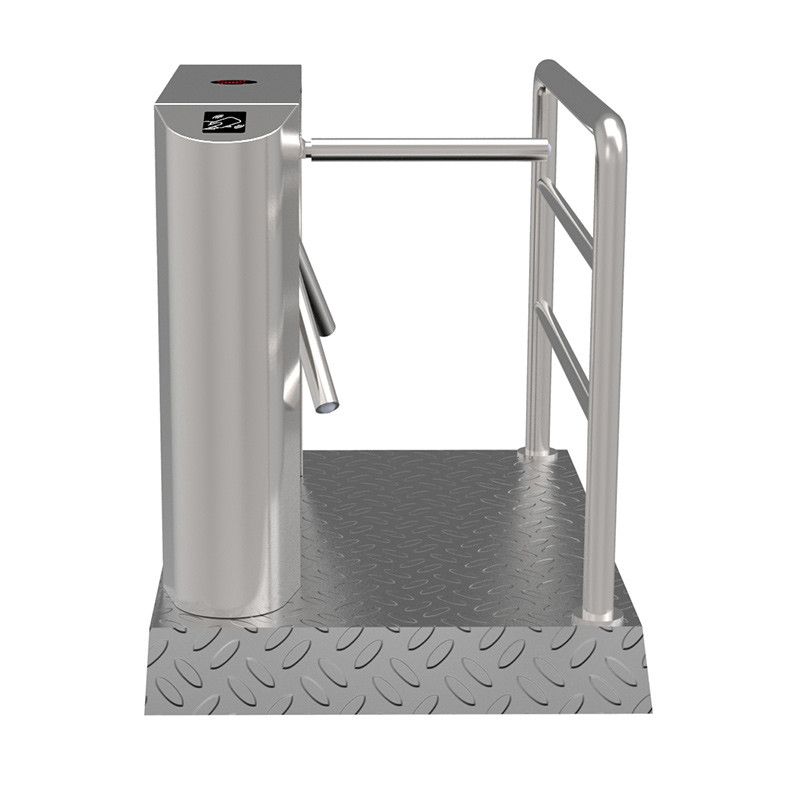

Ticket System Tripod Turnstile Gate with Barcode RFID Fingerprint Access Control
Advanced tripod turnstile gate featuring integrated barcode, RFID card, fingerprint, and face recognition access control systems for secure pedestrian management.
Product Advantages
  • Robustness: Long-life mechanical construction with superior-quality stainless steel housing
  • Security: Arms cannot be removed without special tools; mechanism cannot be forced
  • Economy: Simple to install and maintain
  • Flexibility: Removable end covers for easy integration of any access control device
  • Versatility: Numerous configurations covering all pedestrian access control scenarios
Main Functions and Features
  • Mechanical drive unit eliminates expensive electric motors and reduces maintenance costs
  • Heavy-duty solenoid lock mechanism ensures longer lifespan and minimal maintenance
  • Configurable as bi-directional or uni-directional operation
  • Built-in acrylic or plastic plate for easy integration with other devices
  • Automatic arm rotation with intelligent positioning system
  • Adjustable tension spring to control auto-rotation force
  • DC operation with built-in circuit breaker protection
  • Anti-tailgating with smart lock mechanism and configurable time delays (5, 10, 15, 60 seconds)
  • Automatic arm drop during power failure for free passage
  • Key-locked internal components to prevent tampering
  • Built-in LED direction indicators
  • Light-touch arm operation suitable for all users including elderly and children
Technical Parameters
Model SN-TT02
Cabinet Material SS304 Stainless Steel
Arm Material SS304 Stainless Steel
Production Process CNC Laser Cutting
Size 1200×280×980mm (customizable)
Power Input AC100-240V, 50/60HZ
Operation Voltage DC24V, 3A, 40W
Electromagnetic Duty Cycle 100%
Barrier Arm Length 510mm
Arm Max Applied Force 80Kg
Arm Operation Driving Force 3Kg
Passage Direction Single/Bi-directional (Optional)
Throughput Rate 30-35 persons/minute
Operating Time 0.2 seconds
Automatic Reset Function Automatically locked within set time (Adjustable)
Operation Humidity 0~95% (No Freezing)
Operation Temperature -15℃~+60℃
Operation Environment Indoor, Outdoor (Shelter)
Protection Level IP54
Communication Interface TCP/IP (optional)
MCBF 5,000,000 Cycles
Product Dimensions
Ticket System Tripod Turnstile Gate Barcode RFID Fingerprint Access Control 0
About Sinomatic
  1. Over 20 years of OEM/ODM experience in access control turnstiles and barriers
  2. Prompt delivery with standard model stock availability
  3. OEM/ODM orders accepted to meet client requirements
  4. Trial orders available for product testing before bulk orders
  5. Online technical support for business partners
  6. Multiple transportation options: sea shipment, air cargo, or express delivery
  7. Factory visits welcome on working days
