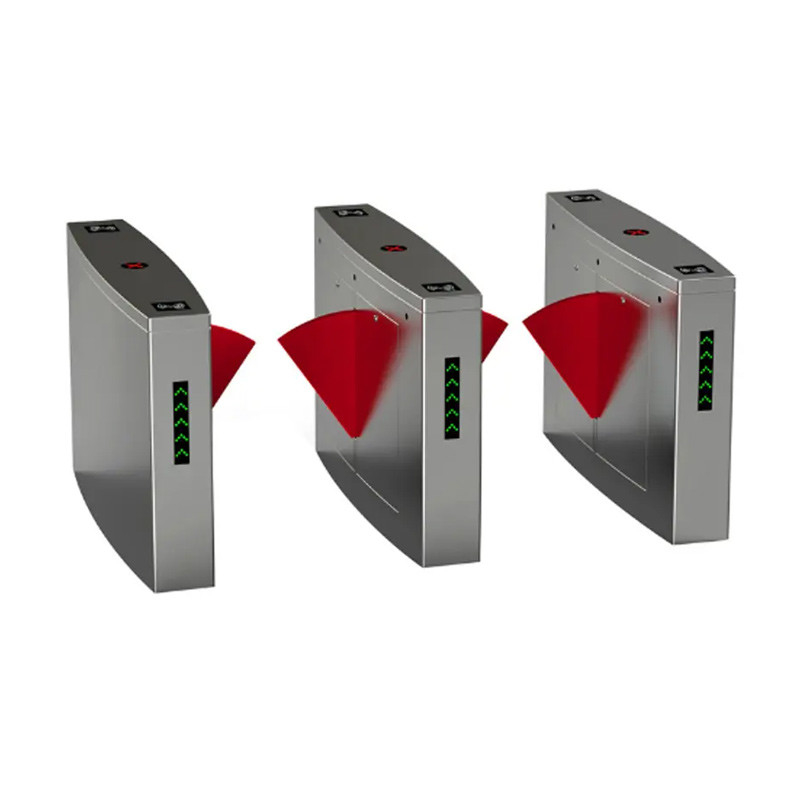

24V BLDC Motor Flap Turnstile Gate Professional Security Control System
  • 24V BLDC Motor Flap Turnstile Gate Professional Security Control System
  • 24V BLDC Motor Flap Turnstile Gate Professional Security Control System
  • 24V BLDC Motor Flap Turnstile Gate Professional Security Control System
24V BLDC Motor Flap Turnstile Gate Professional Security Control System

24V BLDC Motor Flap Turnstile Gate Professional Security Control System

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-FB01
Product Details
Passing Direction:
Single Directional / Bi-directional
Power Input:
AC100V~240V; DC24V
Light Indicator:
RBG Light
Housing Material:
SS304/SS316 Optional
Passing Speed:
30~35 Person/minute
IP Rate:
44
Highlight:

RS485 Flap Turnstile Gate

,

RS485 Flap Turnstile Barrier

,

BLDC Motor Flap Turnstile Barrier

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
L/C, D/A, D/P, T/T, Western Union, , Ali pay
Supply Ability
1,000pcs per month
Product Description
24V BLDC Motor Flap Turnstile Gate Professional Security Control System
Professional Security Control System 24V BLDC Motor Flap Turnstile
Product Overview
The Flap Barrier is engineered to deliver comprehensive access control and security management in public passageways. This system resolves security challenges while providing protection for organizational personnel and business assets. It facilitates controlled access for both public visitors and authorized personnel, making it ideal for venues requiring constant pedestrian flow while maintaining security integrity.
Applications
Flap Barrier systems are widely deployed in transportation hubs, corporate entrances, airports, and various public facilities. These automated gates function as emergency control devices, featuring dual-wing mechanisms that open automatically upon valid access card authentication and close securely after passage.
Key Features
  • Reliable mechanism with powerful BLDC gear motor ensures long-term maintenance-free operation
  • Integrated smart self-diagnostic system for proactive maintenance
  • Digital control of force and leaf speed with safety sensors prevents injury during unauthorized passage attempts
  • Advanced sensor system detects luggage passage and enables identification-free exit options
  • Elegant cabinets with integrated LED lighting displaying access status and card reader positioning
  • Uniform cabinet dimensions for both standard (550mm) and wide lane (900mm) configurations
  • Customizable housing design and top lid options available
  • Low power consumption for energy-efficient operation
  • Compatible with all major access control systems
  • Manual leaf opening capability during power failures (fail-safe mechanism)
Technical Specifications
Specification Details
Size 1200×300×980mm
Material 1.5mm SS304 Stainless Steel
Passage Direction Single Directional / Bi-directional
Pass Rate 30-35 persons/minute
Operating Time 0.2 seconds
Power Input AC100-240V, 50/60HZ
Working Humidity 30%~95%
Working Temperature -20℃ to +60℃
Communication Interface RS485, Dry contact
Infrared Sensor 4 pairs
MCBF 5,000,000 Cycles
Application Airports, Hotels, Government Halls, etc.
Main Functions & Features
  • Fault detection and alarm functions for simplified maintenance
  • Programmable operation via built-in keyboard on main control board
  • Mechanical anti-pinch protection with automatic reset functionality
  • Anti-breakthrough security with automatic locking until authorized signal
  • Synchronization capabilities for dual gate configurations
  • Automatic user authorization cancellation after preset time limits
  • Configurable as normally open or normally closed operation
  • Compatibility with multiple reader types: IC/ID cards, barcodes, fingerprints
  • Flexible directional settings (single or bi-directional)
  • Integrated LED direction indicators
  • Fire safety compliance with automatic opening during power failure
  • Alarm functions for illegal and reverse intrusion detection
  • Optional counter functionality
  • Infrared photocell integration for anti-pinch and reset operations
24V BLDC Motor Flap Turnstile Gate Professional Security Control System 0
