Full Height Turnstile Mechanism Design RFID 120 / 90 Degree Semi Automatic
  • Full Height Turnstile Mechanism Design RFID 120 / 90 Degree Semi Automatic
  • Full Height Turnstile Mechanism Design RFID 120 / 90 Degree Semi Automatic
Full Height Turnstile Mechanism Design RFID 120 / 90 Degree Semi Automatic

Full Height Turnstile Mechanism Design RFID 120 / 90 Degree Semi Automatic

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number FH-SM-M1
Product Details
Power Supply:
AC100~240V, 50/60Hz; DC24V
MTBF:
More Than 10 Million Times
IP:
IP44
Working Temperature:
-25℃-75℃
Direction:
Bi-directional
Rotation Degree:
120 Or 90 Degree
Highlight:

90 Degree Turnstile Mechanism Design

,

RFID Turnstile Mechanism Design

,

IP44 Turnstile Mechanism For Sale

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
Negotiable
Packaging Details
Carton box/ Plywood box/Pallet
Delivery Time
5 to 7 days after payment received
Payment Terms
T/T,Western Union,,L/C,D/A,D/P
Supply Ability
1,00 pcs per month
Product Description
Full Height Turnstile Mechanism Design RFID 120 / 90 Degree Semi Automatic

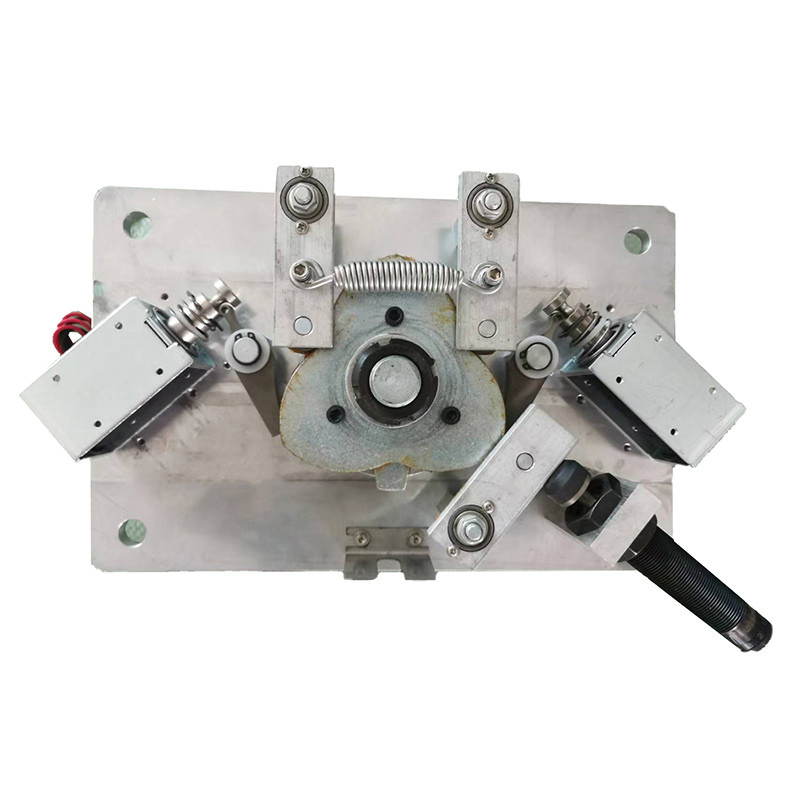

RFID Access Control 120 or 90 Degree Semi Automatic Full Height Turnstile Mechanism Machine Core
The full height turnstile features a unique, robust mechanical design that provides unsupervised access control for offices and buildings, enabling intelligent pedestrian control and management.
The impenetrable construction prevents unauthorized access to restricted areas. Users must present a valid card to the access control system for authorized passage. Upon validation, the turnstile unlocks and allows passage in the requested direction. The system is compatible with push buttons, fingerprint scanners, and face recognition access control systems.
Technical Specifications
Description Parameters
Power input AC100~240V, 50/60Hz, DC24V
Drive type Semi-automatic
Material Steel/304 stainless steel
Passing Speed 30 person/min, adjustable
Direction Bi-directional
Working Temperature -25℃-75℃
Communication signal Dry contact (RS485 Optional)
MTBF More than 10 million times
Relative Humidity <95%
Main Functions and Features
  • Rainproof housing constructed from SS304 stainless steel or anti-corrosion coated iron
  • Mechanical drive unit with solenoid locking mechanism eliminates expensive electric motors and reduces maintenance costs
  • Automatic rotation adjustment: rotates to next idle position if arm moves beyond half-way, returns to current position if less than half-way
  • Built-in adjustable tensioner controls rotation force to minimize over-rotation, enabling easy operation for all users including elderly and children
  • Configurable for bi-directional or uni-directional operation with tamper-resistant key-locked housing
  • Innovative mounting surface design ensures simple and convenient installation for system integrators
  • Compatible with various access control devices: IC/ID card readers, barcode scanners, fingerprint scanners (access controller required)
  • Automatic reset function cancels user authority if passage isn't completed within prescribed time (default 5 seconds)
  • Equipped with automatic regulated hydraulic buffer device for quiet, impact-free operation
