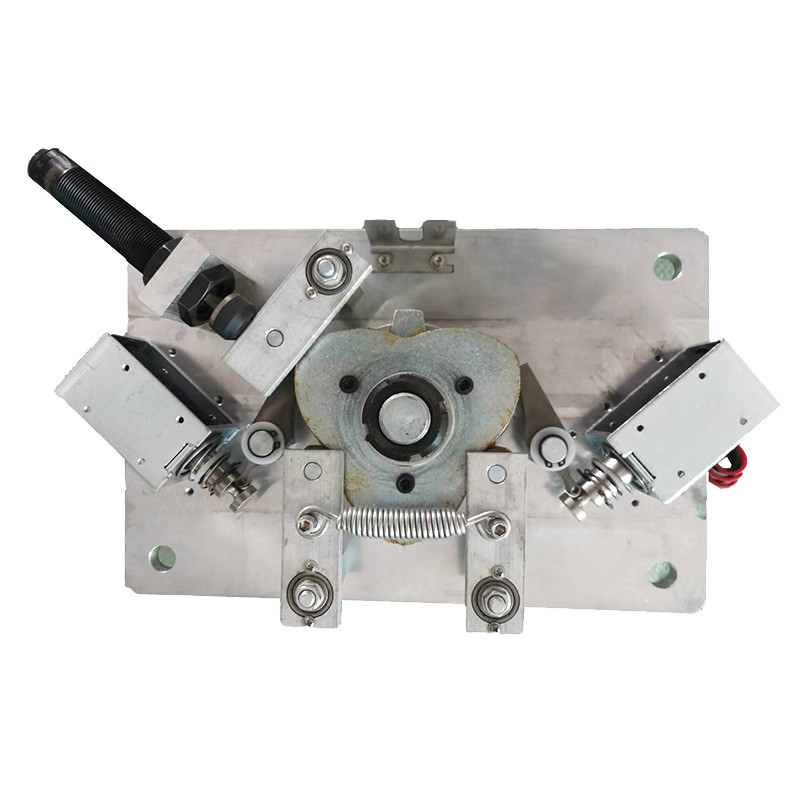

Semi Automatic Full Height Turnstile Mechanism IP44 Solenoid Drive Dry Contact
  • Semi Automatic Full Height Turnstile Mechanism IP44 Solenoid Drive Dry Contact
  • Semi Automatic Full Height Turnstile Mechanism IP44 Solenoid Drive Dry Contact
Semi Automatic Full Height Turnstile Mechanism IP44 Solenoid Drive Dry Contact

Semi Automatic Full Height Turnstile Mechanism IP44 Solenoid Drive Dry Contact

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number FH-SM-M1
Product Details
Power Supply:
AC100~240V, 50/60Hz; DC24V
MTBF:
More Than 10 Million Times
IP:
IP44
Working Temperature:
-25℃-75℃
Direction:
Bi-directional
Rotation Degree:
120 Or 90 Degree
Highlight:

Solenoid Drive Full Height Turnstile Mechanism

,

IP44 Full Height Turnstile Mechanism

,

Turnstile Mechanism Design IP44

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
Negotiable
Packaging Details
Carton box/ Plywood box/Pallet
Delivery Time
5 to 7 days after payment received
Payment Terms
T/T,Western Union,,L/C,D/A,D/P
Supply Ability
1,00 pcs per month
Product Description
Semi Automatic Full Height Turnstile Mechanism IP44 Solenoid Drive Dry Contact
Product Overview
Bi-Directional Pedestrian Fast Speed Solenoid Drive Semi-Automatic Full Height Turnstile Mechanism
The full height turnstile is designed with unique, strong, and durable mechanical construction to provide unsupervised access control for offices or buildings, enabling intelligent pedestrian control and management.
The impenetrable construction eliminates any unauthorized access to restricted areas. To gain authorized passage through the turnstile, users must present a valid card to the access control system. Upon presentation of a valid card, the turnstile unlocks and allows passage in the requested direction. The turnstile can also integrate with push button, fingerprint, and face recognition access control systems.
Technical Specifications
Description Parameters
Power input AC100~240V, 50/60Hz, DC24V
Drive type Semi-automatic
Material Steel/304 stainless steel
Passing Speed 30 person/min, adjustable
Direction Bi-directional
Working Temperature -25℃-75℃
Communication signal Dry contact (RS485 Optional)
MTBF More than 10 million times
Relative Humidity <95%
Main Features
  • Rainproof housing, SS304 or anti-corrosion coating iron
  • Mechanical drive unit with solenoid locking mechanism eliminates the use of expensive electric motors and reduces maintenance costs
  • If arm rotated more than half, it will auto-rotate to the next idle position. If arm rotated less than half, it will auto-rotate back to the current idle position
  • Built-in adjustable tensioner to control rotation force and minimize over rotation. Arm requires only light pushing, making it suitable for elderly users and children
  • Configurable for bi-directional or uni-directional operation. Housing is locked with a special key to prevent tampering
  • Innovative and unique mounting surface ensures simple and convenient installation for system integrators
  • Compatible with various access control devices: IC/ID card readers, barcode scanners, fingerprints, etc. (Access controller required)
  • Automatic reset function cancels user authority if passage isn't completed within the prescribed time (default: 5 seconds)
  • Equipped with an automatic regulated hydraulic buffer device for quiet, impact-free operation
Semi Automatic Full Height Turnstile Mechanism IP44 Solenoid Drive Dry Contact 0
