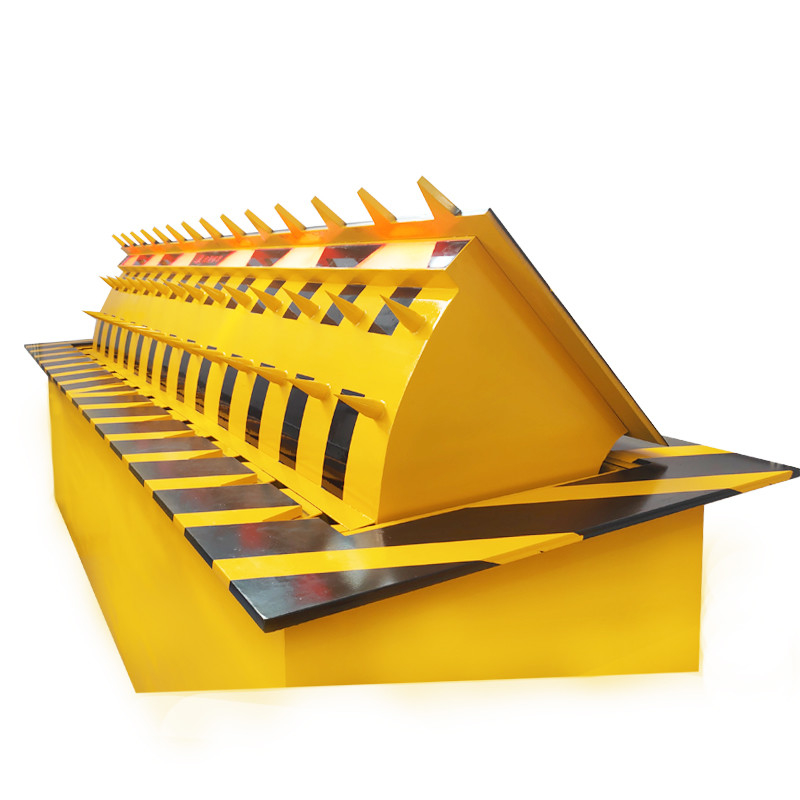

PAS68 Test Hydraulic Road Blocker Entrance Point High Security Anti Vehicle Attach
  • PAS68 Test Hydraulic Road Blocker Entrance Point High Security Anti Vehicle Attach
  • PAS68 Test Hydraulic Road Blocker Entrance Point High Security Anti Vehicle Attach
  • PAS68 Test Hydraulic Road Blocker Entrance Point High Security Anti Vehicle Attach

PAS68 Test Hydraulic Road Blocker Entrance Point High Security Anti Vehicle Attach

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-HRB02
Product Details
Min. Loading:
80 Tons
Rising Height:
500mm
Hydraulic Tank Capacity:
60L/80L/100L/120L
Power Supply:
380V
Palte Material:
A3 Steel
IP Rate:
68
High Light:

PAS68 Test Hydraulic Road Blocker

,

PLC control Hydraulic Road Blocker

,

A3 Steel Hydraulic Road Blockers

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-7 working days after payment received
Payment Terms
T/T, Western Union, MoneyGram, L/C, D/A, D/P
Supply Ability
100 pcs per month
Product Description

PAS68 Test Entrance Point High Security Anti-Vehicle Attach Hydraulic Road Blocker



PRODUCT DESCRIPTION





SINOMATIC hydraulic road blockers are designed especially for entrance points which have a threat of vehicle attack or for the ones that have high security requirements. If there is a threat of vehicle attack in addition to the control of vehicle access in high security applications, hydraulic road blockers are the unique solution and the most secure systems. Even though the attack is from high tonnage vehicles with high speeds, it s not possible for the vehicle to keep on moving because of the damage given to front, wheels and the bottom of the vehicle.



The drive unit is hydraulic, but in case of power failure, the road blocker can be lowered or lifted manually with the help of manual hand pumps. With the help of PLC controlled electronics, raise/lower function can be achieved by every kind of card readers, biometric readers like fingerprint or hand shape, radio control, on/off key switch etc. Besides, safety accessories like dual vehicle safety loop detectors and red/green lights can be provided as accessories in the system.


OPTIONAL DIMENSION


L2000*W1000*H760,Rising height:500(Customized)
L2500*W1000*H760,Rising height:500(Customized)
L3000*W1000*H760,Rising height:500(Customized)
L3500*W1000*H760,Rising height:500(Customized)
L4000*W1000*H760,Rising height:500(Customized)
L4500*W1000*H760,Rising height:500(Customized)
L5000*W1000*H760,Rising height:500(Customized)
L5500*W1000*H760,Rising height:500(Customized)
L6000*W1000*H760,Rising height:500(Customized)


STANDARD DIMENSION (Can be customized)

PAS68 Test Hydraulic Road Blocker Entrance Point High Security Anti Vehicle Attach 0
PRODUCT PARAMETERS


Basic Information
Rising time
1-3s (Adjustable)
Dropping time
1-3s (Adjustable)
Dimension - Length
3-6m (On request)
Width
1000mm
Height underground
760mm
Rising height
500mm
Spikes
φ30mm*90mm (Optional)
Panel/Housing/Spikes
A3 Steel
Panel thickness
16(default) /20mm &25mm optional
Surface color (Customizable)
Red/Green/Yellow/Black
Anti-rust treatment
2 layers spray paint
Reflective tape
White/Black, Yellow/Black etc
LED warning light
RGB, various dynamic mode



Actuator
Hydraulic actuator
Electric & Manual pump integrated
Power supply
380VAC
Power consumption
3.75KW~5.5KW
Shock-reducing
Yes
Industrial hydraulic tank
80L~120L
Hydraulic hose
Conical sealing, high pressure
Ambient temperature
-35℃~75℃
Bearing capacity
0-100tons


TECHNICIAL SPECIFICATIONS
1. System: hydraulic
2. Voltage: 3 phase 380V(control voltage DC24V)
3. Rising time: 1S to 3S (adjustable)
4. Working temperature: -35℃ to 75℃
5. Material: A3 steel, spay anti-rust paint
6. Weight: ± 1.2Tons
7. The road blocker has a buffer function
8. LED light color: red, blue, green, yellow, purple, white etc.(total 20 colors are available)
9. In case of power outage, the blocker can be manually raised and lowered.
10. Remote control distance: 50 to 100mm (depends on the environment)
11. Device running noise: ≤60 decibel
12. Control solenoid valve :24v


PRODUCT APPLICATION


Embassy, Military Base, Power Stations, Prison and other sensitive area where needs high level security protection.

CASE REFERENCE

PAS68 Test Hydraulic Road Blocker Entrance Point High Security Anti Vehicle Attach 1

Professional installation instruction

*Easy-to-install, easy-to-maintain is what we pursue.
*We provide detail & professional installation instruction (in English) to make your construction much easier. With all the technical data, dimension and etc.
*Furthermore, our after-sales service support can also provide remote (via phone call) instruction for free.

FAQ:
Q: Are you trading company or manufacturer?
A: We are manufacturer. Warmly welcome you to visit us on site.

Q: Can I order products without your logo?
A: Sure. OEM service is available as well.

Q: What is the payment term?
A: 30% deposit and 70% before delivery

Q: What is the inco-term?
A: EXW, FOB, CIF, CFR, CPT, DDU, DDP etc.
