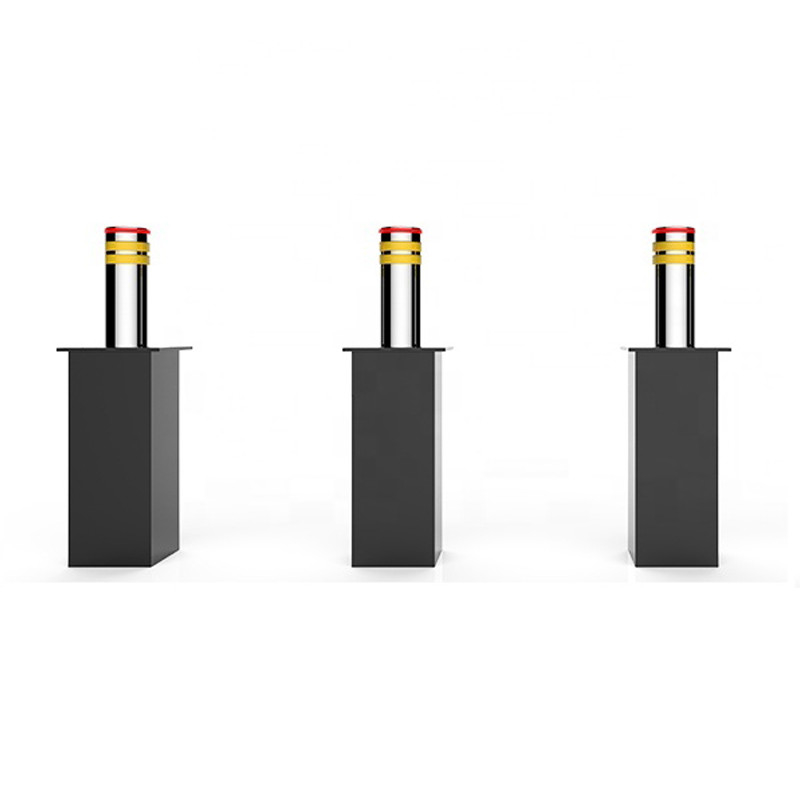

Automatic Rising Hydraulic Control Warning Anti-Collision Vehicle Bollard
This newly designed electric-hydraulic operated retractable bollard provides advanced roadblock management solutions. The system offers quick and easy operation, making it suitable for both security and access control applications while delivering enhanced convenience and superior security protection.
Automatic retractable bollards are ideal for areas requiring high security levels. Our bollards can raise or lower on command within 3 to 5 seconds, featuring electronic piston drive systems with electric motors that provide the highest precision control and quietest operation.
Technical Specifications
| Item |
Specifications |
| Raising/lowering speed |
3-6s (adjustable) |
| Diameter |
219mm/273mm/324mm |
| Raised height |
600-1000mm (optional) |
| Material |
304/316 stainless steel |
| Control mode |
Remote control (<100m) |
| System control |
Hydraulic and electric control |
| Working temperature |
-30℃～+75℃ |
| Embedded cylinder depth |
1100mm |
| Lamp belt |
LED lamp (Acrylic light circle) |
| Power Supply |
220V/110V |
| Thickness |
6mm,8mm,10mm,15mm,20mm |
| Weight |
100-150kg |
| Anti-collision levels |
K4,K8,K12 |
| Service life |
More than 5 million times |
| Drainage mode |
Natural drainage + External drainage system |
Product Advantages
- Multiple steel thickness options available (default 6mm)
- Various color customization options
- Customized sizing available
- Stable and safe operation with OMRON PLC control system
- Fast rising time and durable quality with hydraulic pressure
- Housing with durable stainless galvanization
- Optimized frame structure with high anti-impact and loading capability
- High security and anti-collision ability
- Reflective band and low energy consumption LED lighting for night visibility
Key Features
High Security & Anti-Collision
Pneumatic air pump in control cabinet provides large power safely for extended operation periods.
Electronic Control System
Fully automated rise/fall functionality with high system independence.
Reflective Band
Various color options for Glossee aveolate reflective band; clearly visible at night with minimal light.
Material Options
Available in 304 stainless steel, 316 stainless steel, and carbon steel with electrophoresis spray paint.
Anti-Skid Flange
Unique pattern design compatible with various road surfaces. Built-in PA orientation.
Top Cap Design
Simple integration design compatible with all architectural styles. Excellent workmanship resistant to close attacks.
Company Overview
Our company is located in Shenzhen, China, with a modern manufacturing plant spanning approximately 5,000 square meters. The facility includes advanced production lines, powder coating capabilities, R&D departments, and processing centers.
Our products are widely used in transportation roads, schools, government agencies, airports, prisons, military, customs, border control, parks, smart cities, and other security-sensitive fields.
We leverage our knowledge, experience, and manufacturing capabilities to offer greater flexibility than other manufacturers, providing custom solutions with short lead times and excellent value. Our focus is on delivering highly resistant and durable products at competitive prices, with extensive customization and system integration options.
With excellent cost-performance in overseas markets, our products are exported to Europe, US, East Asia, Russia, and the Middle East. We combine advanced technology with international quality standards, comprehensive design, and superior corrosion protection to earn customer trust worldwide.
Our company has experienced rapid growth and currently employs 100 skilled professionals dedicated to quality manufacturing and innovation.
