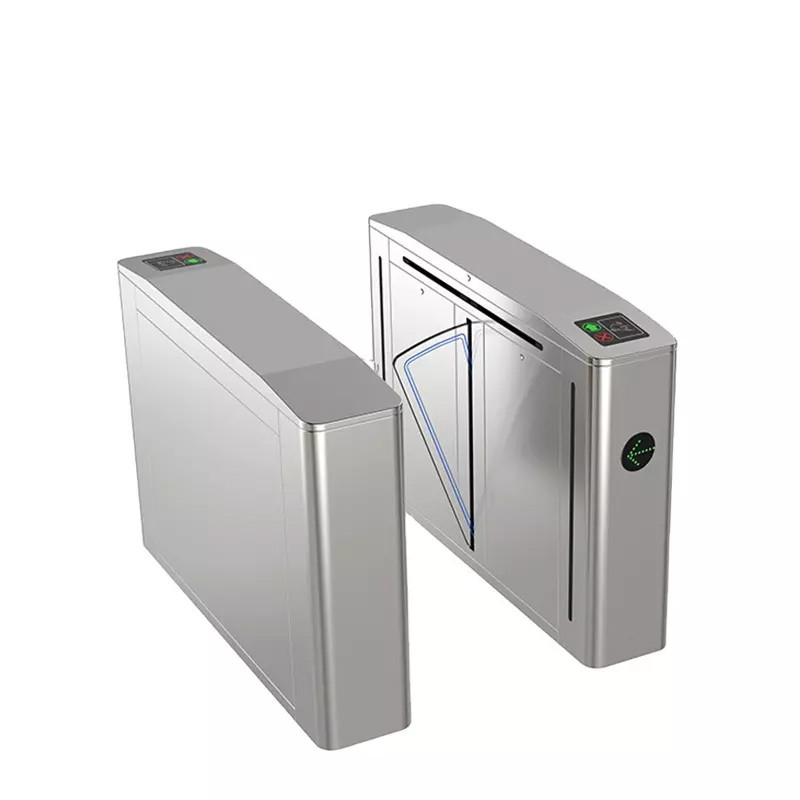

Security BLDC Motor Flap Barrier Gate Turnstile RS485 Interface With RGB Light
  • Security BLDC Motor Flap Barrier Gate Turnstile RS485 Interface With RGB Light
  • Security BLDC Motor Flap Barrier Gate Turnstile RS485 Interface With RGB Light
  • Security BLDC Motor Flap Barrier Gate Turnstile RS485 Interface With RGB Light
Security BLDC Motor Flap Barrier Gate Turnstile RS485 Interface With RGB Light

Security BLDC Motor Flap Barrier Gate Turnstile RS485 Interface With RGB Light

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-FB01
Product Details
Motor Voltage:
DC 24V
Working Temperature:
-20°C~60°C
Passing Direction:
Single Directional / Bi-directional
Power Input:
AC100V~240V; DC24V
Control Signal:
12V Level Signal/Relay Signal
Indicator:
RBG Light
Highlight:

RGB Light Flap Barrier Gate

,

RS485 Flap Gate Turnstile

,

BLDC Motors Flap Gate Turnstile

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
L/C, D/A, D/P, T/T, Western Union, , Ali pay
Supply Ability
1,000pcs per month
Product Description
Security BLDC Motor Flap Barrier Gate Turnstile with RS485 Interface and RGB Lighting
This automatic flap barrier turnstile provides reliable and efficient access control, ensuring only authorized personnel can enter designated areas. Featuring clear direction indicators and RGB lighting, it guides pedestrians through smooth, correct passage while integrating seamlessly with various access control systems.
Access Control Integration
Compatible with all major access control systems including facial recognition, fingerprint scanners, QR code readers, and RFID systems. Advanced anti-tailgating technology ensures only one person passes per authorization, while anti-punch detection prevents barrier closure when passageways are occupied.
Key Features
  • Reliable BLDC gear motor ensures long-term, maintenance-free operation
  • Integrated smart self-diagnostic system for optimal performance
  • Digital control of force and leaf speed with safety sensors for user protection
  • Advanced sensor system detects luggage passage and enables free exit without identification
  • Elegant cabinet design with integrated LED lighting showing access status
  • Uniform cabinet dimensions for both normal (550mm) and wide lane (900mm) configurations
  • Customizable housing design and top lid options available
  • Low power consumption for energy efficiency
  • Fail-safe manual leaf opening during power outages
Technical Specifications
Product Name Automatic Flap Barrier Gate
Type Retractable Flap
Brand SINOMATIC/OEM
Housing Material SS 304 (SS316 optional)
Function Pedestrian Access Control
Flap Material 10mm Thickness Acrylic
Dimensions 1200×300×1000mm (customizable)
Net Weight 60kg per unit
Passage Width 600mm (Single Passage)
Passing Direction Single or Bi-directional
MCBF 5 Million Cycles
Cabinet Thickness 1.2-1.5mm
Power Input AC100V-240V; DC24V
Passing Speed 30-35 Persons per Minute
Driving Voltage DC24V
Driving Mode Brushless Motor
Communication Interface Dry Contact
Advanced Functions
  • Fault detection and alarm functions for easy maintenance
  • Programmable operation via built-in keyboard on main board
  • Mechanical anti-pinch protection with automatic reset
  • Anti-breakthrough automatic locking system
  • Synchronization capability for dual gate installations
  • Automatic user authority cancellation after preset time
  • Configurable normally open or normally closed operation
  • Compatible with IC/ID card readers, barcode scanners, and fingerprint systems
  • Single or bi-directional passage configuration
  • Integrated LED direction indicators
  • Fire safety compliance with automatic opening during power failure
  • Alarm functions for illegal and reverse intrusion detection
  • Optional counter functionality
  • Infrared photocell support for enhanced safety
Security BLDC Motor Flap Barrier Gate Turnstile RS485 Interface With RGB Light 0
Applications
  • Banks and financial institutions
  • Government and institutional facilities
  • Office buildings and corporate headquarters
  • Educational institutions and universities
  • High-security sites: military, nuclear, pharmaceutical, and data centers
  • Airports and transportation hubs
