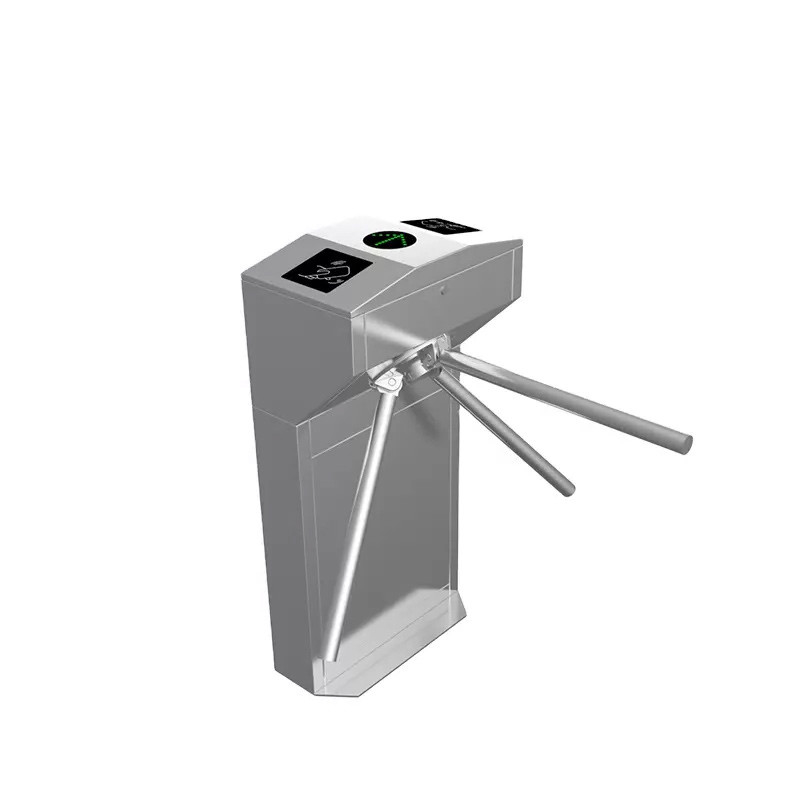

Vertical Stand Up Tripod Turnstile Gate Pedestrian Entrance Semi Automatic
  • Vertical Stand Up Tripod Turnstile Gate Pedestrian Entrance Semi Automatic
  • Vertical Stand Up Tripod Turnstile Gate Pedestrian Entrance Semi Automatic
Vertical Stand Up Tripod Turnstile Gate Pedestrian Entrance Semi Automatic

Vertical Stand Up Tripod Turnstile Gate Pedestrian Entrance Semi Automatic

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-TT01
Product Details
Power Supply:
AC100V~240V; DC24V
Gate Open Signal:
Dry Contact/ Relay
Direction:
Bi-directional
LED Indicator:
Bi-directional
Footprint:
Slim
Warranty:
12 Months
Highlight:

SS Vertical Tripod Turnstile Gate

,

Pedestrian Entrance Tripod Turnstile Gate

,

DC24V Semi Automatic Turnstile

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T, Western Union, , L/C, D/A, D/P
Supply Ability
500pcs per month
Product Description
Vertical Stand Up Tripod Turnstile Gate - Semi Automatic Pedestrian Entrance
Our semi-automatic vertical stand-up tripod turnstile gate provides reliable and efficient access control, ensuring only authorized personnel enter secured areas. Designed for high-traffic environments, this compact unit features durable construction and smooth operation ideal for transit applications.
Key Product Advantages
  • Bi-directional tripod turnstile with panic/bar drop function
  • High quality construction at cost-effective pricing
  • Compatible with all access control and ID systems
  • Low power consumption for energy efficiency
  • Whisper quiet, low noise operation
  • Available in indoor or outdoor housing types
  • Panic/bar drop function with automatic reset
Technical Specifications
Dimensions 480×280×980mm (customizable)
Lane Width 550mm (customizable)
Passing Speed 30-35 persons/minute
Power Supply 110V/220V 50/60Hz
Weight 35kg
Casing Material 304 stainless steel
Reliability 5 million cycles, no-fault operation
Operating Temperature -40℃ to +70℃
Communication Interface Dry contact, RS485 optional
Main Features & Functions
  • Compact, cost-effective entrance security solution
  • Fully rainproofed 304 stainless steel housing - rust-resistant and durable
  • Suitable for indoor and outdoor installation (IP54 rated)
  • Universal relay output for integration with RFID, fingerprint, face recognition, barcode, and IR thermometer systems
  • Semi-automatic operation - push arm slightly when access is granted
  • Precision mold mechanism for smooth, quiet operation with extended service life
  • Single-person passage enforcement with directional control
  • LED directional indicator light on housing
  • Automatic clock function with 5-second default timeout
  • Power-off emergency release complies with fire safety requirements
Factory Advantages
  • 20+ years OEM/ODM experience in access control systems
  • Prompt delivery with standard model inventory
  • Custom OEM/ODM orders accepted
  • Sample orders available for testing
  • Comprehensive online technical support
  • Multiple shipping options available
  • Factory visits welcome on working days
Vertical Stand Up Tripod Turnstile Gate Pedestrian Entrance Semi Automatic 0
