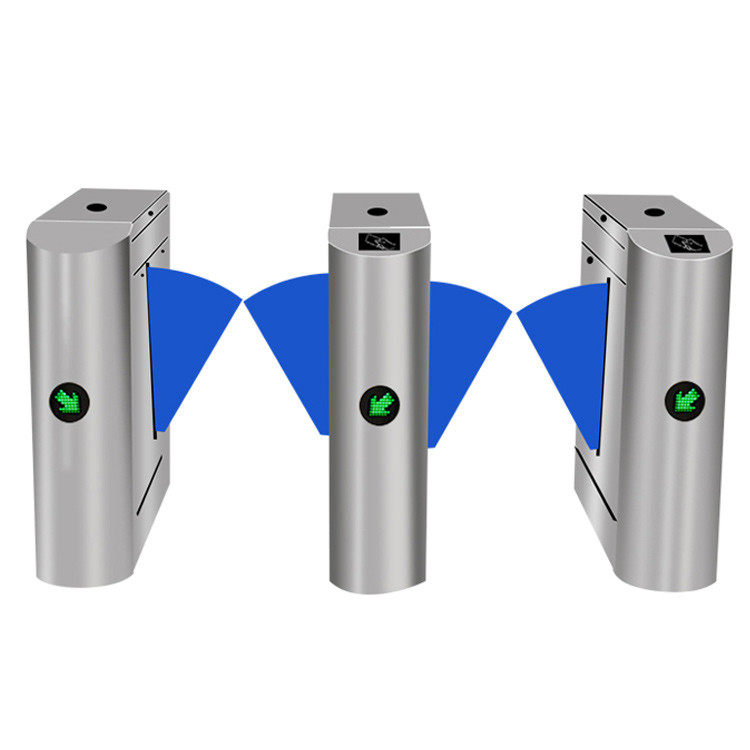

Indoor / Outdoor Automatic Flap Barrier Gate
Robust Brushed Stainless Steel Construction
Highly Secure Access Control Solution
Professional security turnstile system designed for schools, commercial buildings, and high-traffic pedestrian areas with bidirectional flow control.
Product Overview
The automatic flap barrier controls pedestrian entry and exit in restricted areas, specifically engineered for high pedestrian traffic environments with bidirectional movement.
Constructed from brushed stainless steel, this robust barrier offers exceptional durability with anti-rust, waterproof properties suitable for both indoor and outdoor installations. Features standard relay signals for seamless integration with third-party access control systems including RFID, fingerprint, and biometric readers.
Ample mounting space accommodates various external devices such as displays, counters, card readers, push buttons, card collectors, coin inserts, and barcode/QR readers.
Key Features & Functions
- Compatible with smart card readers and access controllers for comprehensive access control
- Expandable to automatic identification systems for access control, pedestrian flow management, attendance tracking, and fare collection
- International standard electrical interfaces for easy integration with other read/write devices and remote computer supervision
- Infrared photocell sensors for unauthorized entry detection, tailgating prevention, and anti-strike protection
- LED direction indicators showing operational status (green arrow for entry, red cross for locked)
- Dual input signal capability from access controllers, buttons, or other equipment
- Audible sound prompts and information display functionality
- Automatic flap opening during power interruption with normal close mode restoration after power recovery
- Counting function for continuous pedestrian passage (up to 16 persons)
- Reverse passing alarm for unauthorized direction changes
- Integrated face recognition terminal with advanced detection and recognition algorithms
Technical Specifications
| Specification |
Details |
| Model Number |
SN-FB02 |
| Brand |
Sinomatic |
| Framework Material |
304 Stainless Steel + Acrylic Flap |
| Dimensions |
1200 × 300 × 1000mm |
| Net Weight |
60kg/pcs, 70kg/pcs |
| Passage Width |
550mm to 600mm (One Passage) |
| Passing Direction |
Single Directional / Bi-directional |
| MCBF |
5 Million Cycles |
| Power Supply |
AC220V/110V, 50/60Hz; DC24V |
| Operation Voltage |
24V DC |
| Power Consumption |
40W |
| Operation Temperature |
-20°C to 60°C |
| Operation Humidity |
0-95% (No Freeze) |
| Working Environment |
Indoor / Outdoor |
| Flow Rate |
30-35 People per Minute |
| LED Indicator |
Yes |
| Infrared Sensor |
3 Pairs (Standard) |
| Emergency Feature |
Automatic Arm Opening During Power Loss |
| Communication |
Dry Contact, Relay Signal, RS485 Optional |
