BLDC Motor Speed Gate Turnstile Plexiglass Transparency Wide Clearance Passage
  • BLDC Motor Speed Gate Turnstile Plexiglass Transparency Wide Clearance Passage
  • BLDC Motor Speed Gate Turnstile Plexiglass Transparency Wide Clearance Passage
  • BLDC Motor Speed Gate Turnstile Plexiglass Transparency Wide Clearance Passage
BLDC Motor Speed Gate Turnstile Plexiglass Transparency Wide Clearance Passage

BLDC Motor Speed Gate Turnstile Plexiglass Transparency Wide Clearance Passage

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-HSG150
Product Details
Motor:
BLDC
Lane Width:
600mm（single Unit） To 1000mm （pair）
Housing Lenght:
1200mm
Housing Width:
150mm
Housing Height:
1060mm
Material:
SS304/aluminum/acrylic/steel
Highlight:

BLDC Motor speed gate turnstile

,

Plexiglass Passage speed gate turnstile

,

600mm access control speed gates

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Plywood box/Pallet
Delivery Time
7-10 working days after payment received
Payment Terms
T/T, Western Union,
Supply Ability
500 pcs per month
Product Description
BLDC Motor Speed Gate Turnstile
Plexiglass Transparency Wide Clearance Passage with Brushless DC Motor
Product Overview
This high-speed gate controls pedestrian entry and exit in restricted areas, designed for high-traffic environments with bidirectional flow. Constructed with brushed stainless steel for durability, rust resistance, and weatherproof performance, it's suitable for both indoor and outdoor installations.
Key Specifications
Power Input220V/110V
Working Temperature-35℃ to 75℃
Flap Width300mm to 500mm
Passage Width600mm (1000mm optional)
Passing SpeedNormally open: 50 persons/min; Normally closed: 30 persons/min
Manufacturing TechniqueLaser cutting, brushed finish
Motor TypeDC Brushless motor
Gate Operation Time≤ 0.4 seconds
Flap MaterialAcrylic
Working EnvironmentIndoor and outdoor (with shelter)
Input Connection+12V Level Signal or Pulse Width >100ms Pulse Signal, Current >100ms
Construction MaterialsSS304 stainless steel, acrylic, steel, aluminum
Product Dimensions
BLDC Motor Speed Gate Turnstile Plexiglass Transparency Wide Clearance Passage 0
Advanced Features
  • Configurable operation modes via main panel controls
  • Anti-pinch and anti-collision safety systems with automatic reset
  • Anti-illegal entry and intrusion prevention with auto-close function
  • Collision protection with automatic closure on invalid signals
  • Motor protection against external force collisions
  • Synchronized gate operation capability
  • Auto-reset function with adjustable timing
  • Photocell-based reset and anti-pinch functionality
  • Compatible with access control, consumption, ESD, and e-ticket systems
  • One-way or two-way control options
  • Remote control administration
  • LED status indicators
Product Gallery

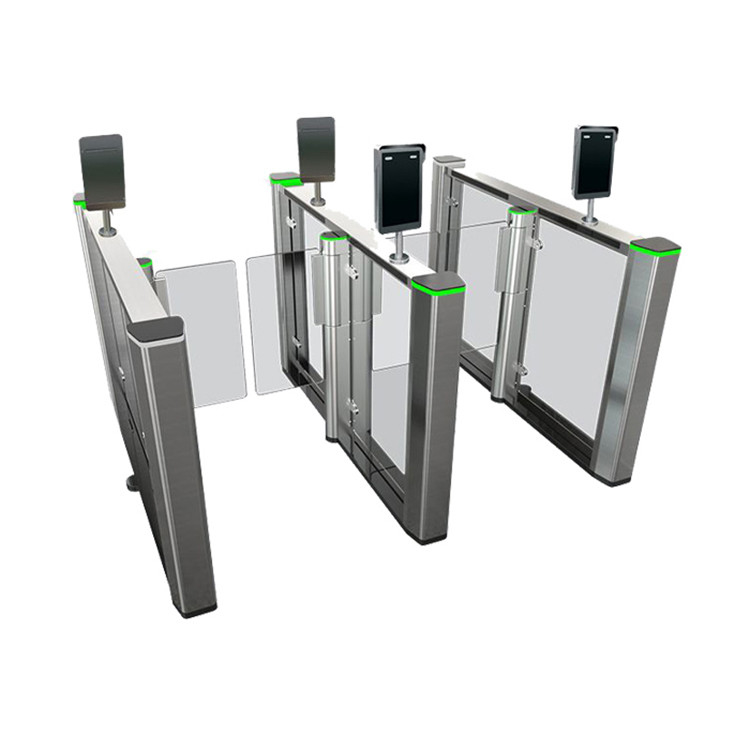

BLDC Motor Speed Gate Turnstile Plexiglass Transparency Wide Clearance Passage 1
Applications
This intelligent high-speed gate integrates with IC card, ID card, barcode, fingerprint, and other recognition systems for secure personnel access management. Ideal for transportation hubs, commercial buildings, offices, hotels, smart communities, and facilities requiring controlled access.
Frequently Asked Questions
What is your product's biggest advantage?
DC Brushless Motor technology provides maintenance-free operation, no attrition, low noise, and high intelligence.
What is your flap gate's opening and closing time?
≤ 0.4 seconds
What is the swing barrier gate working environment?
Suitable for both indoor and outdoor installations (with protective shelter).
Can I customize the product?
Yes, we welcome OEM customization as we are the manufacturer.
What is your warranty policy?
Minimum 1-year warranty coverage.
