Entrance Control Flap Barrier Gate Security Single / Double Wing For Metro Station

Place of Origin Shenzhen, China.
Certification CE/ ISO
Model Number SN-FB02
Minimum Order Quantity Sample order accepted
Price negotiable
Packaging Details Plywood box/Pallet
Delivery Time 5-10 working days after payment received
Payment Terms T/T or western Union
Supply Ability 1,000 pcs per month
Product Details
Matarial SS304/SS316 Direction Sinlge Or Bi-directional
Power Supply AC100V~240V;DC24V LED Indicator Included
Motor Voltage DC 24V Certificate CE,ISO,ROSH
High Light

SS316 Flap Barrier Gate


Metro Station Flap Barrier Gate


DC 24V Flap Gate Turnstile

Leave a Message
Product Description

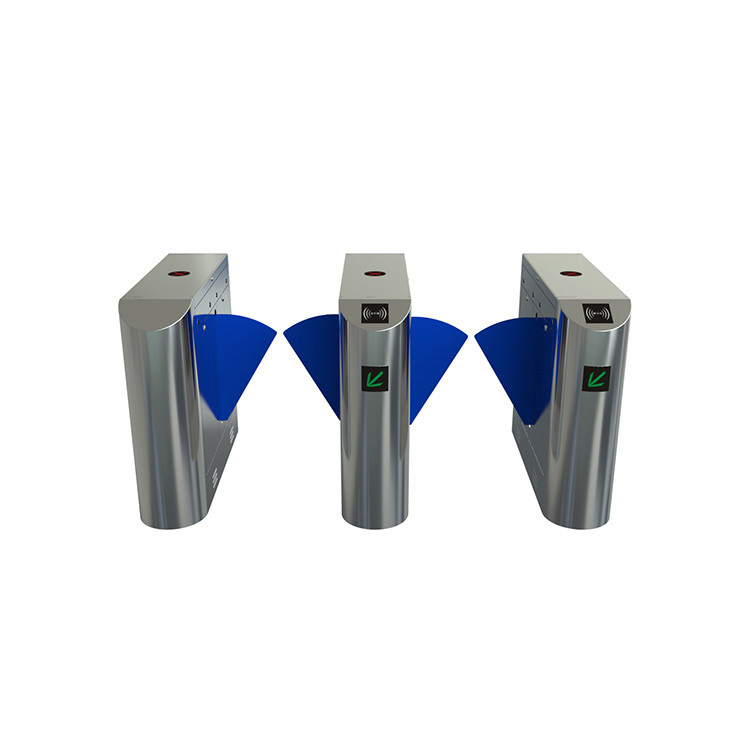

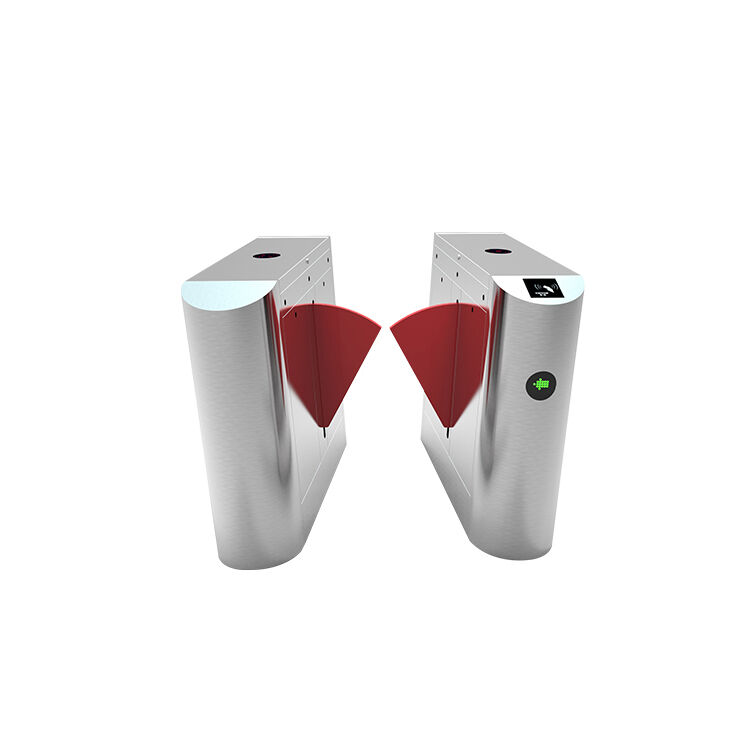

Entrance Control Medium-End Security Single Or Double Wing Walking Flap Barrier Gate For Metro Station




Optical flap turnstile is to control pedestrian entry or exit in restricted areas, usually used in high pedestrian traffic flow in both directions.


The body is made of brushed stainless steel which is robust, rigid, anti-rust, waterproof and durable. It is ideal for both indoor and outdoor settings. It has standard relay signal, which can be integrated with any kind of third-party access control system (e.g.: RFID, Fingerprint and Biometric reader device).


It has sufficient space, which can be mounted with any type of external device( e.g.: Display, Counter, Reader, Push button, Card collector, Coin insert, Barcode/QR reader, Wheel).


In case of emergency, the flap arms will open automatically to allow free passage when power off. It is suitable for areas with high pedestrian traffic (e.g.: Hotel, Building, Dormitory, Station, Airport, Park).




1. Can install Smart card reader and access controller to realize access control function

2. Can be expanded to automatic identification system, realizing function of access control, pedestrian flow control, attendance check or fare collection.

3. Equipped with international standard electrical interface, can be easily integrated with other R/W device, also can be controlled and management through remote supervision computer

4. Equipped with a couple of infrared photocells, alarm at unauthorized entry or tailgating attempts, together with anti-strike function to protect pedestrian

5. LED gate direction indicator that displays the current operational state to pedestrian. Green arrow for entry free, Red cross for passage locked.

6. Can open the turnstile by two input signals (signals can be input by access controller, button or other equipments)

7. Provide audible sound prompt and information display function.

8. The flaps will open automatically during power interruption, and recover N/C mode after power on(optional)

9. Counting function. Flap closes after passing N pedestrians continuously by reading cards N times correspondingly (N<=16)

10.Reversed passing alarm function, barrier will alarm if pedestrian pass from opposite direction after reading the card.


11.The integrative terminal of face recognition uses the world's leading face detection and recognition algorithm, runs it in high performance embedded platform, coordinates 200W pixel camera, realizes face detection, face tracking, and face recognition





Model No. SN-FB02
Brand Sinomatic
Framework Material 304 Stainless Steel+ Acrylic flap
Dimension 1200 * 300 * 1000mm
Net Weight 60kg/pcs,70kg/pcs
Passage Width 550mm to 600mm (One passage)
Passing Direction Single directional / Bi-directional
MCBF 5 million
Power Supply AC220V/110V, 50/60Hz; DC24V
Operation Voltage 24V DC
Power Consumption 40W
Operation Temperature -20 °C - 60 °C
Operation Humidity 0 ~ 95% (No freeze)
Working Environment Indoor / Outdoor
Flow Rate 30-35 people per minute
LED Indicator Yes
Infrared Sensor 3 pairs(standard)
Emergency Automatic arm open when power off
Communication Dry contact, Relay signal, RS485 optional
