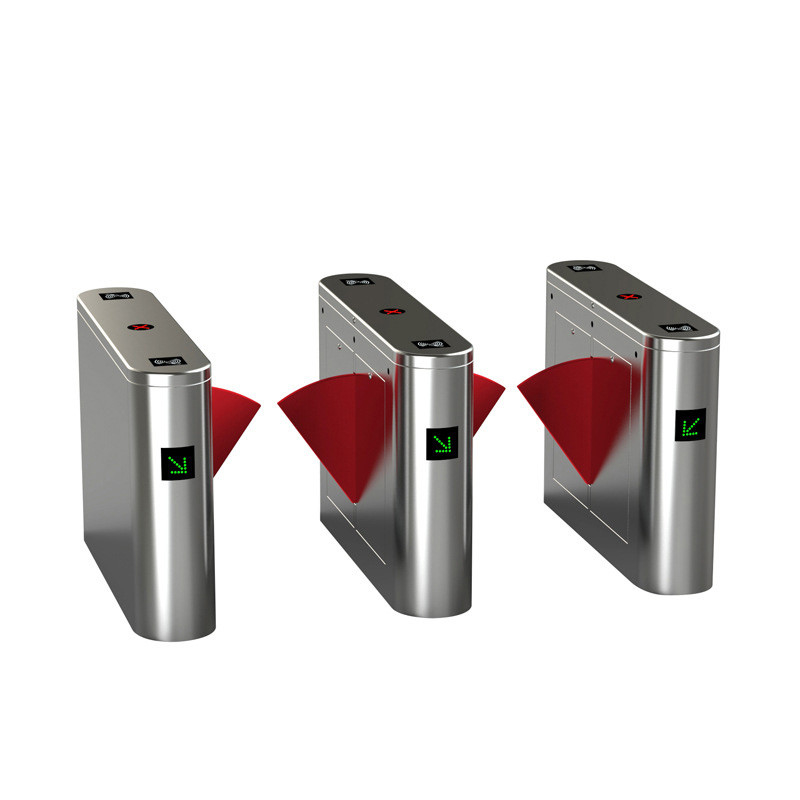

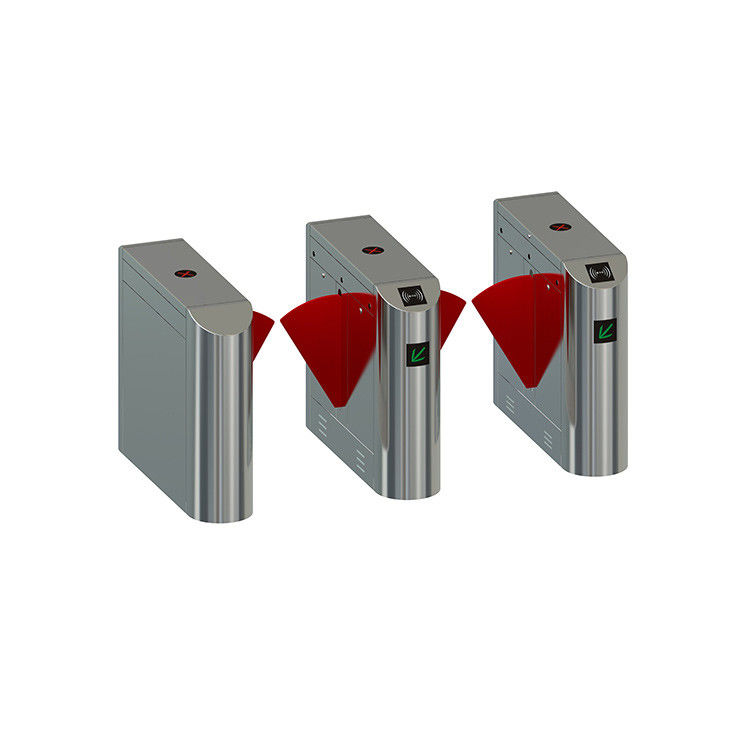

Pedestrian Entry Exit Flap Barrier Gate RFID Fingerprint Biometric Access Control
  • Pedestrian Entry Exit Flap Barrier Gate RFID Fingerprint Biometric Access Control
  • Pedestrian Entry Exit Flap Barrier Gate RFID Fingerprint Biometric Access Control
  • Pedestrian Entry Exit Flap Barrier Gate RFID Fingerprint Biometric Access Control
Pedestrian Entry Exit Flap Barrier Gate RFID Fingerprint Biometric Access Control

Pedestrian Entry Exit Flap Barrier Gate RFID Fingerprint Biometric Access Control

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-FB02
Product Details
Barrier Material:
Acrylic/PU Foam/ Glass
Matarial:
SS304/SS316/Acrylic
Direction:
Sinlge Or Bi-directional
Power Supply:
AC100V~240V;DC24V
LED Indicator:
Included
Motor Voltage:
DC 24V
Highlight:

Flap Barrier Gate DC 24V

,

Entry Exit Flap Barrier Gate

,

Biometric Pedestrian Barrier Gate

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T or western Union
Supply Ability
3,000pcs per month
Product Description
Pedestrian Entry Exit Flap Barrier Gate with RFID Fingerprint Biometric Access Control
Our Pedestrian Entry/Exit RFID Fingerprint Biometric Access Control Flap Barrier Gate provides comprehensive security and access management for public passages. This advanced solution addresses security challenges while ensuring safety for personnel and business assets, while maintaining efficient pedestrian flow for visitors and the general public.
Product Overview
Flap Barrier systems deliver robust access control and complete security management for high-traffic public areas. This technology resolves security concerns while protecting organizational assets and employees, simultaneously enabling controlled access for visitors and maintaining operational efficiency for businesses dependent on consistent pedestrian traffic.
Commonly deployed at transportation stations, corporate entrances, airports, and various public facilities, this emergency control device features automatic wing operation. The barrier opens when users present valid access credentials and automatically closes after a brief interval.
Key Features & Functions
  • Compatible with smart card readers and access controllers for comprehensive access management
  • Expandable to automatic identification systems supporting access control, pedestrian flow management, attendance tracking, and fare collection
  • Standard electrical interfaces for seamless integration with reading/writing devices and remote computer supervision
  • Dual infrared photocell system with unauthorized entry alerts, anti-tailgating protection, and anti-strike safety features
  • LED directional indicators displaying operational status: green arrow for authorized entry, red cross for restricted access
  • Multiple activation options via access controller inputs, manual buttons, or external equipment signals
  • Audible alerts and information display capabilities
  • Automatic flap opening during power failures with normal closed mode restoration upon power return (optional)
  • Programmable counting function supporting continuous passage for up to 16 authorized entries
  • Reverse passage detection with alarm activation for unauthorized directional changes
  • Integrated facial recognition terminal featuring advanced detection algorithms, face tracking, and high-performance processing with 200W pixel camera coordination
Technical Specifications
Power Supply AC100V~240V; DC24V
Operating Temperature -20℃~60℃
Operating Humidity 5%~95%
Operating Environment Indoor/Outdoor (with shelter)
Lane Width 550mm to 600mm
Dimensions L=1200, W=280, H=980 (mm)
Packed Dimensions L=1300, W=380, H=1160 (mm)
Net Weight 60 kg
Packed Weight 80 kg
LED Indicator Included
Cabinet Material 304 Stainless Steel / 316 Stainless Steel (Optional)
Sensor System 4 Pairs
Barrier Material Acrylic / PU Foam (Optional)
Barrier Movement Retracting
Security Level Medium
MCBF 5 Million Cycles
Options/Accessories Counter, SUS316 Cabinet and Lid, Remote Control, Access Control
Enclosure Rating IP54
Application Reference
Pedestrian Entry Exit Flap Barrier Gate RFID Fingerprint Biometric Access Control 0
Frequently Asked Questions
Company Background
Based in Guangdong, China since 2002, we serve global markets including Domestic (30%), South America (10%), Southeast Asia (10%), North America (5%), Eastern Europe (5%), and additional international regions. Our team comprises 51-100 professionals.
Quality Assurance
We implement pre-production sampling and comprehensive final inspections prior to shipment to ensure product excellence.
Product Range
Our portfolio includes Tripod Turnstiles, Speed Glass Gates, Barrier Gates, Swing Gate Openers, and Sliding Gate Openers.
Competitive Advantages
Sinomatic Technology integrates intelligent mechanical and electronic systems with proprietary hardware and software designs. We offer ODM/OEM services tailored to domestic and international client requirements.
Service Capabilities
Delivery Terms: FOB, CIF, EXW, DDP, Express Delivery | Payment: USD, EUR, HKD, CNY | Payment Methods: T/T, L/C, Western Union, Cash, Escrow | Languages: English, Chinese, Spanish, and others.
