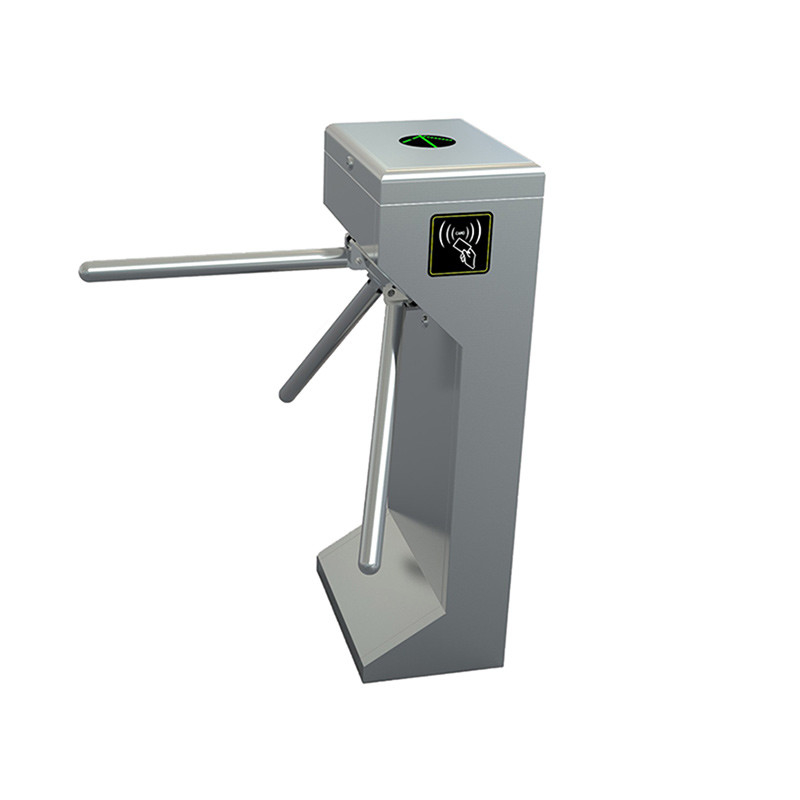

Semi Auto Tripod Turnstile Gate Dry Contact / Relay Signal Long Life

Long-Life Performance Simple Small And Economic Semi-Auto Tripod Turnstile Solution

PRODUCT DESCRIPTION

This is a simple, small and economic tripod turnstile solution to provide effective access control. It supports both single and bi direction. The mainly body is made of full brushed stainless steel and the arms are also made of stainless steel, too; red rubber is for optional based on customer’s order.

One LED indication is at top cover to show the access. As it’s small volume, it’s width used at sites that have narrow place.

Tripod turnstile gate can be combined with smart card, fingerprint, bar code, and other identification system equipment to form an intelligent access control system; It is combined with a computer, access control, attendance, charge management, ticket system, and other software to form an intelligent access control management system, which can realize the functions of access control, attendance, consumption, ticket sales, current restriction and so on.

PRODUCT ADVANTAGES

*Bi-directional tripod turnstile with panic / bar drop function;

*High quality at a cost effective price;

*Can be Integrated with any type of access control and ID systems;

*Low power consumption;

*Panic / bar drop function with automatic reset;

*Whisper quiet, low noise operation;

*Optional indoor or outdoor housing types;

Technicial specifications

1. Size: 480*280*980 mm (can be customized)

2. Lane width: 550 mm (can be customized)

3. Passing speed: 30-35 person/min

4. Power supply: 110V/220V 50/60Hz

5. Weight: 35 kg

6. Gate Open Signal: Dry Contact/ Relay

7. Casing Material: 304 stainless steel

8. Reliability of the mechanism: 5 million, no-fault

9. Arm material: 304 stainless steel

10. Solenoid valve: DC24V ±5％

TECHNICIAN SPECIFICATIONS

MAIN FUNCTION AND FEATURES

1. Tripod security gate is a compact and cost-effective entrance solution.

2. Tripod security gate has fully rainproofed 304 stainless steel housing, which is rust-resistant, solid, durable.

3. Tripod security turnstile can be mounted for both indoor and outdoor locations. The IP rate is 54

4. It has an international standard relay output, which can be easily integrated with all kinds of third-party access control systems (i.e RFID, Fingerprint, Face, Barcode, IR thermometer).

5. This model of Tripod security gate is a semi-automatic one. You will need to push the arm slightly to open the gate when access is granted.
The reasonable design and high performance are to ensure the gates can move quickly and accurately, stably and quietly; with low-power consumption, energy conservation, and environment protection.

6. Durable, corrosion-resistant, heavy-duty, mold mechanism for extended service life

7. The mechanism is mold design. All the components are precise. It makes the gate system operate smoothly, with low noise. A hydraulic damper can be added.

8. The design of the tripod security turnstile makes only one person pass at one time.

9. Single-directional or Bi-directional is supported.

10. LED directional indicator light on top of the housing

11. Automatic clock function: if there is an open signal received, but the visitor does not pass through the gate within a specific time (default 5s), the turnstile arm will lock automatically.

12. When power off, tripod turnstile arms will drop down automatically to allow free passage, which is complying with fire safety requirements.
