40W Servo Motor Speed Gate Turnstile Anti Tailgating Encoder Control System

Anti-Tailgating 1024 Pulses Encoder 40W Rated Power Servo Motor Fast Speed Swing Barrier Turnstile

PRODUCT DESCRIPTION

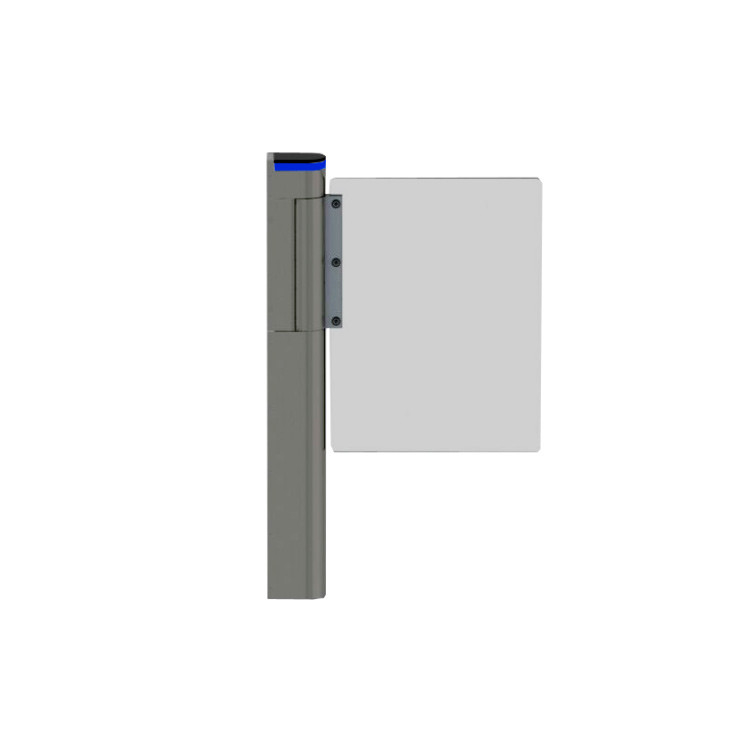

SN-HSG-SV-M1 is DC Servo motorized high speed swing barrier gate core mechanism with control kit inside. It has a slim, elegant design and minimal foot print while offering widest opening clearance to allow big boxes, trolley, wheelchair, baby stroller or user with big luggage to pass through with comfort.

This swing barrier gate core mechanism open and close speed up to 0.3 sec, which allows continuous passage of up to 45 people per minute.

This swing barrier gate core mechanism control system offer two logic working modes with different IR senor logic. Simple logic use for simple passage control (3-pair IR mode), while there is tailgating logic mode with 4-pair IR sensor when you need to control passage more strictly.

TECHNICIAL SPECIFICATIONS

MAIN FUNCTION AND FEATURES

1.ANTI-CRASH

Compared to traditional swing barrier, our high speed gate are anti-crash, when passenger try to push the flap to pass without authorized, the flap will auto lock in a set degrees and then auto back to correct position automatically without flap crashed.

2.ANTI-TAILGATING

Servo controller via logical sensor to restricting an unauthorized person from gaining access through a turnstile after an authorized person has already gained access. This function is used to minimize this risk and ensure that only people with proper authority gain access to a secured area.

3.Speed adjustable

This high speed gate allows you to set the opening and closing speed according to requirements. When the barrier too wide or too high, you can adjust the speed a little slow.

4.Widest opening

Compared to tripod turnstile and flap barrier, swing barrier allows widest opening clearance, The slim designed core machine allow you build a narrow housing, when used in pairs, the passage lane can be up to 1220mm (including 20mm clearance).

5.Customized opening

Swing barrier allows customized opening, acrylic flap can be cut short according to clearance at site to achieve perfect fitting.

6.Easy integration

Access Reader or Push button can be used to trigger the swing barrier to open via simply dry contact signal. After delay timer elapsed, Swing barrier will close automatically by itself in a certain time(this time can be set from 3-60 seconds).

7.Double safety

Optional IR sensor can be installed to auto reverse the gate if obstacle is detected during closing, which prevents the closing flap hitting somebody or something still in the lane passage.

8.Emergency

This swing barrier board has an emergency interface left for emergency signal. Barrier will open in case of the signal lasting.

9.Auto-recovery

During power failure, automatically open with super capacitor. This will fast escape in the event of emergency. When power resume, swing barrier will automatically close back.

PRODUCT APPLICATION

Intelligent high speed gate ---can be compatible with IC card, ID card, barcode card, fingerprint reading card recognition device used for staff, provide civilized, orderly access methods; effectively manage the access of staff. Can be widely used in the station, wharf subway, factories, office building, hotel, clubs, intelligent community, enterprises and institution that need intelligent access management.

FAQ

1. What is your products biggest advantage?
-------- DC Servo Motor, no maintenance all the of life, No Attrition, Low Noise ,Hight Intelligence.


2. What is  your flap gates opening and closing time ?
-------- <=0.3s .

3. What is the Swing barrier gate Working environment ?
-------- They can be used indoor and outdoor(with shelter)

4. Can I customize it ?
-------- Yes, Welcome . We are the manufacturer , We are welcome OEM .

5. What's you warranty?
-------- 1 year time warranty .
