Overheat Protection Sliding Gate Opener Aluminum Oxide Shell Material 2000kg Gate Weight
  • Overheat Protection Sliding Gate Opener Aluminum Oxide Shell Material 2000kg Gate Weight
  • Overheat Protection Sliding Gate Opener Aluminum Oxide Shell Material 2000kg Gate Weight
  • Overheat Protection Sliding Gate Opener Aluminum Oxide Shell Material 2000kg Gate Weight
Overheat Protection Sliding Gate Opener Aluminum Oxide Shell Material 2000kg Gate Weight

Overheat Protection Sliding Gate Opener Aluminum Oxide Shell Material 2000kg Gate Weight

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-SL2000AC
Product Details
Loading Capacity:
2000 KG
Power Supply:
AC110V/220V （±10%）
Motor Power:
750W
Limit Switch:
Spring (mechanical) / Magnetic
Application:
Indoor/outdoor
Remote Control Mode:
Single Button/three Button
Highlight:

Overheat Protection Sliding Gate Opener

,

Aluminum Shell Sliding Gate Opener

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T, Western Union,
Supply Ability
2,000 pcs per month
Product Description
Overheat Protection Sliding Gate Opener
Aluminum oxide shell material with 2000kg gate weight capacity
Product Overview
The SL800AC/SL1000AC/SL1500AC/SL2000AC gate opener is engineered for commercial and industrial applications, supporting gate weights up to 800/1000/1500/2000kg with an operating distance of up to 12 meters.
Main Features
  • AC motor with built-in control unit
  • Keypad/single button interface
  • Alarm lamp, photo beam and safety beam interface
  • User-selectable auto-close function
  • Soft start and slow stop (smart version, optional)
  • Auto-reverse function when hitting obstacles during closing (smart version, optional)
  • Manual key release design for emergency power failure
  • Gear driven with built-in control board
  • RF Hopping Code Technology prevents remote code access
  • Emergency manual release key for power outages
  • 4-button remote control for open/close/stop functions
  • Supports up to 25 additional remote controls
System Advantages
  • Compatible with various access control systems including infrared sensors, human body sensors, remote control, face recognition, IC/ID card readers, button switches, and mobile phone Bluetooth
  • Adjustable holding time, speed, and strength within allowable range
  • Resistance reversal function with optional infrared induction for secondary protection
  • Fire fighting linkage capability
Technical Specifications
Model SL2000AC
Driven Mode Gear
Opening Speed 13m/min
Motor Power 750W
Remote Control Mode Single button
Output Torque 22N.m
Work Duty S2 20min
Limit Switch Magnetic or spring limit switch
Max. Gate Weight 2000KG
Remote Control Range ≥30M
Remote Controls Capacity Max. 25 remote transmitters
Frequency 433.92Hz
Noise (No Load) ≤58dB
Output Shaft Height 50mm
Working Temperature -20℃~70℃
Power Supply 220V/50Hz (Optional: 110V/60Hz)
Package Weight 17.5KG
Standard Configuration 1 motor, 1 built-in control board, 2 remote controls, 2 keys
Optional Accessories Photocell, steel gear rack, alarm wall lamp, wireless keypad, wireless wall button
Related Model: Soft Start Soft Close Sliding Gate Opener
Applicable Swing Door 600kg, 800kg, 1000kg, 1500kg, 2000kg
Remote Control Distance 30 m
Gate Moving Speed 11-13m/min
Working Temperature -20℃~+70℃
Warranty 2 year
Motor Voltage 220V,50Hz/110V,60Hz
Power Range 150W-750W (600KG-2000KG)
Applications
Ideal for various public access doors, campuses, factories, office buildings, shopping malls, parking lots, and other facilities requiring contactless automatic door opening and closing.
Product Image

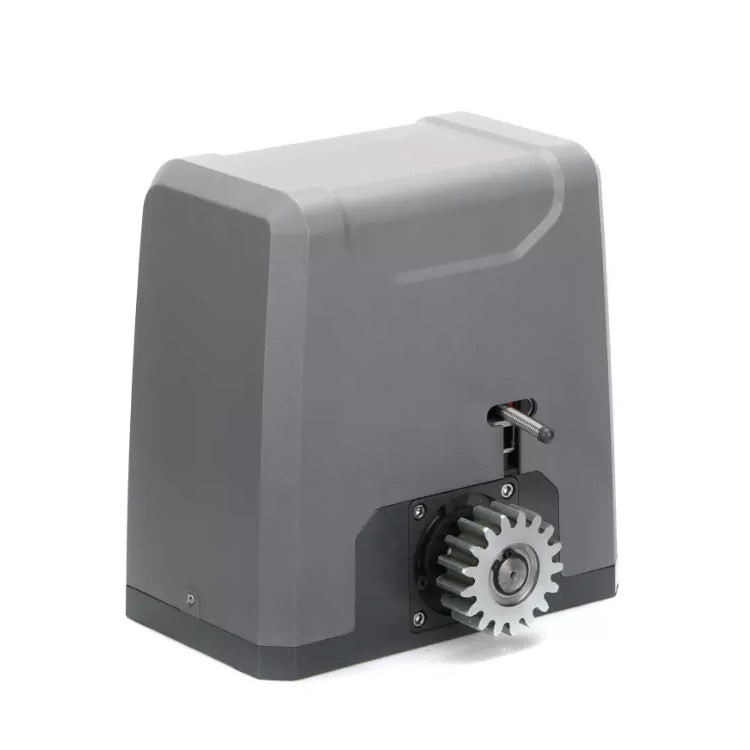

Overheat Protection Sliding Gate Opener Aluminum Oxide Shell Material 2000kg Gate Weight 0
Installation Requirements
The SL800AC/SL1000AC/SL1500AC/SL2000AC sliding gate opener is designed for gates weighing less than 800kg/1000kg/1500kg/2000kg with a sliding gate length less than 12m. The drive mode utilizes rack and gear transmission. This gate opener must be installed inside the enclosure or yard for protection.
Installation Procedures
Preparation Work: Ensure the sliding gate is correctly installed, the gate rail is horizontal, and the gate can be manually moved smoothly before installation.
Cable Installation: Bury motor & power cables and controlling cables separately using two PVC tubes to ensure normal operation and prevent damage.
Concrete Pedestal: Precast a concrete pedestal measuring 500mm x 300mm with a depth of 250mm to firmly install the gate opener. Verify appropriate distance between gate and opener before casting.
Main Engine Installation: Dismantle plastic housing, prepare appropriate power lines (minimum 3 cores, sectional area over 1.5mm²), and unlock the main engine using the manual release key before installation.
Documentation
For complete installation and operation details, download the user manual:
SL800,1000,1500,2000AC User Manual.pdf
