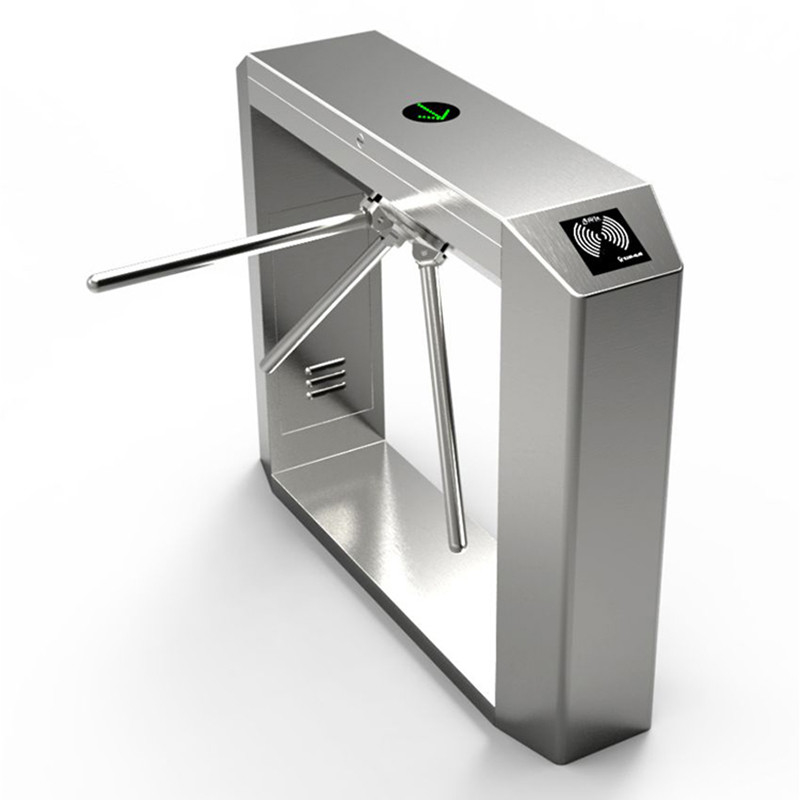

IP54 Outdoor Waterproof Tripod Turnstile Gate Pedestrian Access Control With RFID Reader
  • IP54 Outdoor Waterproof Tripod Turnstile Gate Pedestrian Access Control With RFID Reader
  • IP54 Outdoor Waterproof Tripod Turnstile Gate Pedestrian Access Control With RFID Reader

IP54 Outdoor Waterproof Tripod Turnstile Gate Pedestrian Access Control With RFID Reader

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-TT-SV21
Product Details
Dimension:
120x28x98cm
Motor Type:
Servo Motor
IP:
54
Motor Voltage:
24V
Application:
Indoor/outdoor
Certificate:
CE
High Light:

RFID Reader Tripod Turnstile Gate

,

Waterproof Tripod Turnstile Gate

,

tripod barrier gate IP54

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T, Western Union, MoneyGram
Supply Ability
1,000pcs per month
Product Description

IP 54 Outdoor Waterproof Pedestrian Access Control RFID Reader Fingerprint Face Recognition Tripod Turnstile



PRODUCT DESCRIPTION



These Tripod turnstile series are intelligent passage management equipment researched, developed and produced by our company. The equipment is integrated with delicate mechanical transmission. microprocessor control, and support various read/write techniques.



The outline of the product is formed after bending the stateliness steel plate. The shape is featured as pleasing appearance, good looking, stainless and durable.



The system is provided with a standard electric interface and is easily integrated into the equipment with read/write facilities such as magnetic card, bar code card, ID card and lC card.



TECHNICIAN SPECIFICATIONS



Description Parameters
Power input AC100~240V, 50/60Hz
Motor DC 24V Servo Motor
Rated power 30W
Housing material #304,Stainless steel, 1.5mm thickness
Passing Speed 35-50 person/min, speed adjustable
Input signals 100ms<Pulse <3s
Communication RS485 or Dry contact
MTBF More than 10 million times
Working Temperature -25℃-75℃
Relative Humidity <95%
Dimension 120x28x98cm
Net weight 60Kg



MAIN FUNCTION AND FEATURES



1.ANTI-CRASH

Compared to traditional tripod turnstile, our turnstile are anti-crash and anti-panic, when passenger try to push arm to pass without authorized, arm will auto lock in a degrees to prevent anti-crash and then auto back to correct position automatically.



2. MAINTANENCE FREE

DC Servo motor doesn’t need a carbon brush while brush motor request you replace the carbon brush in a certain time. Galvanized and stainless parts are anti-rust ensure long term usage.



3. 24/7 CONTINUS OPERATION

With a very smooth and quiet motorized drive mechanism, our turnstile allows 24 hours/ 7 days continuous operation.



4. SPEED ADJUSTABLE

This tripod height turnstile allows you to set the passing (arm rotating) speed according to requirements. When used in high flow sites, you can adjust the speed faster.



5. EASY INTEGRATION

Access Reader or Push button can be used to trigger the turnstile to open via a simply dry contact signal. After delay timer elapsed, turnstile will close automatically by itself in a certain time(this time can be set from 3-60 seconds).



6. USER FRIENDLY

Motorized rotor provide comfortable passage while maintaining a high level of crowd control and pedestrian flow management



7. EMERGERY

This turnstile control board has an emergency interface left for the emergency signal. Turnstile will open in case of the signal lasting.



8. AUTO-RECOVERY

Rotor will be free to pass upon loss of power or in emergency situations, it will become a two-way free passage(default). When power supply is restored or emergency signal suspended, the rotor automatically return to their normal operating position.

IP54 Outdoor Waterproof Tripod Turnstile Gate Pedestrian Access Control With RFID Reader 0



Why choose us:



1. Our Factory has more than 20 years OEM/ODM experiences in the line of access control turnstile and barrier and road blocker.
2. Prompt delivery time. Usually we keep stock of standard model which ensure the prompt delivery.
3. We accept OEM/ODM orders to meet the requirements of clients.
4. Trial order is acceptable. Clients can buy sample and test it before bulk order.

5. Online technical support makes it carefree to be our business partner.

6. A variety of transportation for your choice. Sea shipment, air cargo or express, depends on your demand.

7. Factory can be visited on working days. Clients are warmly welcome to visit our factory.
