High Speed Full Height Turnstile Servo Motor Access Control Round Shape
  • High Speed Full Height Turnstile Servo Motor Access Control Round Shape
  • High Speed Full Height Turnstile Servo Motor Access Control Round Shape
High Speed Full Height Turnstile Servo Motor Access Control Round Shape

High Speed Full Height Turnstile Servo Motor Access Control Round Shape

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-FH-SV3
Product Details
Dimension:
1500x1270x2300mm
Communication:
RS485 Or Dry Contact
Arm Lenght:
600mm
Working Temperature:
-25℃-75℃
Passing Speed:
35 To 50 Person/minute
IP Rate:
54
Highlight:

High Speed Full Height Turnstile

,

Round Shape Full Height Turnstile

,

Servo Motor Access Control Turnstile gate

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
Negotiable
Packaging Details
Plywood box/Pallet
Delivery Time
10 to 15 days after payment received
Payment Terms
T/T,Western Union,,Ali Pay
Supply Ability
1,00 pcs per month
Product Description
High Speed Full Height Turnstile Servo Motor Access Control Round Shape
High Speed Main Gate Designs Servo Motor Access Control Round Shape Full Height Turnstile Gate
Basic Description
This is full height turnstile is engineered for 100% duty cycle applications and intensive pedestrian movement areas. This indoor/outdoor solution is ideal for game parks, bus stations, train stations, stadiums, large factories, and any site with high traffic flow.
Constructed with tailored stainless steel, this elegant full-height turnstile offers exceptional durability and anti-oxidation properties. Built-in standard electrical interfaces support integration with magnetic cards, barcodes, and RFID cards for civilized, well-organized pass management. The system includes a unique fire-control interface with fail-safe operation (free enter/exit mode when power is off), with fail-secure as an optional configuration.
Technical Specifications
Description Parameters
Power input AC100~240V, 50/60Hz, DC24V
Motor/Rate Power DC Servo Motor, 60W/24V
Housing material #304 Stainless steel, 1.5mm
Passing Speed 35-50 person/min, adjustable
Input signals 100ms
Working Temperature -25℃-75℃
Communication signal RS485 or Dry contact
MTBF More than 10 million times
Relative Humidity <95%
Dimension L1500xD1270xH2300mm
Arm length About 600mm
Passage width About 650mm
Main Function and Features
  • Automatically low noise mechanism core equipped, highly cost-performance
  • Sense positioning, reducing mechanical impact for extended lifetime
  • Operating efficiency: 1~2 seconds open & close
  • Lowest Noise: Noise control under 30db during operation and external control
  • Self-checking and alarm warning for maintenance
  • Resetting: System cancels authorized pass if passenger delayed pass
  • Anti-following: prevents illegal passing
  • Anti-clamp: Wings stop during external block, reset after default delay
  • Rotary wings lock automatically if system doesn't receive IR signal
  • Multi-passage for variety application demands, covering 99% of global needs
  • Programmable signal separate control: pass time, pass speed parameters
  • RS232/RS485 interface supports all communication types including wireless
  • Long-distance management through computer
  • Customize options: LED display, voice guide, warning lamps, indicator lights guide, audible & visible alarm

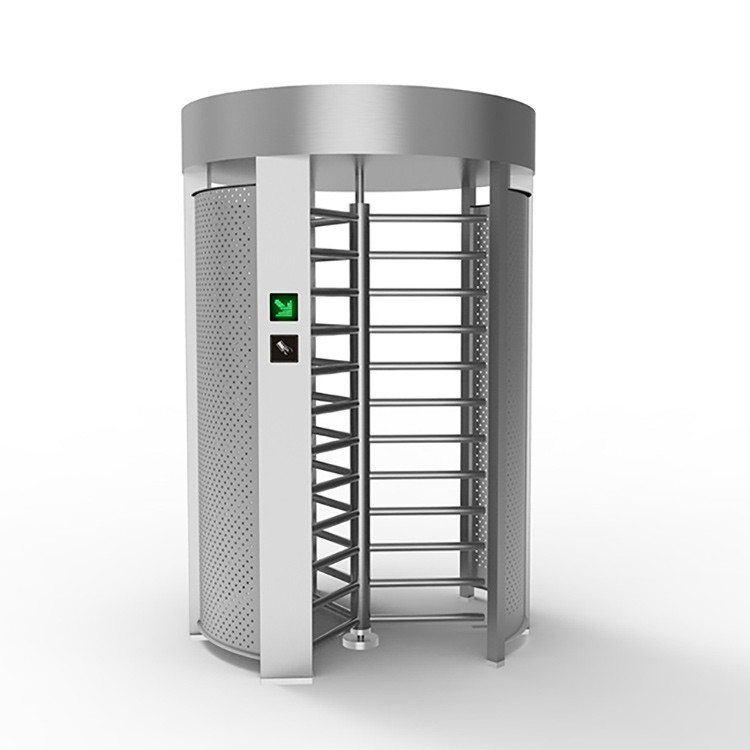

Full Height Turnstile Photo
High Speed Full Height Turnstile Servo Motor Access Control Round Shape 0
Control and Interfaces
  • Card reader
  • Metal detection
  • Electronic/LCD counters
  • Fail-open or fail-secure locking
  • Push-button and wireless remotes
  • Manual key override both directions
  • Indicator lights
