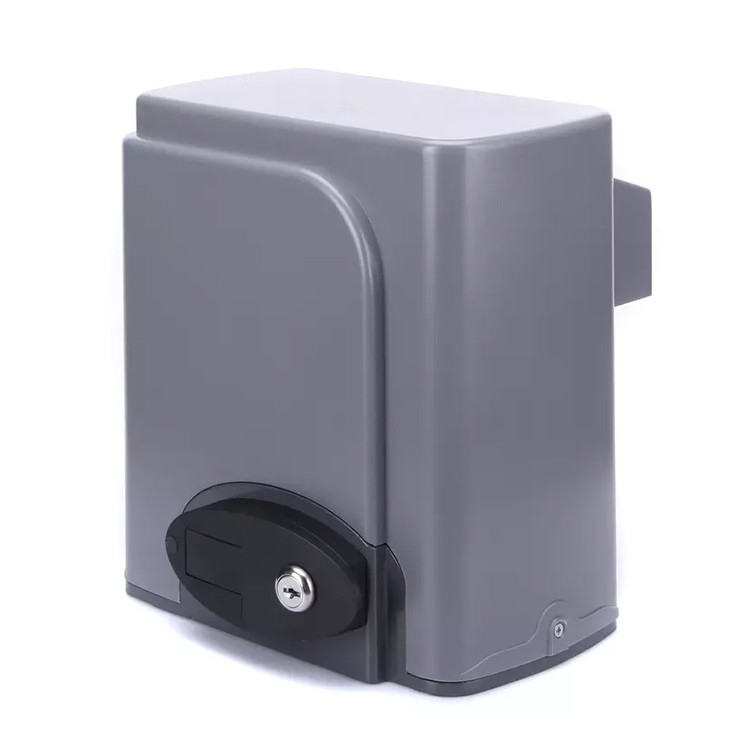

Residential Use Spring Mechanical / Magnetic Sliding Gate Motor 600kg Loading Capacity
  • Residential Use Spring Mechanical / Magnetic Sliding Gate Motor 600kg Loading Capacity
  • Residential Use Spring Mechanical / Magnetic Sliding Gate Motor 600kg Loading Capacity
  • Residential Use Spring Mechanical / Magnetic Sliding Gate Motor 600kg Loading Capacity
Residential Use Spring Mechanical / Magnetic Sliding Gate Motor 600kg Loading Capacity

Residential Use Spring Mechanical / Magnetic Sliding Gate Motor 600kg Loading Capacity

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-SL600AC
Product Details
Max.gate Weight:
600 KG
Power Supply:
AC110V/220V
Motor Power:
280W
Limit Switch:
Spring/magnetic
Motor Speed:
55 Rpm
Output Shaft Height :
58.5mm
Highlight:

55 rpm Sliding Gate Motor

,

Magnetic Sliding Gate Motor

,

600kg Loading Sliding Gate Operator

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T, Western Union,
Supply Ability
1,000 pcs per month
Product Description
Residential Use Spring Mechanical / Magnetic Sliding Gate Motor
The SL600AC gate opener is designed for residential use, handling gates weighing up to 600 kg with an operating distance of up to 8 meters.
Advanced Features
  • Compact structure and cost-effective design
  • Built-in control board for easy installation
  • Keypad and single button interface options
  • Alarm lamp, photo beam & safety beam interfaces
  • User-selectable auto-close function
  • Optional spring limit switch or magnetic limit switch
  • Manual key release for emergency situations
  • Automatic obstacle detection with safety reversal (Smart version)
Main Features
  • AC motor with integrated control unit
  • Keypad/single button interface compatibility
  • Alarm lamp, photo beam and safety beam interfaces
  • User-selectable auto-close function
  • Soft start and slow stop (smart version, optional)
  • Auto-reverse function when hitting obstacles during closing
  • Manual key release for emergency power failure
  • Gear driven mechanism with built-in control board
  • RF Hopping Code Technology for enhanced security
  • Handles gates up to 8 meters long and 600kg weight
  • 4-button remote control (open/close/stop functions)
  • Supports up to 23 additional remote controls
  • Manual release key for power outages
Technical Specifications
ModelSL600AC
Motor Speed55rpm
Rated Output Power280W
Remote Control ModeSingle button
Output Torque16N.m
Work DutyS2 15min
Limit SwitchMagnetic or spring limit switch
Max. Gate Weight600KG
Opening Speed13m/min
Remote Control Range≥30M
Remote Control CapacityMax. 25 remote transmitters
Frequency433.92Hz
Noise (No Load)≤58dB
Output Shaft Height46mm
Working Temperature-20℃~70℃
Power Supply220V/50Hz (Optional: 110V/60Hz)
Standard Configuration1 motor, 1 built-in control board, 2 remote controls, 2 keys
Optional Accessories
Metal Gear Rack & Nylon Gear Rack (order according to gate length), Photo beam sensor, Keypad systems, Push button, Warning light, Solar panel, Backup batteries
Residential Use Spring Mechanical / Magnetic Sliding Gate Motor 600kg Loading Capacity 0
Installation Requirements
The SL600AC sliding gate opener is suitable for gates weighing less than 600kg and sliding gate lengths under 12 meters. Utilizing rack and gear transmission, this gate opener must be installed inside the enclosure or yard for protection.
Installation Procedures
Preparation: Ensure the sliding gate is correctly installed, the gate rail is horizontal, and the gate moves smoothly manually before installing the opener.
Cable Installation: For optimal operation and cable protection, bury motor & power cables and control cables separately using two PVC tubes.
Concrete Pedestal: Precast a concrete pedestal measuring 400mm x 250mm with 200mm depth to securely install the SL600AC gate opener. Verify appropriate distance between gate and opener before casting.
Documentation
Download SL600AC User Manual
