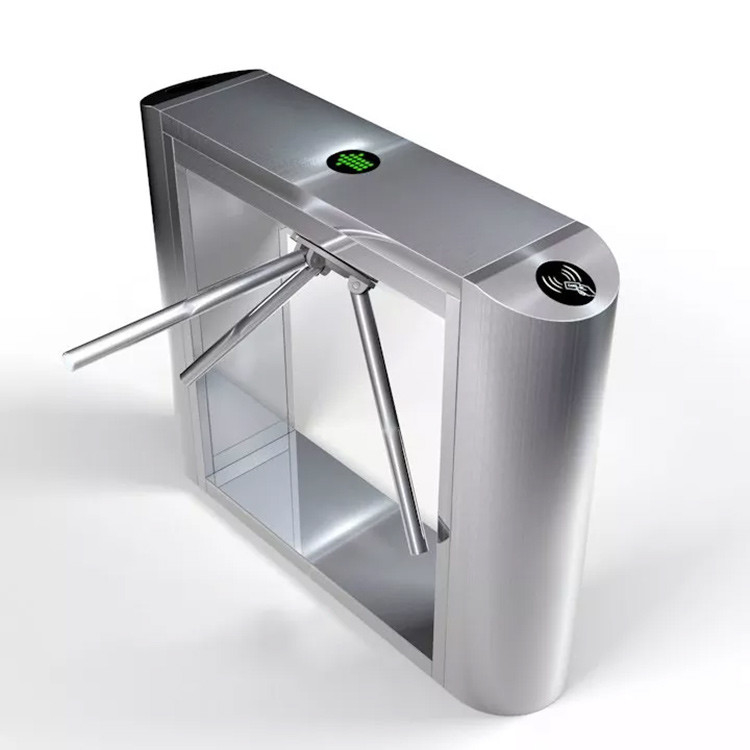

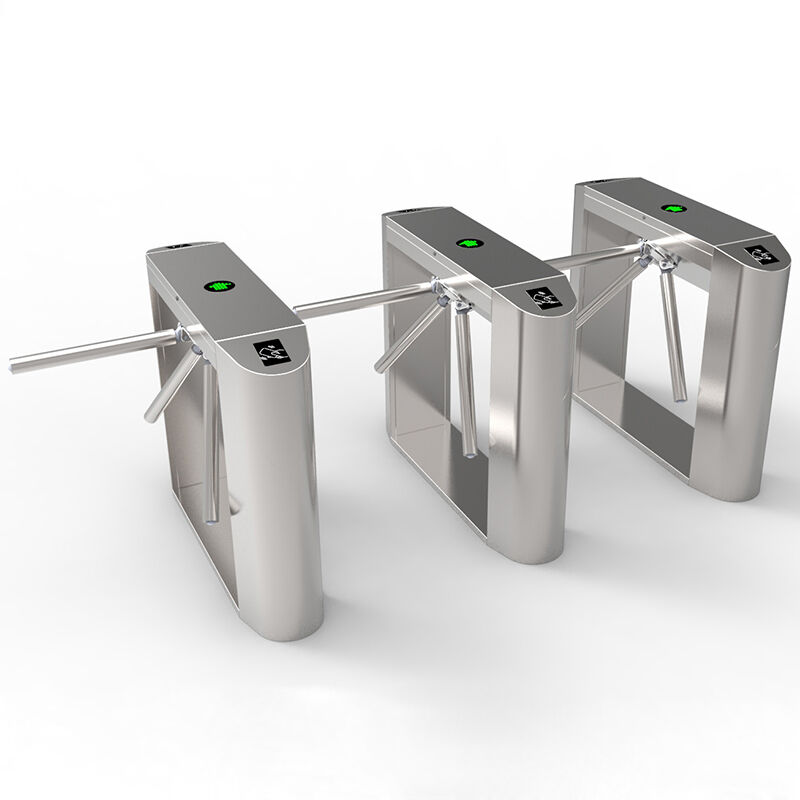

SS304 Entrance Barrier Gate Tripod Turnstile Gate IP54 Security Access Control
  • SS304 Entrance Barrier Gate Tripod Turnstile Gate IP54 Security Access Control
  • SS304 Entrance Barrier Gate Tripod Turnstile Gate IP54 Security Access Control

SS304 Entrance Barrier Gate Tripod Turnstile Gate IP54 Security Access Control

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-TT03
Product Details
MCBF:
5,000,000 Cycle
Direction:
Bi-directional
Service Life:
≥ 10 Million Cycle
IP:
54
Housing Material:
SS304
Application:
Indoor/outdoor
High Light:

SS304 Entrance Barrier Gate

,

Tripod Entrance Barrier Gate

,

Tripod Turnstile Gate 40W

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T, Western Union, MoneyGram
Supply Ability
3,000pcs per month
Product Description

Supermarket Access Control Manual Semi-Automatic Security Tripod Turnstile Gate



PRODUCT DESCRIPTION


Simple, yet robust in design, the SINOMATIC semi-auto tripod turnstile serial is one of our most aesthetically pleasing crowd control solutions. Suitable to cope with moderate volumes of traffic and handle abusive conditions, this tripod turnstile operates efficiently and reliably. In situations where crowd control is a priority, this is a flexible and convenient choice.



For any location that requires effective crowd management, a tripod turnstile slows traffic down and facilitates closer monitoring of ingress by staff or security guards. While the turnstile can be used for one-way traffic, typical traffic flow is two-way, one direction at a time. Users must pause and take turns before proceeding through the turnstile.



Performance and Features


1. Auto replacement function, re-position after person pass by.


2. Anti tail function auto-lock once turn120°


3. Arms auto drop when power off, insure unblocked when accident.


4. Standard electronic interface, remote control through internet which is also could connect variety card readers and receive relay signal to work.


5. Diverse control mode optional, changeable due to varying, convenient for your manage.


6. Auto alert error function, comfort for user maintain and operate.


7. Manual button or remote control ,Bio-directional passage.


8. Open signal with memory or with out set function.


9. Red and green light to show pass or stop, leisure to exit and entrance.



Technicial specifications

Model
SN-TT03
Case Material
SS304
Arm material
SS304
Production Process
CNC Laser Cutting
Size
1200*280*980mm
Power input
AC100-240V,50/60HZ
Operation voltage
DC24V, 3A, Power: 40W
Electromagentic
Duty Cycle 100%
Barrier Arm Lenght
510mm
Arm Max Applied Force
80Kg
Arm Operation Driving Force
3Kg
Passage direction
Single directional/Bi-directional(Optional)
Throughput Rate
30-35 persons/minute
Operating time
0.2 seconds
Automatic Reset Function
Automatically locked within set time(Adjustable)
Operation Humidity
0~95%(No Freezing)
Operation Temperature
-15℃~+60℃
Operation Eenvironment
Indoor,Outdoor(Shelter)
Protection Level
IP54
Communication interface
TCP/IP (optional)
MCBF
5,000,000 Cycles

SS304 Entrance Barrier Gate Tripod Turnstile Gate IP54 Security Access Control 0



SINOMATIC ADVANTAGES



1. Our Factory has more than 20 years of OEM/ODM experiences in the line of access control turnstile and barrier.


2. Prompt delivery time. Usually we keep stock of standard model which ensure the prompt delivery.


3. We accept OEM/ODM orders to meet the requirements of clients.


4. Trial order is acceptable. Clients can buy sample and test it before bulk order.



5. Online technical support makes it carefree to be our business partner.



6. A variety of transportation for your choice. Sea shipment, air cargo or express, depends on your demand.



7. Factory can be visited on working days. Clients are warmly welcome to visit our factory.
