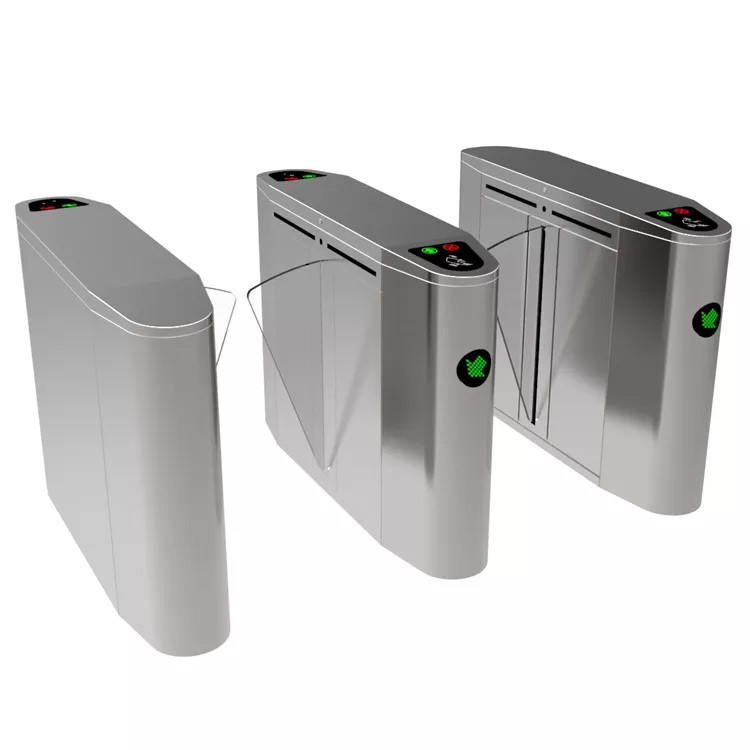

0.2 Second Flap Barrier Turnstile - Bi-Directional Entry and Exit
High Level Security Pedestrian Bi-Directional Entry And Exit Flap Barrier Turnstile
Customer Challenge: Controlling unauthorized entries in restricted areas
Solution: Capable of managing pedestrian entry and exit in restricted zones
Benefit: Enhanced access control with detection and prevention of unauthorized access
Value: Flap barriers effectively secure premises and assets
Product Overview
The Flap Barrier is engineered to deliver comprehensive access control and security in public passageways. This solution addresses security challenges while providing safety for organizational personnel and business assets. Simultaneously, it maintains high accessibility for public visitors and authorized individuals. This is particularly beneficial for businesses requiring consistent pedestrian flow while ensuring asset and personnel protection.
Commonly deployed at stations, office entrances, airports, and various public facilities, flap barriers serve as emergency control devices. The system automatically opens its dual wings when users present access credentials, then securely closes moments after passage.
Key Functions and Features
- Compatible with smart card readers and access controllers for access control functionality
- Expandable to automatic identification systems for access control, pedestrian flow management, attendance tracking, and fare collection
- Standard electrical interfaces for seamless integration with other reader/writer devices and remote computer management
- Infrared photocell system with anti-tailgating detection and anti-strike protection
- LED directional indicators displaying operational status (green arrow for access granted, red cross for passage locked)
- Dual input signal capability from access controllers, buttons, or other equipment
- Audible alerts and information display functions
- Automatic flap opening during power failure with normal close mode restoration upon power return (optional)
- Counting function for multiple consecutive passages (up to 16 individuals)
- Reverse passage alarm for unauthorized direction changes
- Integrated face recognition terminal with advanced detection, tracking, and recognition algorithms
Technical Specifications
| Specification |
Details |
| Power Supply |
AC100V~240V, DC24V |
| Working Temperature |
-20℃~60℃ |
| Working Humidity |
5%~95% |
| Working Environment |
Indoor/Outdoor (with shelter) |
| Lane Width |
600mm |
| Dimensions |
L=1200mm, W=280mm, H=980mm |
| Packed Dimensions |
L=1300mm, W=380mm, H=1160mm |
| Net Weight |
60kg |
| Packed Weight |
80kg |
| LED Indicator |
Included |
| Cabinet Material |
304 Stainless Steel |
| Sensor System |
4 Pairs |
| Barrier Material |
Acrylic/PU Foam |
| Barrier Movement |
Retracting |
| Security Level |
Medium |
| MCBF |
5 Million Cycles |
| Options/Accessories |
Counter, SUS316 Cabinet and Lid, Remote Control, Access Control |
| Enclosure Rating |
IP54 |
