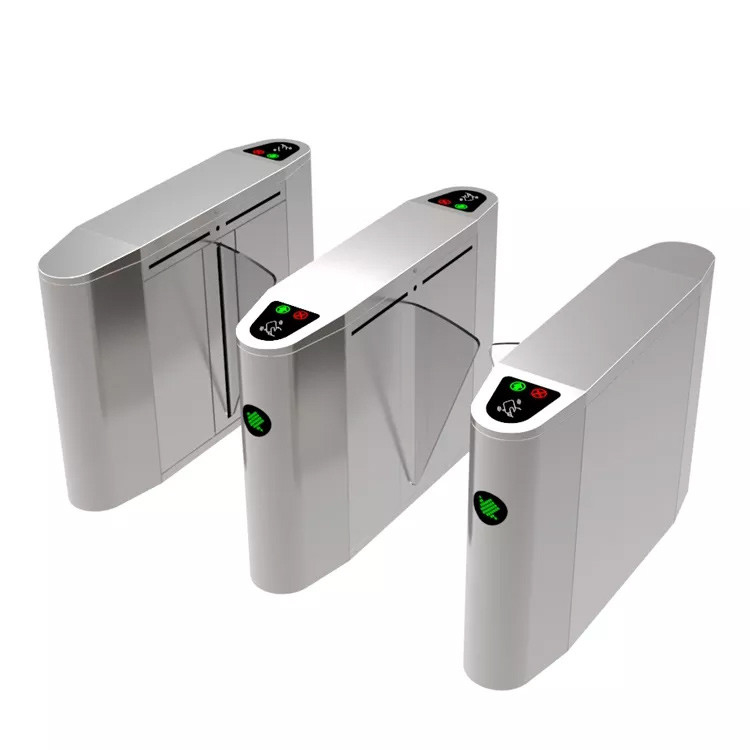

BLDC Motor Flap Barrier Gate Access Control Complete Security Public Passage
  • BLDC Motor Flap Barrier Gate Access Control Complete Security Public Passage
  • BLDC Motor Flap Barrier Gate Access Control Complete Security Public Passage
  • BLDC Motor Flap Barrier Gate Access Control Complete Security Public Passage

BLDC Motor Flap Barrier Gate Access Control Complete Security Public Passage

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-FB02
Product Details
Motor:
BLDC 24V
Operating Time:
0.2 Second
Barrier Material:
Acrylic/PU Foam/ Glass
Infrared Sensor:
Included
Matarial:
SS304/SS316/Acrylic
Direction:
Bi-directional
Highlight:

Flap Barrier Gate 0.2 second

,

Public Passage Flap Barrier Gate

,

BLDC Motor Flap Gate Barrier

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T or western Union
Supply Ability
3,000pcs per month
Product Description
BLDC Motor Flap Barrier Gate Access Control Complete Security Public Passage
Product Overview
The BLDC Motor Flap Barrier Gate provides comprehensive access control and security solutions for public passages. This system effectively addresses security challenges while ensuring safety for organizational personnel and business assets. It maintains controlled access for authorized individuals while accommodating public visitors, making it ideal for venues requiring continuous pedestrian flow without compromising security.
Commonly deployed at transportation stations, office entrances, airports, and various public facilities, this flap barrier serves as an emergency control device. The system automatically opens its dual wings upon valid access card authentication and closes securely after passage completion.
Technical Specifications
Power Supply AC100V~240V, DC24V
Working Temperature -20℃~60℃
Working Humidity 5%~95%
Working Environment Indoor/Outdoor (with shelter)
Throughput Speed RFID: Maximum 30/minute
Fingerprint: Maximum 25/minute
Lane Width 600mm
Dimensions L=1200mm, W=280mm, H=980mm
Packed Dimensions L=1300mm, W=380mm, H=1160mm
Net Weight 60kg
Packed Weight 80kg
LED Indicator Included
Cabinet Material 304 Stainless Steel
Sensor 4 Pairs
Barrier Material Acrylic/PU Foam
Barrier Movement Retracting
Security Level Medium
MCBF 5 Million Cycles
Options/Accessories Counter, SUS316 Cabinet and Lid, Remote Control, Access Control
Enclosure Rating IP54
Key Features & Functions
  • Compatible with smart card readers and access controllers for comprehensive access control functionality
  • Expandable to automatic identification systems for access control, pedestrian flow management, attendance tracking, and fare collection
  • International standard electrical interfaces for seamless integration with other read/write devices and remote computer management
  • Infrared photocell sensors for unauthorized entry detection, tailgating prevention, and anti-strike protection
  • LED directional indicators displaying operational status (green arrow for authorized entry, red cross for locked passage)
  • Dual input signal capability for gate opening via access controller, button, or other equipment
  • Audible sound prompts and information display functions
  • Automatic flap opening during power interruption with normal close mode restoration after power recovery (optional)
  • Counting function with automatic closure after specified number of consecutive passages (N≤16)
  • Reverse passage alarm function for unauthorized direction movement detection
  • Integrated face recognition terminal with advanced detection algorithms, face tracking, and recognition capabilities using 200W pixel camera
BLDC Motor Flap Barrier Gate Access Control Complete Security Public Passage 0
