Two Door Full Height Turnstile Prison Security RFID Card / Fingerprint Access Control
  • Two Door Full Height Turnstile Prison Security RFID Card / Fingerprint Access Control
  • Two Door Full Height Turnstile Prison Security RFID Card / Fingerprint Access Control
  • Two Door Full Height Turnstile Prison Security RFID Card / Fingerprint Access Control
Two Door Full Height Turnstile Prison Security RFID Card / Fingerprint Access Control

Two Door Full Height Turnstile Prison Security RFID Card / Fingerprint Access Control

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-FH02
Product Details
Passing Rate:
30~35 Person/min Per Lane
Response Time:
Less Than 0.2s
Surface Treatment:
Brushed
IP Rating:
IP54
Operation Time:
≥10 Million Times
Direction:
Single Or Bi-directional For Each Lane
Highlight:

30 Person / Minute Full Height Turnstile

,

Prison Security Full Height Turnstile

,

Brushed SS304 Access Control Turnstile

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T,Western Union,
Supply Ability
200 pcs per month
Product Description

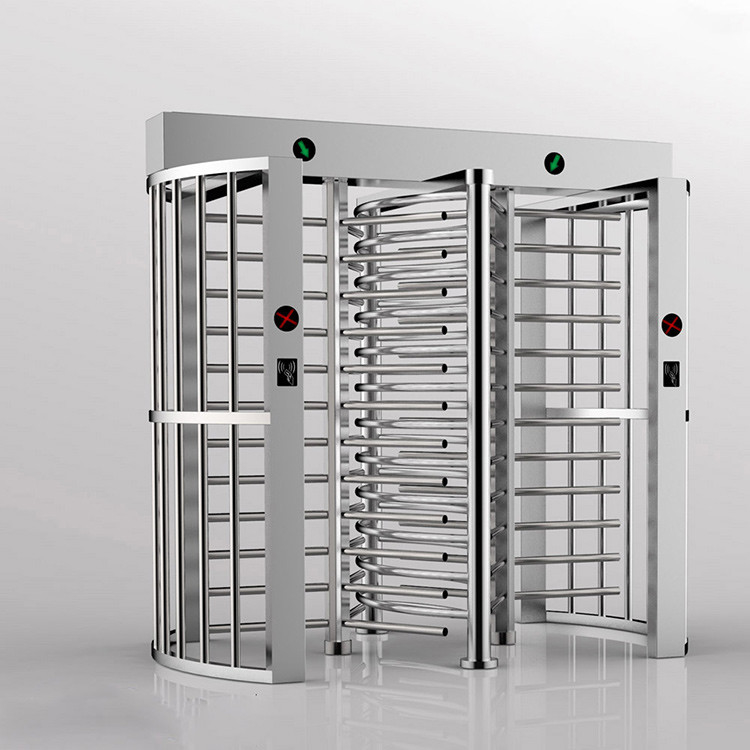

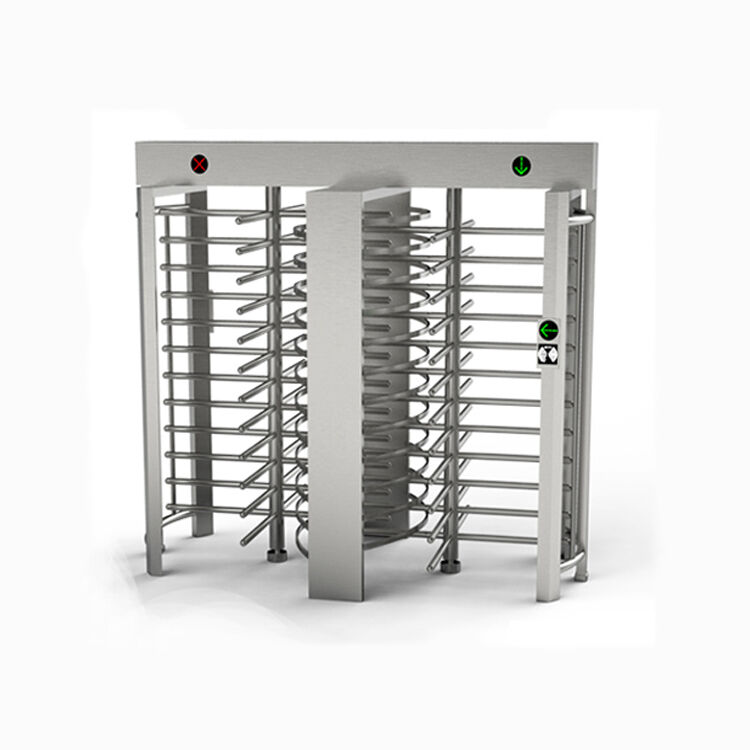

Two Door Full Height Turnstile Prison Security RFID Card / Fingerprint Access Control
This  series semi-automatic stainless steel dual lane full-height turnstile provides maximum access security control. Users cannot crawl underneath or climb over to gain unauthorized access into premises.
The semi-automatic turnstile operation uses a solenoid lock that blocks rotation direction, ensuring secure passage control.
Constructed from 304 stainless steel, this turnstile series is rustproof, durable, and provides orderly passage management while preventing illegal entry or exit.
Key Features
A robust and durable gate is essential for outdoor security applications. Our turnstile addresses security vulnerabilities and vandalism concerns without the high cost of European brands.
  • Space-Saving Dual Lane Design: The SN-FHT-M20 model saves space compared to installing two separate SN-FHT-M10 full height turnstiles.
  • Anti-Reverse Security: SINOMATIC SLAR (single-level anti-reverse) lock design prevents unauthorized entry by blocking reverse rotation attempts.
  • Enhanced Durability: Heavy-duty shock absorber reduces impact and vibration during operation, minimizing mechanical wear and maintenance costs.
  • Emergency Safety: Manual unlocking capability during power failures allows free arm rotation for fast emergency evacuation.
  • Cost-Effective Shipping: Tripod arm splits into three separate pieces to reduce transportation costs, with easy on-site assembly.
Technical Specifications
Power Supply Input AC100V~240V; 50Hz/60Hz
Power Voltage DC 24V / 50W
Open Signal Passive signals (relay signals, dry contact signals)
Passage Width ≤650mm
Response Time ≤0.2s
Optimal Pass Speed 30-35 person/min
Housing / Arm Material 304 Stainless Steel
Arm Rotation Angle 90/120 degree
Working Environment Indoor and outdoor
Working Temperature -20°C to +70°C
IP Rating IP54
Housing Dimension 2400mm (W) x 1580mm (L) x 2300mm (H)
Operations Time ≥10 million times
Detailed Functions & Features
  • 304 stainless steel housing with customizable appearance options
  • Clear access direction indicators with intuitive LED traffic lights showing pass/closed status
  • Unique drive system ensures precise and reliable zero lock/unlock operation
  • Gentle push operation after valid card reading for easy passage
  • 90/120 degree rotation per passage cycle
  • Automatic reset function with configurable timeout settings
  • Standard interfaces compatible with various reading equipment for easy system integration
  • Emergency power-off access with automatic locking restoration when power returns
  • Configurable card reading with memory and without memory functions via mainboard settings
Two Door Full Height Turnstile Prison Security RFID Card / Fingerprint Access Control 0
