SS304 Outdoor Half Height Turnstile Security QR Code Scanner Turnstile Entrance Gates
  • SS304 Outdoor Half Height Turnstile Security QR Code Scanner Turnstile Entrance Gates
  • SS304 Outdoor Half Height Turnstile Security QR Code Scanner Turnstile Entrance Gates
  • SS304 Outdoor Half Height Turnstile Security QR Code Scanner Turnstile Entrance Gates

SS304 Outdoor Half Height Turnstile Security QR Code Scanner Turnstile Entrance Gates

Place of Origin Shenzhen, China
Brand Name Sinomatic
Certification CE
Model Number SN-HH01
Product Details
Frame Material:
304 Stainless Steel
Input Voltage:
AC100V~240V, DC24V
IP Rate:
IP54
Application:
Indoor/outdoor
Package:
Plywood Box
Control Method:
RFID/Fingerprint/Face/ QR Code Etc
Highlight:

SS304 Half Height Turnstile

,

Outdoor Half Height Turnstile

,

Security SS304 turnstile entrance gates

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
Negotiable
Packaging Details
Crate
Delivery Time
7~10 days
Payment Terms
T/T, Western union, Visa, MasterCard, PayPal, Stripe, PayPal_BNPL, Apple pay, Google pay, Pix, OXXO, Billie, Online Transfer etc. Alipay
Supply Ability
1000 pcs/month
Product Description

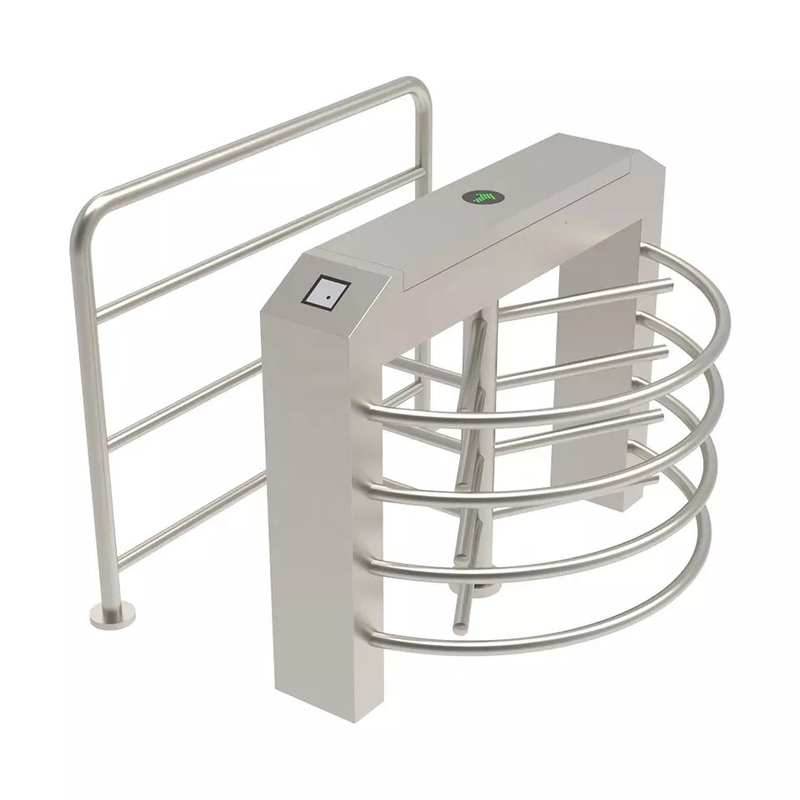

SS304 Outdoor Half Height Turnstile Security QR Code Scanner Turnstile Entrance Gates
304 Stainless Steel Outdoor Half Height Security Entrance QR Code Scanner Control Turnstile Gate
A half-height turnstile is an access controlling turnstile that reaches waist height. This is the most common turnstile size and is found installed in many indoor and outdoor locations.
SINOMATIC half height turnstile is designed with unique, strong, and durable mechanical construction to provide unsupervised access control for offices or buildings, enabling intelligent pedestrian control and management. The impenetrable construction eliminates any unauthorized access to restricted areas. To gain authorized passage through the turnstile, users must present a valid card to the access control system. Upon presentation of a valid card, the turnstile unlocks and allows passage in the requested direction. The turnstile can also work with push button, fingerprint, and face recognition access control systems.
Functions and Features
  • Automatically low noise mechanism core equipped, highly cost-effective
  • Sense positioning reduces mechanical impact for longer lifespan
  • High operating efficiency with 1-2 second open & close cycles
  • Lowest noise level: Under 30db during operation and external control
  • Self-checking and alarm warning for maintenance
  • Resetting function: System cancels authorized pass if passenger delays passage
  • Anti-following feature prevents illegal passing
  • Anti-clamp protection: Wings stop during external block and reset after default delay
  • Automatic wing locking when system doesn't receive open signal
  • Multi-passage options for various application demands, covering 99% of global needs
  • Programmable signal separate control: Pass time, pass speed, and other parameters
  • RS232/RS485 interface supports all types of communications or wireless connections (optional)
  • Long-distance management through computer
  • Customizable options: LED display, voice guide, warning lamps, indicator lights guide, audible & visible alarm
Technical Specifications
Item Specifications
Type Half height turnstile gate
Access control device (optional) QR code scanner, RFID reader, face recognition terminal, fingerprint reader, etc.
Brand Name SINOMATIC
Model Number SN-HHT01
Product name Half Height Wide Pass Passage Barrier Gate Automatic Turnstile with QR Barcode Scanner
Feature of entry/exit One person at a time
Passing Speed 30 persons/min
Motor Type Single/Double
Operating Voltage 24V
Operating Temperature -25℃ ~ +60℃
QR Code Support
Protection IP54
Direction Bi-directional
SS304 Outdoor Half Height Turnstile Security QR Code Scanner Turnstile Entrance Gates 0
