Brushed SS304 Access Control Turnstiles Temporary Visitor Card Collector
  • Brushed SS304 Access Control Turnstiles Temporary Visitor Card Collector
  • Brushed SS304 Access Control Turnstiles Temporary Visitor Card Collector
  • Brushed SS304 Access Control Turnstiles Temporary Visitor Card Collector
Brushed SS304 Access Control Turnstiles Temporary Visitor Card Collector

Brushed SS304 Access Control Turnstiles Temporary Visitor Card Collector

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-DBX100
Product Details
Cabinet Material:
Brushed 304 Stainless Steel
Cabinet Diameter:
219mm
Cabinet Shape:
Cylinder
Collection Bin Dimension:
13.5 X 13.5 X 29 Cm
Card Capacity:
Maximum 280 Cards
Weight:
15 Kg
Highlight:

brushed SS304 Access Control Turnstiles

,

219mm Access Control Turnstiles

,

SS304 Access Control Turnstile gate

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T or western Union
Supply Ability
1,000 pcs per month
Product Description
Brushed SS304 Access Control Turnstiles Temporary Visitor Card Collector
Efficient and Effective Solution for Temporary Visitor Card Collection
This card collector features stainless steel housing with optional finishes including polished, brushed, or powder coated. The stand is equipped with LED indicators and a card slot for convenient operation.
Designed for compatibility with all access control systems including full-high, tripod, optical, and rotor turnstiles. Ideal for administrative facilities, enterprises, banks, exhibition centers, museums, and similar environments.
Product Application
This dropbox is suitable for indoor applications only. It is NOT suitable for outdoor installation or use near coastal areas.
Product Specifications
Description Parameter
Power supply AC230 power input
Built in DC12V power supply
Power consumption Idle: AC 0.04A, DC 0.01A
Operation: AC 0.28A, DC 4.71-4.74A

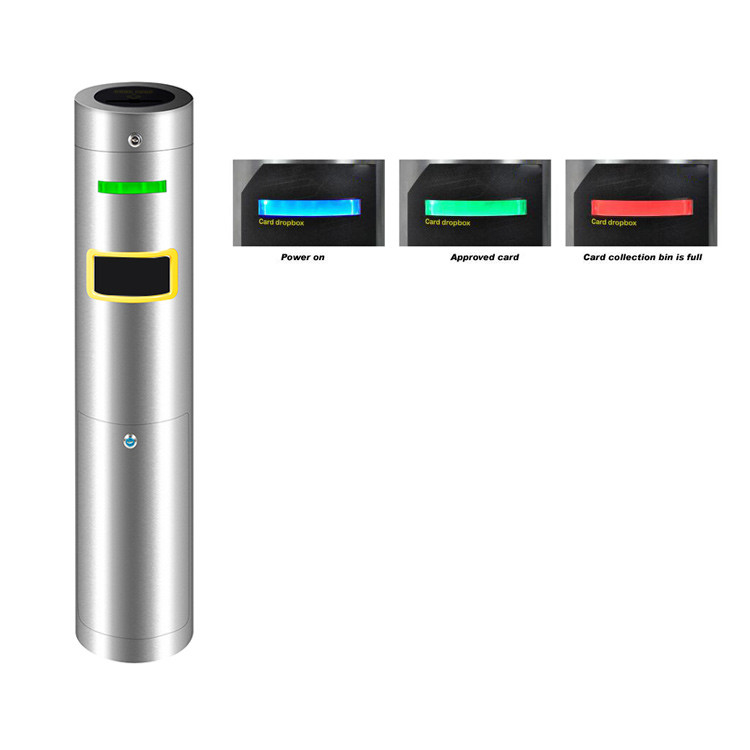

Indicated light Blue: Power On
Green: Valid card
Red: Dropbox fully occupied
Collection bin dimension 13.5 x 13.5 x 29 cm
Can contain maximum 280 cards
Maximum card size 10 (W) x 9 (H) cm
Main Functions and Features
  • DBX100 accepts cards up to 10 cm wide
  • Compatible with any brand access control reader installed inside the dropbox
  • LED indicator lights display operational status
  • Top cover accessible by key for maintenance
  • Bottom door with key access for collection bin removal
  • Automatic card rejection when collection bin is full
  • Suitable for ticketing applications with reusable proximity cards
The dropbox integrates with visitor management software (VMS) to enable automatic visitor check-out functionality. Visitors can simply drop their visitor card into the dropbox, which automatically updates their check-out status in the VMS software records.
For ticketing applications, visitors purchase entrance fees and receive proximity cards. Dropping the card into the dropbox triggers gate opening. Operators collect all tickets from the collection bin when full and can reuse the proximity cards for subsequent visitors.
Brushed SS304 Access Control Turnstiles Temporary Visitor Card Collector 0
Product Documentation
Download Dropbox Card Collector Datasheet (PDF)
