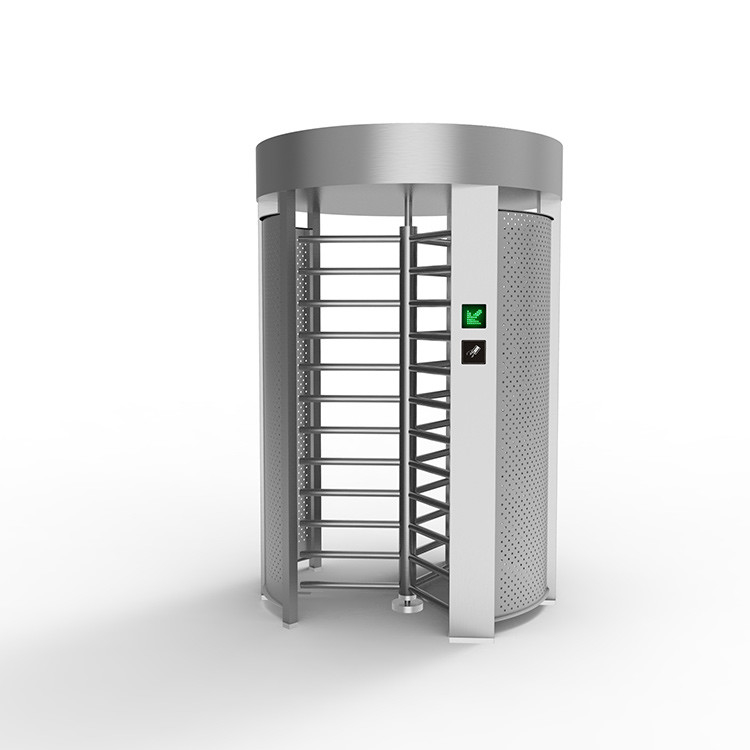

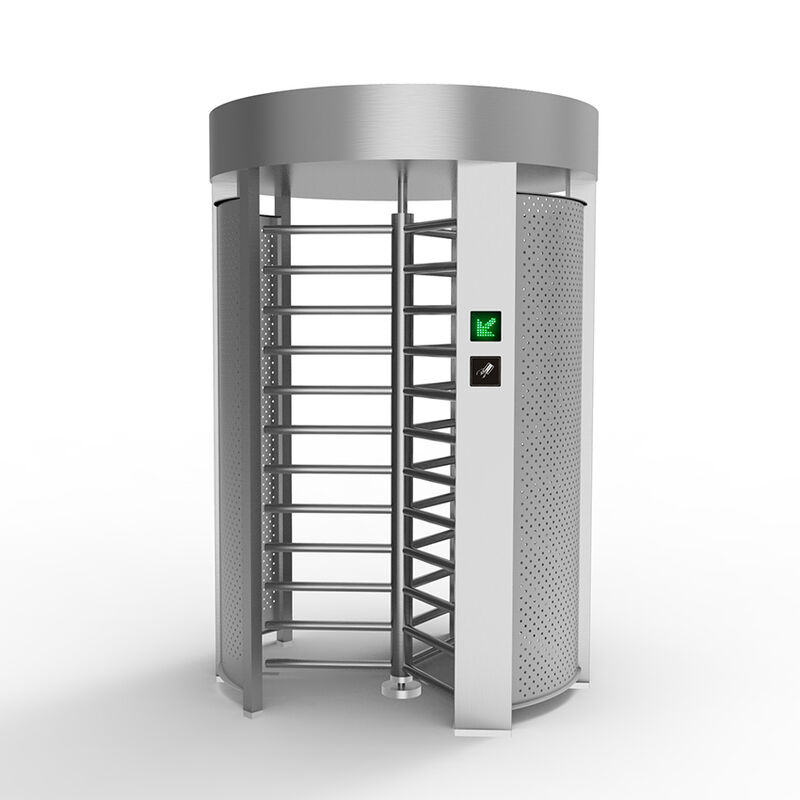

SS304 600 Mm Full Height Turnstile Gate Wired Remote Control Fail Safe

Highest Security Level Wired Remote Control Fail-Safe By Default Full Height Rotor Turnstile Gate

ABOUT SINOMATIC FULL HEIGHT TURNSTILE

SINOMATIC SN-FHT01 is a one-lane type of full height turnsle gate. It ensures vandal proof security level to large variety of possible applicaons: stadiums, factories, parks, premises with highest security requirements etc. Strenght and durability is granted by robust fully welded design. On
ther other hand, attractive for shipment assembly modificaon of automac barrier gate is also available. By default it is electromechanical.

This series full height turnstile is s a high-tech product which mainly provides high Security level management to passageway. The device use

high quality stainless steel and total water proof design, it can be installed directly outdoor. The device works in bi-direction, only after the user

access granted, the barrier can be pushed open. When power ofF, the barrier can be rotated freely for fre alarm security in fail-safe mode by

default. Or the device can be set to fail-secure mode, when power off the barrier can't be freely rotated.

KEY FEATURES

• Highest security level, which can make stricter force control than other type of turnsles


• Can be supplied as fully welded or in disassembled condion which has perfect effect to transportaon cost

• Depending on installaon place condions and customer`s requirements can be produced of different types of material, for
outside/inside applicaons, with Y-rotor/ X- rotor, electromechanical/ servo-driven, etc.

• Low noise system operaon

• Successful combinaon of affordable price and high quality

• Wide range of accessories

• Steadfast housing suitable for high traffic areas

• Can be integrated with any type of access control systems

• Low power consumpon

• Wired remote control panel is in a standard kit

• In case of power failure, fail-secure by default (rotor locked in both direcons);

MAIN FUNCTION AND FEATURES

1. Rainproof housing, anti-corrosion coating iron, 304 or 316 stainless steel.

2. Mechanical drive unit with solenoid locking mechanism eliminate the use of expensive electric motor and reduce maintenance cost.

3. If arm rotated more than half, it will auto-rotate to the next idle position. If arm rotated less than half, it will auto-rotate back to the current idle position.

4. Built in adjustable tensioner to control rotation force to minimize over rotation. Arm just need to be pushed lightly to rotate therefore even elderly or children are able to use the turnstile.

5. Turnstile can be configured to be bi-directional or uni-directional. Housing is locked with special key to avoid tampering.

6. Innovative and unique mounting surface ensures simple and convenient installation for system integrator.

7. Can be used with variety of access control devices: IC / ID card readers, bar-code scanner, fingerprints, etc. (Access controller needed)

8. Automatic reset function. Should the user fail to pass within the prescribed time (default time is 5 seconds), the system will cancel the authority of the current user automatically.

9. The mechanism is equipped with an automatic regulated hydraulic buffer device. There is no noise and impact when running.

TECHNICIAL SPECIFICATIONS
