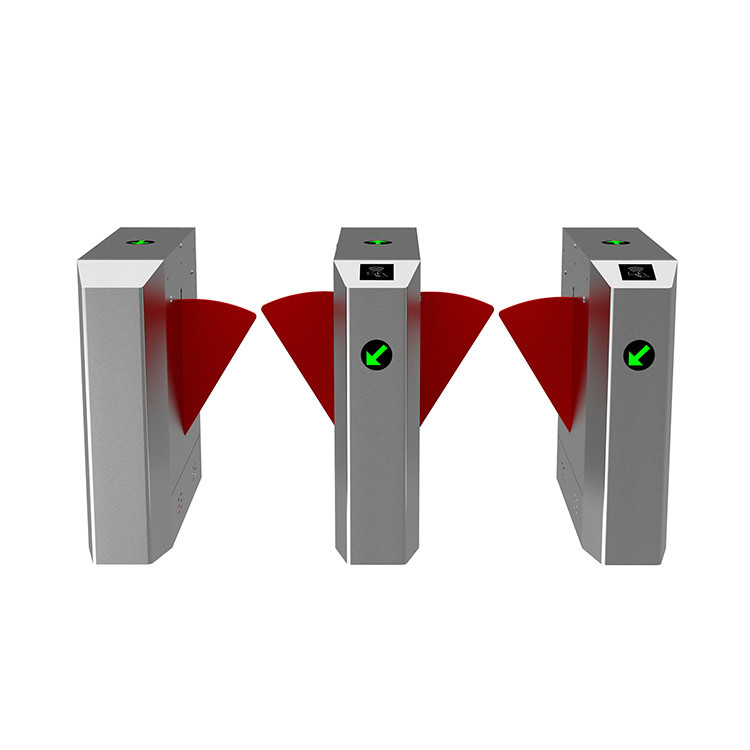

BLDC Motorized Speed Gate Turnstile Retractable Flap Barrier Gate
  • BLDC Motorized Speed Gate Turnstile Retractable Flap Barrier Gate
  • BLDC Motorized Speed Gate Turnstile Retractable Flap Barrier Gate
  • BLDC Motorized Speed Gate Turnstile Retractable Flap Barrier Gate

BLDC Motorized Speed Gate Turnstile Retractable Flap Barrier Gate

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-FB01
Product Details
Cabinet Material:
SS304(default)
Flap Material:
Acrylic, PU Foam
Motor Voltage:
DC 24V
Passing Direction:
Single Directional / Bi-directional
Power Input:
AC100V~240V; DC24V
Motor Type:
BLDC
High Light:

BLDC Motorized Speed Gate Turnstile

,

SS304 Speed Gate Turnstile

,

Retractable Flap Barrier Gate

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T or western Union
Supply Ability
3,000pcs per month
Product Description

BLDC Motorized Speed Gate Featured With Retractable Flaps Operaon Principle



PRODUCT DESCRIPTION



Flap barrier – is a type of motorized speed gate featured with retractable flaps operaon principle. Housing materials and light weight cabinets' shape make flap barrier turnsle universal for large variety of facilies with heightened requirements to esthec equipment appearance. As well as other SINOMATIC automatic turnstile, flap barrier has implemented an-tailgang funcon. It can be operated from remote control panel or via access control system(optional)



MAIN FUNCTION AND FEATURES



1. Fault detection and alarm functions, easy to use and maintenance.



2. The running status can be programmed and controlled with the built-in keyboard on the main board.



3. Mechanical anti-pinch function. If the gate meets resistance in the reset process, motors will stop

working automatically within the prescribed time and reset again after the default delay (till fully reset).



4. Anti-breakthrough function. The gate is locked automatically until opening signal received.



5. Synchronization functions (for dual gate equipment).



6. Automatic reset function. Should the user fail to pass within the prescribed time (default time is 5 seconds),

the system will cancel the authority of the current user automatically.



7. Gate can be set as normally open or normally closed.



8. Can be used with variety of card readers: IC / ID card readers, bar codes, fingerprints, etc. (Access controller needed).



9. Direction can be set as single-direction or bi-direction.



10. LED direction indicator.



11. Gate auto opens when power off and auto close when power on, complying with fire safety requirements.



12. Alarm function, in case of illegal intrusion and reverse intrusion, etc.



13. Counter function (optional).



14. Support infrared photocell for anti-pinch and reset function.



TECHNICIAL SPECIFICATIONS



Description Parameters
Lane Width 550-600mm
IP IP54
Pass Speed 30 persons/min
Power supply AC220V/110V,50/60Hz, DC24V
Drive Mode Motor drive
Max Power Consumption 100W
Opening time 0.5S
Humidity ≤90% coagulation free
Noise ≤50dB
Service Life More than 5,000,000 cycles
Plywood packing 130x40x116cm
Working Environment -20°C~+60°C
Gross Weight with plywood packing 85KGS





Application



Sinomatic full automatic flap barrier gate are widely used in the following sites:

  • Banks, insurance companies
  • Governmental and institutional establishments
  • Office buildings, registered offices, administrative sites...
  • Schools, universities and colleges
  • Sensitive sites : military, nuclear, pharmaceutical, computer centers...
  • Airports

BLDC Motorized Speed Gate Turnstile Retractable Flap Barrier Gate 0
