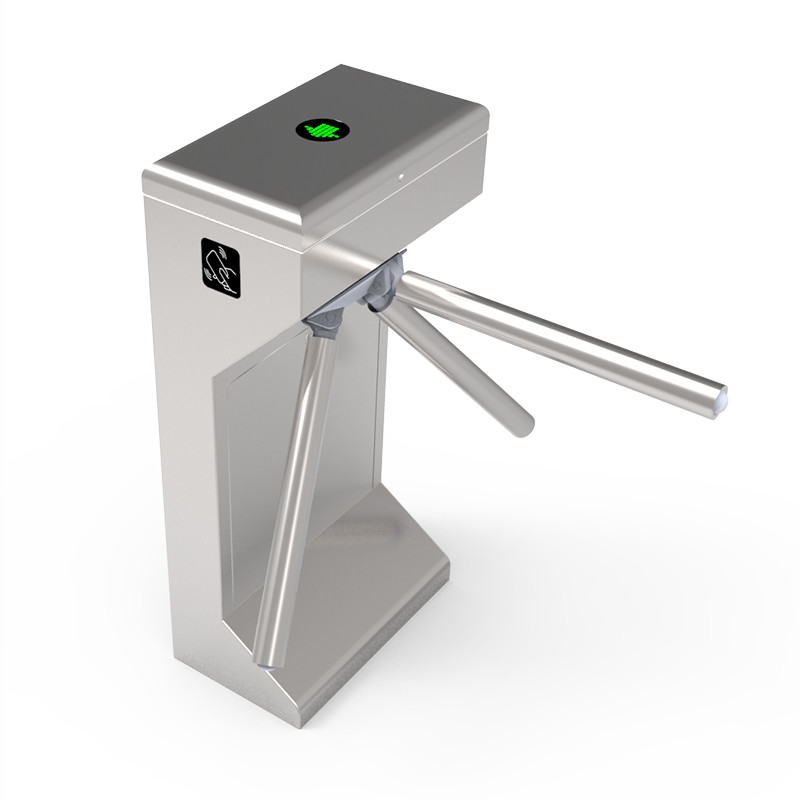

LED Indicator Tripod Turnstile Gate SS304 One Leg Base Access System
  • LED Indicator Tripod Turnstile Gate SS304 One Leg Base Access System
  • LED Indicator Tripod Turnstile Gate SS304 One Leg Base Access System

LED Indicator Tripod Turnstile Gate SS304 One Leg Base Access System

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-TT01
Product Details
Control Voltage:
DC24V
Gate Open Signal:
Dry Contact/ Relay
Default Material:
SS304
Optional Material:
SS316/MS With Painting
Material Thickness:
1.2mm
IP Rate:
IP54
High Light:

IP54 tripod turnstile gate

,

painting tripod turnstile gate

,

SS304 tripod security gates

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T, Western Union, MoneyGram
Supply Ability
3,000pcs per month
Product Description

One leg base access system top LED indicator tripod arm turnstile gate



INTRODUCTION

This equipment is integrated with mechanism, electric and micro-controller and various kinds of identification technologies, compatible with IC, ID, barcode, fingerprint reader and so on to provide intelligent control and management to flow control. Durable, anti-rusty. provide orderly passage to people, anti-illegal entry or exit, smooth operation, low noise. arm drops off in condition of emergencies.



APPLICATION

This model is widely used in bus station, port, subway, factory, mansion, residential area, hotel, company and so on any place that requires a smart flow control.



TECHNICIAN SPECIFICATIONS



Technical parameters
Power voltage
AC220 ±10%V/50 ±10%HZ
Open angle
120°
Communication mode
232/485 TCP/TP
Pass speed
≦35 person/minutes
Movement
Hydraulic movement
Structure
1.2mm thick 304 stainless steel
Relative humidity
None-condensation
Open direction
Single and Double(optional)
Input signal
12v DC level or Dry contact signal
Work environment
Outdoo and indoor
Working Current
≤2000mA
Temperature
-20 ℃-- 60 ℃
Length of the bar
510mm
Width of passage
≤550mm



Main function and features



1. Tripod security gate is a compact and cost-effective entrance solution.


2. Tripod security gate has fully rainproofed 304 stainless steel housing, which is rust-resistant, solid, durable.


3. Tripod security turnstile can be mounted for both indoor and outdoor locations. The IP rate is 54


4. It has an international standard relay output, which can be easily integrated with all kinds of third-party access control systems (i.e RFID, Fingerprint, Face, Barcode, IR thermometer).


5. This model of Tripod security gate is a semi-automatic one. You will need to push the arm slightly to open the gate when access is granted.
The reasonable design and high performance are to ensure the gates can move quickly and accurately, stably and quietly; with low-power consumption, energy conservation, and environment protection.


6. Durable, corrosion-resistant, heavy-duty, mold mechanism for extended service life


7. The mechanism is mold design. All the components are precise. It makes the gate system operate smoothly, with low noise. A hydraulic damper can be added.


8. The design of the tripod security turnstile makes only one person pass at one time.



9. Single-directional or Bi-directional is supported.



10. LED directional indicator light on top of the housing


11. Automatic clock function: if there is an open signal received, but the visitor does not pass through the gate within a specific time (default 5s), the turnstile arm will lock automatically.


12. When power off, tripod turnstile arms will drop down automatically to allow free passage, which is complying with fire safety requirements.



LED Indicator Tripod Turnstile Gate SS304 One Leg Base Access System 0
