Bi Direction Full Height Turnstile Relay Signal / Dry Contact Signal Control
  • Bi Direction Full Height Turnstile Relay Signal / Dry Contact Signal Control
  • Bi Direction Full Height Turnstile Relay Signal / Dry Contact Signal Control
  • Bi Direction Full Height Turnstile Relay Signal / Dry Contact Signal Control
Bi Direction Full Height Turnstile Relay Signal / Dry Contact Signal Control

Bi Direction Full Height Turnstile Relay Signal / Dry Contact Signal Control

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-FH02
Product Details
Transit Speed:
30~35 Person/min Per Lane
Power Voltage:
DC 24V / 50W
Response Time:
Less Than 0.2s
Surface Treatment:
Brushed
IP Rating:
54
Operation Time:
≥10 Million Times
Highlight:

Bi Direction Full Height Turnstile

,

Double Passage Full Height Turnstile

,

Brushed Full Height Turnstile gate

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T,Western Union,
Supply Ability
200 pcs per month
Product Description
Bi Direction Full Height Turnstile Relay Signal / Dry Contact Signal Control
Relay Signal Dry Contact Signal Control Double Passage Bi-Direction Full Height Turnstile

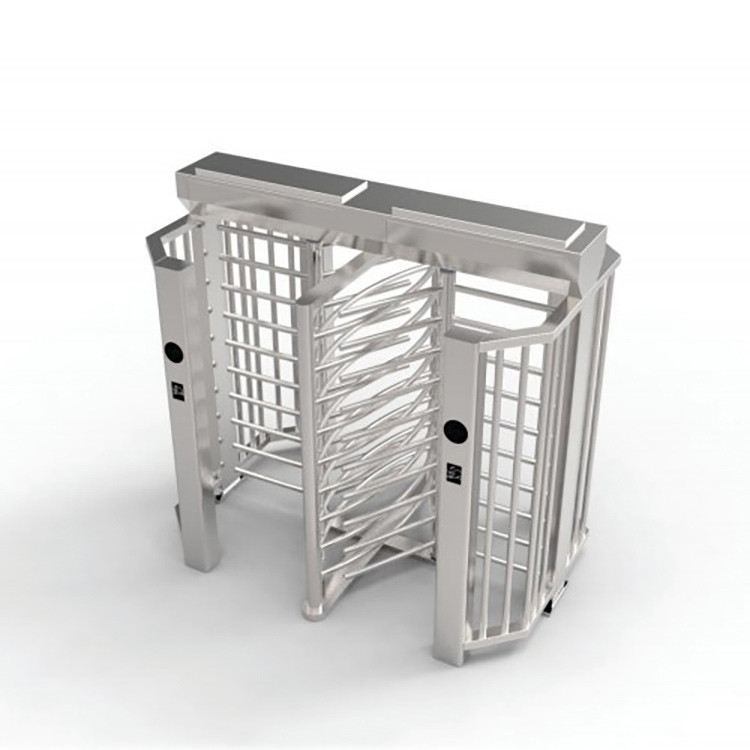

This semi auto stainless steel dual lane full-height turnstile offers maximum access security control. Users are unable to crawl underneath or climb over to gain unauthorized access into premises.
The full height turnstile effectively controls single pass-through each time. Built with high-quality materials for advanced reliability and vandal resistance, it is suitable for outdoor usage in high-traffic environments.
The semi auto turnstile operation is based on a solenoid lock that blocks rotation direction.
Product Overview
A robust and durable gate is essential, especially for outdoor applications. Intruders may attempt to exploit security vulnerabilities or vandalize the gate to gain unauthorized access when unattended. This concerns without the high cost of European brands.
Advanced Anti-Reverse Security
SINOMATIC SLAR (single-level anti-reverse) lock design prevents unauthorized entry by stopping intruders from reversing the arm rotation after valid access.
Enhanced Durability
The heavy-duty shock absorber reduces impact and vibration during operation, minimizing mechanical wear and lowering maintenance costs.
Emergency Safety Features
Manual unlocking capability during power failures allows free arm rotation for fast emergency evacuation while maintaining security during normal operation.
Cost-Effective Transportation
The tripod arm splits into three separate pieces to reduce transportation costs, with easy on-site assembly.
Technical Specifications
Parameter Specification
Power Supply Input AC100V~240V; 50Hz/60Hz
Power Voltage DC 24V / 50W
Open Signal Passive signals (relay signals, dry contact signals)
Passage Width ≤650mm
Response Time ≤0.2s
Optimal Pass Speed 30-35 person/min
Housing / Arm Material 304 Stainless Steel
Arm Rotation Angle 90/120 degree
Working Environment Indoor and outdoor
Working Temperature -20°C to +70°C
IP Rating IP54
Housing Dimension 2400mm (W) x 1580mm (L) x 2300mm (H)
Operations Time ≥10 million times
Bi Direction Full Height Turnstile Relay Signal / Dry Contact Signal Control 0
Key Features & Functions
  • 304 stainless steel housing with customizable appearance options
  • Clear access direction indication with intuitive LED traffic lights showing pass/closed status
  • Unique drive system for precise and reliable zero lock/unlock operation
  • Gentle push operation after valid card reading for user convenience
  • 90/120 degree rotation per passage for controlled access
  • Automatic reset function with configurable timeout settings
  • Standard interfaces compatible with various reading and writing equipment for easy system integration
  • Emergency power-off functionality allowing free access both ways while maintaining automatic locking when powered
  • Configurable card reading with memory and non-memory functions via mainboard settings
