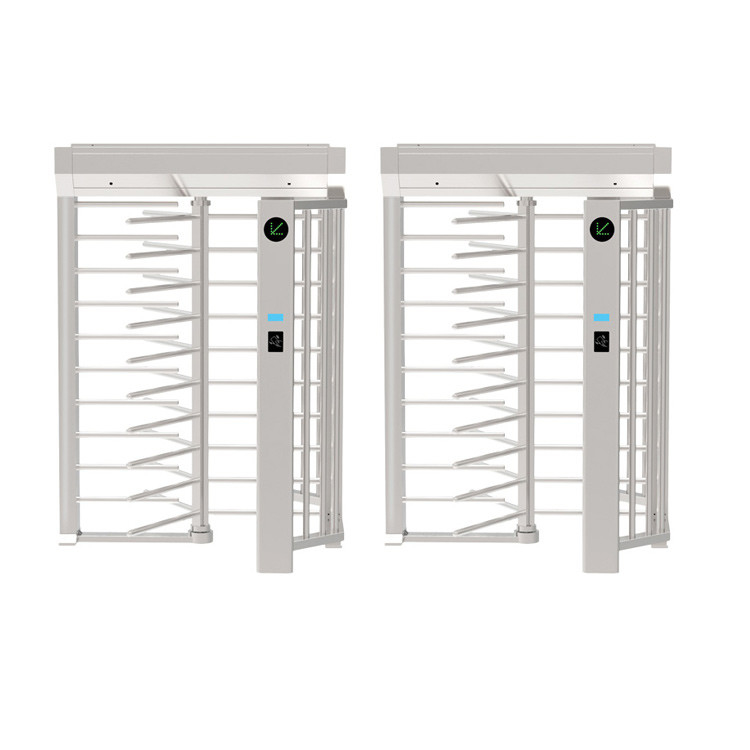

90 / 120 Degree Rotation Full Height Turnstile Gate Semi Automatic 650mm Passage Width
  • 90 / 120 Degree Rotation Full Height Turnstile Gate Semi Automatic 650mm Passage Width
  • 90 / 120 Degree Rotation Full Height Turnstile Gate Semi Automatic 650mm Passage Width
  • 90 / 120 Degree Rotation Full Height Turnstile Gate Semi Automatic 650mm Passage Width
90 / 120 Degree Rotation Full Height Turnstile Gate Semi Automatic 650mm Passage Width

90 / 120 Degree Rotation Full Height Turnstile Gate Semi Automatic 650mm Passage Width

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-FH01
Product Details
Frame Material:
SS304 Stainless Steel
Transit Speed:
30~35 Person Per Min
Power Voltage:
DC 24V / 50W
Package:
Wooden Box
Response Time:
Less Than 0.2s
Working Environment:
Indoor / Outdoor
Highlight:

Rotation Full Height Turnstile Gate

,

Semi Automatic full height turnstile gate

,

650mm Full Height Turnstile

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T,Western Union,
Supply Ability
200 pcs per month
Product Description
90/120 Degree Rotation Full Height Turnstile Gate - Semi Automatic 650mm Passage Width
This semi-automatic stainless steel full-height turnstile provides maximum access security control. This robust solution prevents unauthorized access by eliminating opportunities to crawl underneath or climb over the barrier. Each rotation allows only single-person passage, ensuring controlled entry and exit.
Applications
Suitable for both indoor and outdoor installations, this turnstile offers an economical security solution for factories, colleges, commercial buildings, stadiums, game parks, prisons, and various other facilities requiring controlled access.
Key Features
  • Constructed with 304 stainless steel housing and anti-rust internal components for exceptional durability
  • Configurable for bi-directional or uni-directional operation
  • Easy integration with third-party access control or ticketing systems via dry contact interface
  • Withstands resistant force up to 70kg when locked to prevent forced entry
  • Anti-tailgating mechanism with smart lock system prevents multiple persons from passing
  • Power failure mode allows free access (default) or locked position (optional)
  • Memory function records passing sequence and processes requests accordingly
  • LED traffic light indicators for clear access direction guidance
  • Automatic reset function with configurable timing
  • Standard interfaces for easy system integration with various reading equipment
Technical Specifications
Power Supply Input AC 220V 50HZ; 110V, 60HZ
Power Voltage DC 24V / 50W
Open Signal Passive signals (relay signals, dry contact signals)
Passage Width ≤650mm
Response Time ≤0.2s
Optimal Pass Speed 30-35 person/min
Housing / Arm 304 Stainless Steel
Arm Rotation Angle 90/120 degree
Working Environment Indoor and outdoor
Working Temperature -20°C to +70°C
IP Rating IP 54
Operations Time ≥10 million times
Product Dimensions
90 / 120 Degree Rotation Full Height Turnstile Gate Semi Automatic 650mm Passage Width 0
Detailed Functionality
  • Customizable 304 stainless steel housing design options available
  • Clear LED traffic light indicators show pass/closed status
  • Unique drive system ensures precise zero lock and unlock operation
  • Gentle push operation required after valid card reading
  • 90/120 degree rotation per passage cycle
  • Automatic reset function with configurable timing parameters
  • Standard interfaces compatible with various reading and writing equipment
  • Power-off free access mode with automatic locking upon power restoration
  • Configurable memory function for access sequence tracking
