Semi Auto Full Height Turnstile Single Lane Access Control Reader Building Outer Entrance
  • Semi Auto Full Height Turnstile Single Lane Access Control Reader Building Outer Entrance
  • Semi Auto Full Height Turnstile Single Lane Access Control Reader Building Outer Entrance
  • Semi Auto Full Height Turnstile Single Lane Access Control Reader Building Outer Entrance
Semi Auto Full Height Turnstile Single Lane Access Control Reader Building Outer Entrance

Semi Auto Full Height Turnstile Single Lane Access Control Reader Building Outer Entrance

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-FH01
Product Details
Input:
AC 220V/ AC110V ± 10%
Frame Material:
SS304 Stainless Steel
Transit Speed:
30~35 Person Per Min
Power Voltage:
DC 24V / 50W
Package:
Wooden Box
Response Time:
≦0.2s
Highlight:

Semi Auto Full Height Turnstile

,

50W Full Height Turnstile

,

Single Lane full height turnstile gate

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T,Western Union,
Supply Ability
200 pcs per month
Product Description

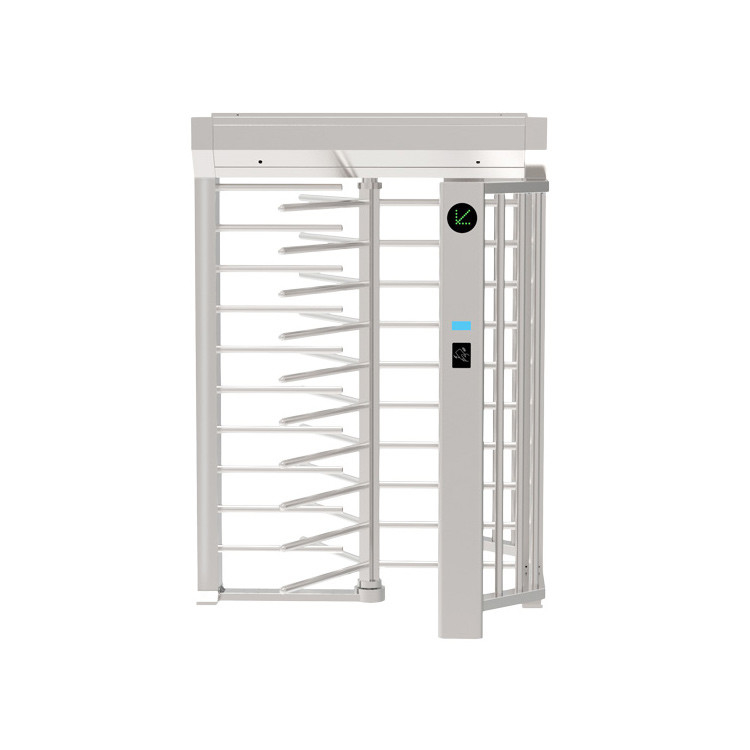

Semi Auto Full Height Turnstile Single Lane Access Control Reader
Robust single lane full height turnstile designed for building outer entrances with access control systems. This model provides maximum security by preventing climbing over or crawling under attempts.
Advanced Security Features
This semi-auto full height turnstile is engineered for outdoor building entrances where unauthorized access prevention is critical. Our SINOMATIC SLAR (single-level anti-reverse) lock design eliminates security loopholes that could allow unlimited unauthorized entry.
Enhanced Durability & Safety
Built with heavy-duty shock absorbers to reduce mechanical wear and maintenance costs. Manual unlocking capability during power failures ensures safe emergency evacuation.
Semi Auto Full Height Turnstile Single Lane Access Control Reader Building Outer Entrance 0
Cost-Effective Design
Our innovative three-piece arm design significantly reduces transportation costs while maintaining easy on-site assembly without compromising security or durability.
Semi Auto Full Height Turnstile Single Lane Access Control Reader Building Outer Entrance 1
Key Features & Functions
  • 304 stainless steel housing with customizable appearance options
  • Clear directional indicators with intuitive LED traffic light signals
  • Unique drive system for precise and reliable locking/unlocking operation
  • Gentle push operation after valid card reading
  • 90/120 degree rotation per access cycle
  • Automatic reset function with configurable time settings
  • Standard interfaces compatible with various access control readers
  • Emergency free access during power failure with automatic locking restoration
  • Configurable card reading with memory and memory-less functions
Technical Specifications
Parameter Specification
Power Supply AC220±10%V 50Hz/AC110±10% 60Hz
Power Consumption 50W
Access Device Input Voltage Dry contact or 12V electrical level signal or > 100ms 12V impulse signal, driving current > 10mA
Maximum Flow Rate 30 to 35 persons per minute
Arm Length ≤ 600mm
Passage Width ≤ 650mm
Working Temperature -20°C~60°C
Current 3A
Control Circuit DC24
Working Humidity 0~95%RH
Arm Diameter 38mm

Tags:

full height barriers,

turnstiles full height,

revolving turnstile
