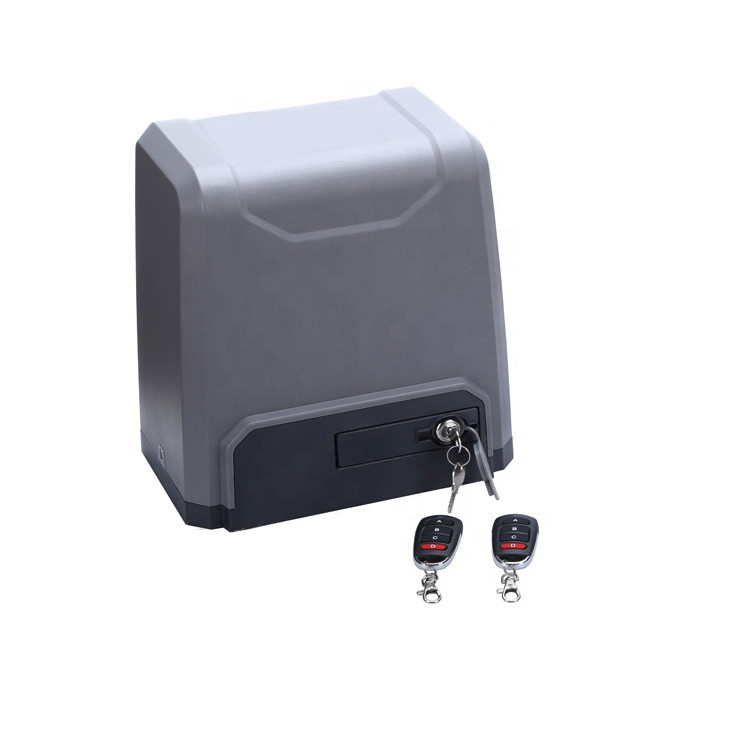

220V 110V Automatic Sliding Gate Opener 2000kg Loading Capacity 750W Motor Power
  • 220V 110V Automatic Sliding Gate Opener 2000kg Loading Capacity 750W Motor Power
  • 220V 110V Automatic Sliding Gate Opener 2000kg Loading Capacity 750W Motor Power
  • 220V 110V Automatic Sliding Gate Opener 2000kg Loading Capacity 750W Motor Power

220V 110V Automatic Sliding Gate Opener 2000kg Loading Capacity 750W Motor Power

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-SL2000AC
Product Details
Max.gate Weight:
2000 KG
Power Supply:
AC110V/220V
Motor Power:
750W
Packing Weight:
16kg
Application:
Indoor/outdoor
Remote Control Mode:
Single Button/three Button
High Light:

AC motor automatic sliding gate opener

,

automatic sliding gate opener 750W

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T, Western Union, MoneyGram
Supply Ability
2,000 pcs per month
Product Description

2000kg Loading Capacity 750W Motor Power 220V 110V Automation Sliding Gate Operator



MAIN FEATURES

1. AC motor with built-in control unit

2. Keypad/single button interface

3. Alarm lamp, photo beam and safety beam interface

4. User can select auto-close function

5. Soft start and slow stop(smart version, optional)

6. Auto-reverse function when hitting obstacle during closing(smart version, optional)

7. Manual key release design for emergency power failure

8. Gear driven with built-in control board.

9. RF Hopping Code Technology prevents your remote code from being accessible to others.

10. In case of a power outage or an emergency you may also use manual release key.

11. The remote control has 4 buttons, corresponding to open/close/stop.

12. You can add up to 25 extra remotes that can control this system.


Our advantages


A. Compatible with a variety of access control systems: Access to infrared sensors, human body sensors, remote control, face recognition attendance machine, ICID card reader, button switch, mobile phone Bluetooth and other switch signals of access control system, so as to automatically open door and automatically delay close door .
B. The holding time, speed and strength of the door can be adjusted within the allowable range.
C. This equipment has the function of resistance reversal, and can also be added with infrared induction for the second protection.
D. It has the function of fire fighting linkage.

TECHNICIAL SPECIFICATIONS



Model SL2000AC
Driven Mode Gear
Opening Speed 13m/min
Motor Power 750W
Remote Control Mode Single button
Output Torque 22N.m
Work Duty S2 20min
Limit Switch Magnetic or spring limit switch
Max. Gate Weight 2000KG
Opening Speed 13m/min
Remote Control Range ≥30M
Recording of Up Remote Controls Max. 25 remote transmitters
Frequency 433.92Hz
Noise (No Load) ≤58dB
Output Shaft Height 50mm
Working Temperature -20℃~70℃
Power Supply 220V/50Hz(Optional: 110V/60Hz)
Package Weight 16KG
Standard Configuration 1 motor, 1 built-in control board, 2 remote controls, 2 keys
Optional Accessories

Photocell, steel gear rack, alarm wall lamp, wireless keypad,
wireless wall button

Related model

Soft Start Soft Close Sliding Gate Opener
Applicable swing door
600kg, 800kg, 1000kg.1500kg.2000kg
Remote control distance
30 m
Gate moving speed
11-13m/min
Working temperature
-20℃~+70℃
Warranty
2 year
Motor voltage
220V,50Hz/110V,60Hz
Power
150 W-750 W 600 KG-2000 KG



Application:
A variety of public access doors, campuses, factories, office buildings, shopping malls, parking lots, etc. Realize contactless automatic door opening and closing.



Functions:
A. Compatible with a variety of access control systems: Access to infrared sensors, human body sensors, remote control, face
recognition attendance machine, ICID card reader, button switch,and other switch signals of access control system, so as to automatically open door and automatically delay close door .
B. The holding time, speed and strength of the door can be adjusted within the allowable range.
C. This equipment has the function of resistance reversal, and can also be added with infrared induction for the second
protection.
D. It has the function of fire fighting linkage.



220V 110V Automatic Sliding Gate Opener 2000kg Loading Capacity 750W Motor Power 0

Installation

SL800AC/SL1000AC/SL1500AC/SL2000AC sliding gate opener is applicable to gate weight less than 800kg/1000kg/1500kg/2000kg, and length of the sliding gate less than 12m. The drive mode adopts the rack and gear transmission. This gate opener must be installed inside the enclosure or yard for protection.

Installation procedures

Preparation work before installation
Please make sure that the sliding gate is correctly installed, the gate rail is horizontal, and the gate can be manually moved smoothly before installing the gate opener.

Cable installation
In order to guarantee the normal operation of the gate opener and protect the cables from damages, please bury the motor & power cable and controlling cable separately with two PVC tubes.

Concrete pedestal
Please precast a concrete pedestal with the size can be 500mm x 300mm, depth be 250mm in advance, so as to firmly install SL800AC/SL1000AC/SL1500AC/SL2000AC gate opener. Please make sure the distance between the gate and gate opener is appropriate before
casting the pedestal.


Main engine installation

a) Dismantle the plastic housing on the main engine before installation and keep the relevant fasteners properly;
b) Please prepare the power line for connecting the mounting plate to the main engine (the number of power supply cable cores should not be less than 3 PCS, the sectional area of cable core should be over 1.5mm² and the length should be determined by users according to the situation on installation spot)
c) Please unlock the main engine before installation, the unlock method is: remove the rubber key cover, insert the key, and open the manual release bar till it rotates by 90° as shown in Figure 5. Then turn the output gear and the gear can be rotated easily;

FOR MORE DETAILS, PLEASE CLICK THE BELOW LINK TO DOWNLOAD THE USER MANUAL.

SL800,1000,1500,2000AC User Manual.pdf
