Soft Stop Function Sliding Gate Motor 800kg Gate Weight Loading Capacity
  • Soft Stop Function Sliding Gate Motor 800kg Gate Weight Loading Capacity
  • Soft Stop Function Sliding Gate Motor 800kg Gate Weight Loading Capacity
Soft Stop Function Sliding Gate Motor 800kg Gate Weight Loading Capacity

Soft Stop Function Sliding Gate Motor 800kg Gate Weight Loading Capacity

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-PY800AC
Product Details
Motor Power:
370W
Max.gate Weight:
800 KG
Drive:
Gear Driven
Recording Of Up Remotes:
20 Pcs / 40pcs
Smart Function:
Soft Start And Stop
Gate Moving Speed:
11~13m/min
Highlight:

Grey Cabinet Sliding Gate Motor

,

800kg Loading Sliding Gate Motor

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T, Western Union,
Supply Ability
1,000 pcs per month
Product Description
Soft Stop Function Sliding Gate Motor - 800kg Capacity
Heavy-duty grey cabinet sliding gate motor with 800kg weight loading capacity and advanced soft stop function for commercial and industrial applications.
Technical Specifications
ModelPY800AC
Power Supply220V/50Hz; 110V/60Hz
Max. Gate Weight800KG
Motor Power370W
Gate Moving Speed11-13 m/min
Limit SwitchSpring (mechanical) / magnetic
Recording of up Remotes20 pcs / 40 pcs
Decoding / FrequencyRolling code / 433.92MHz
Work DutyS2 20min
Noise≤58dB
Work Temperature-20°C~70°C
Soft Stop Function Sliding Gate Motor 800kg Gate Weight Loading Capacity 0
Product Features
  • AC motor with built-in control unit
  • Keypad / single button interface
  • Alarm lamp, photo beam & safety beam interface
  • User-selectable auto-close function
  • Soft start and slow stop functionality (Smart version)
  • Auto-reverse function when hitting obstacles during closing (Smart version)
  • Manual key release design for emergency purposes
Industrial Applications
PY series gate openers are engineered for commercial and industrial use, supporting gate weights from 800kg to 2000kg with operating distances up to 12 meters (depending on model).
Design Advantages
  • Oil lubrication system for extended durability
  • Heavy-duty construction with generous appearance
  • Compact structure with cost-effective operation
  • Built-in control board or separate control box options
  • Optional spring limit switch or magnetic limit switch
  • Complete installation accessories included

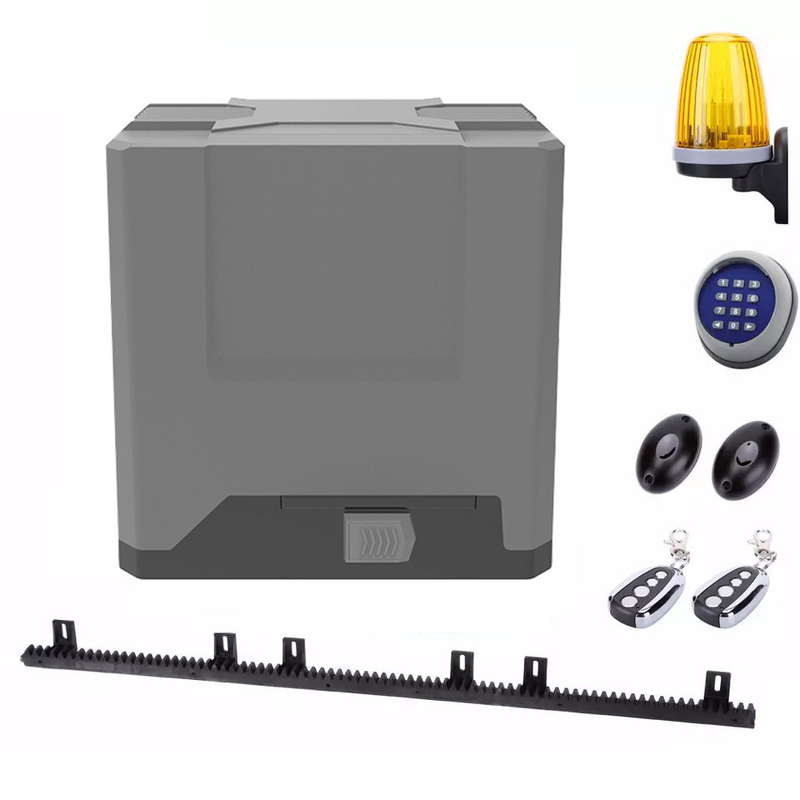

Standard Unit Components
  • Gate Motor
  • Control board & box
  • 2 remote controls
  • Manual release key
  • User manual
  • Bolts & nuts
Optional Accessories
  • Metal Gear Rack & Nylon Gear Rack (order according to gate length)
  • Photo beam sensor
  • Keypad systems
  • Push button
  • Warning light
  • Solar panel (For DC motor only)
  • Backup batteries (For DC motor only)
Installation Information
Before You Start
The PY800AC Sliding Gate Automation Kit is designed for gates up to 800kg in weight and 12m in length. Gate motion is achieved through the rotating output gear driving the gear rack fitted to the moving gate.
Important Safety Notice: The opener must be fitted within private property, never externally to a property's boundary. All work must be completed with power off and the opener unplugged. Modifications to AC power components must only be completed by a licensed electrician.
Documentation
For complete installation and operation details, download the comprehensive user manual:
Download User Manual (PY800AC, PY1000AC, PY1500AC, PY2000AC)
