Slow Start And Soft Stop Function Sliding Gate Opener 500 KG Loading DKC500AC
  • Slow Start And Soft Stop Function Sliding Gate Opener 500 KG Loading DKC500AC
  • Slow Start And Soft Stop Function Sliding Gate Opener 500 KG Loading DKC500AC
Slow Start And Soft Stop Function Sliding Gate Opener 500 KG Loading DKC500AC

Slow Start And Soft Stop Function Sliding Gate Opener 500 KG Loading DKC500AC

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-DKC500AC
Product Details
Motor Type:
AC
Motor Power:
280W
Loading Weight:
500 KG
Gate Move Speed:
11~13m/min
Power Supply:
220V/110V
Highlight:

Auto Close Sliding Gate Opener

,

500 Kg Loading Sliding Gate Opener

,

AC Motor Sliding Gate Opener

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T, Western Union,
Supply Ability
1,000 pcs per month
Product Description
DKC500AC 500 Kg Gate Weight Capacity Sliding Gate Opener
Professional sliding gate opener with slow start and soft stop function, designed for smooth and reliable gate operation.
Product Features
  • AC gate opener with advanced motor technology
  • New sealed motor with encoder for precise control
  • Slow start and soft stop functionality
  • Keypad and single button interface options
  • Photo beam safety beam interface
  • Auto-close function selection available
  • Manual key release for emergency operation

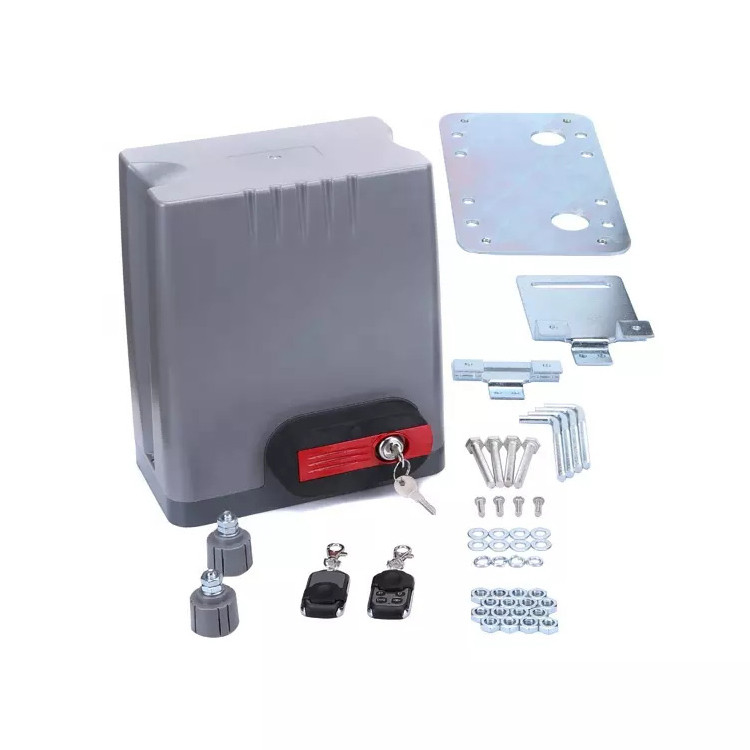

DKC500AC Sliding Gate Opener unit showing modern design and construction
Technical Specifications
Model DKC500AC DKC800AC
Color Blue/Gray/Black
Max gate weight 600KG 800KG
Motor power 280W 380W
Limit switch Spring (mechanical) / magnetic limit switch
Gate move speed 11m/min or 13m/min
Remote control range >30M
Decoding / Frequency Rolling code / 433.92MHz
Work Duty S2 20min
Noise ≤58dB
Work Temperature -20°C~70°C
Gross weight 9KG
Design style Modern
Origin China
Optional Accessories
  • Metal Gear Rack & Nylon Gear Rack (order according to gate length)
  • Photo beam sensor
  • Keypad systems
  • Push button
  • Warning light
  • Solar panel
  • Backup batteries
Installation Requirements
DKC500AC/DKC800AC sliding gate opener is designed for gates weighing less than 500kg/800kg with sliding gate length less than 8m. The drive mode utilizes rack and gear transmission. This gate opener must be installed inside the enclosure or yard for protection.
Installation Procedures
Preparation Work
Ensure the sliding gate is correctly installed, the gate rail is horizontal, and the gate can be manually moved smoothly before installing the gate opener.
Cable Installation
Bury motor & power cable and controlling cable separately with two PVC tubes to guarantee normal operation and protect cables from damage.
Concrete Pedestal
Cast a concrete pedestal (400mm x 250mm, depth 200mm) in advance to firmly install the gate opener. Verify appropriate distance between gate and gate opener before casting the pedestal.
Download User Manual
