Pedestrian Access Control Traffic Tripod Turnstile Gate 30 People Per Minute
  • Pedestrian Access Control Traffic Tripod Turnstile Gate 30 People Per Minute
  • Pedestrian Access Control Traffic Tripod Turnstile Gate 30 People Per Minute
Pedestrian Access Control Traffic Tripod Turnstile Gate 30 People Per Minute

Pedestrian Access Control Traffic Tripod Turnstile Gate 30 People Per Minute

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-TT01
Product Details
Power Supply Input:
AC220/110V (± 10%)
Power Voltage:
DC 24V
Pass Speed:
30 Person Per Minute
Arm Lenght:
500mm
Housing / Arm:
304 Stainless Steel
Package Width:
600mm
Highlight:

High Volume Human Tripod Barrier

,

DC 24V Pedestrian Tripod Gate Barrier

,

Corrosion Resistant Tripod Barrier Gate

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T,Western Union,
Supply Ability
1,000 pcs per month
Product Description

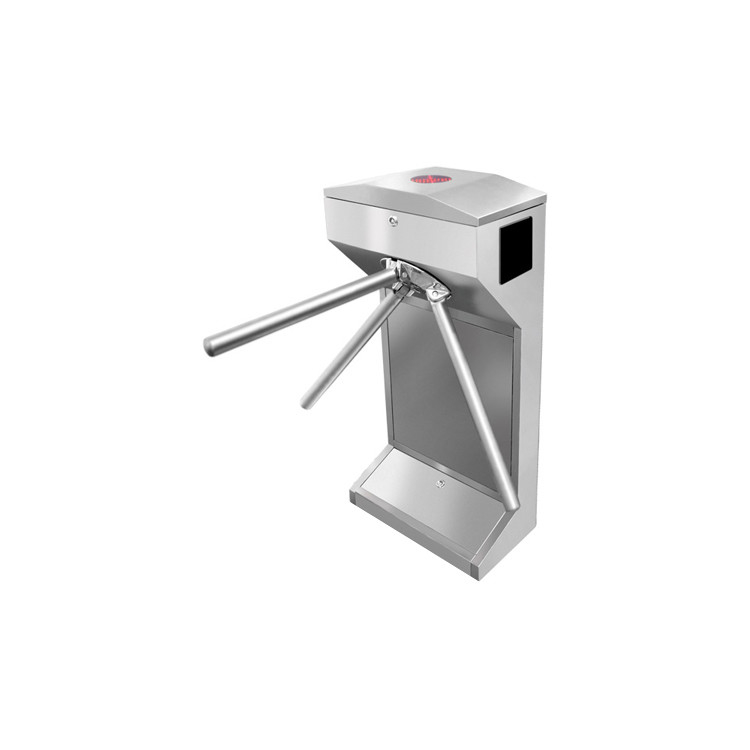

Pedestrian Access Control Traffic Tripod Turnstile Gate
High-volume pedestrian access control solution with capacity of 30 people per minute.
Product Overview
This  semi-automatic mini tripod turnstile is designed for entrance security with access control readers to prevent unauthorized access while maintaining an inviting atmosphere. This compact gate offers superior anti-tailgating protection and does not accommodate luggage passage.
Applications
Suitable for both indoor and outdoor installations, including coastal areas. An economical solution for railways, bus stations, factories, colleges, commercial buildings, stadiums, game parks, banks, and similar facilities.
Technical Specifications
Power Voltage AC220 ±10%V/50 ±10%HZ
Communication Mode 232/485 TCP/TP
Movement Hydraulic movement
Structure 1.2mm thick 304 stainless steel
Relative Humidity None-condensation
Input Signal 12v DC level or Dry contact signal
Working Current ≤2000mA
Length of the Bar 510mm
Open Angle 120°
Pass Speed ≤40 person/minutes
Open Direction Single and Double (optional)
Work Environment Outdoor and indoor
Temperature -20℃ to 60℃
Width of Passage ≤550mm
Features & Benefits
  • Compact and cost-effective entrance security solution
  • Fully rainproofed 304 stainless steel housing - rust-resistant, solid, and durable
  • Suitable for indoor and outdoor installation with IP54 rating
  • International standard relay output for easy integration with third-party access control systems (RFID, Fingerprint, Face, Barcode, IR thermometer)
  • Semi-automatic operation - push arm slightly when access is granted
  • Durable, corrosion-resistant, heavy-duty mold mechanism for extended service life
  • Precision components ensure smooth, quiet operation with optional hydraulic damper
  • Single-person passage design prevents tailgating
  • Supports both single-directional and bi-directional operation
  • LED directional indicator light on housing top
  • Automatic clock function - arm locks after 5 seconds if passage not initiated
  • Power-off safety feature - arms drop automatically for free passage, complying with fire safety requirements
Maintenance Guidelines
Recommended daily usage: 10,000 rotations. Exceeding this limit may accelerate wear on movable components. Serviceable internal parts include:
  • Solenoid lock
  • Roller bearing and spring
  • Shock absorber
  • Limit switch
Pedestrian Access Control Traffic Tripod Turnstile Gate 30 People Per Minute 0
Why Choose Sinomatic
  • 20+ years of OEM/ODM experience in access control turnstiles and barriers
  • Prompt delivery with standard model inventory
  • OEM/ODM orders accepted to meet specific client requirements
  • Trial orders available for product testing before bulk purchases
  • Comprehensive online technical support for business partners
  • Multiple transportation options: sea shipment, air cargo, or express delivery
  • Factory visits welcome on working days
