Access Control Tripod Turnstile Reader To Restrict Unauthorized Access
  • Access Control Tripod Turnstile Reader To Restrict Unauthorized Access
  • Access Control Tripod Turnstile Reader To Restrict Unauthorized Access
Access Control Tripod Turnstile Reader To Restrict Unauthorized Access

Access Control Tripod Turnstile Reader To Restrict Unauthorized Access

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-TT01
Product Details
Control Voltage:
DC24V
Control Signal:
Dry Contact/ Relay
Pass Speed:
30 Person Per Minute
Working Environment:
Indoor/ Outdoor
Housing / Arm:
304 Stainless Steel
Package:
Carton/plywood Box
Highlight:

Mechanical Drive Design Tripod Turnstile

,

Tripod Security Gate OEM

,

Tripod Turnstile Gate Rust Resistant

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T,Western Union,
Supply Ability
3,000pcs per month
Product Description

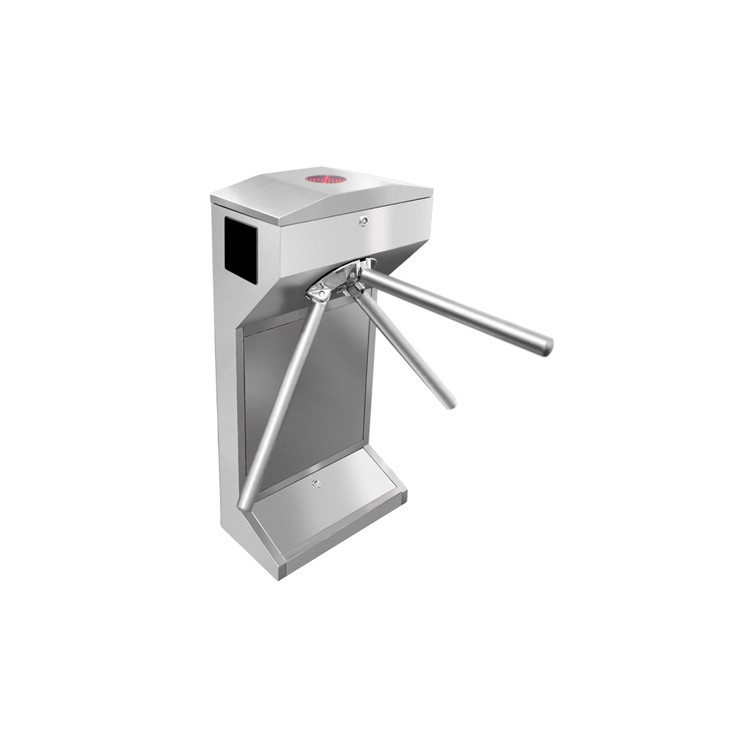

Access Control Tripod Turnstile Reader
This is an electro-mechanical turnstile designed to restrict unauthorized access. Its unique mechanical drive design allows effortless arm movement with automatic rotation back, eliminating the need for expensive electric motors.
High-Performance Access Control
This turnstile effectively controls high-volume human traffic (up to 30 people per minute) while maintaining a welcoming atmosphere. It seamlessly integrates with electronic systems for ticketing, ESD, RFID access control, or time attendance.
Versatile Applications
Suitable for both indoor and outdoor installations, including coastal areas. The SN-TT-M12 provides an economical solution for railways, bus stations, factories, colleges, commercial buildings, stadiums, game parks, banks, and more.
Access Control Tripod Turnstile Reader To Restrict Unauthorized Access 0
Technical Specifications
Parameter Specification
Power Voltage AC220 ±10%V/50 ±10%HZ
Communication Mode 232/485 TCP/TP
Movement Hydraulic Movement
Relative Humidity None-condensation
Input Signal 12v DC level or Dry contact signal
Working Current ≤2000mA
Length of the Bar 510mm
Open Angle 120°
Pass Speed ≤40 person/minutes
Structure 1.2mm thick 304 stainless steel
Open Direction Single and Double (optional)
Work Environment Outdoor and Indoor
Temperature -20℃ - 60℃
Width of Passage ≤550mm
Key Features & Benefits
  • Compact and cost-effective entrance security solution
  • Fully rainproofed 304 stainless steel housing - rust-resistant, solid, and durable
  • Suitable for both indoor and outdoor locations with IP54 rating
  • International standard relay output for easy integration with third-party access control systems (RFID, Fingerprint, Face, Barcode, IR thermometer)
  • Semi-automatic operation - slight push required when access is granted
  • Precision engineering ensures quick, accurate, stable, and quiet operation
  • Low-power consumption for energy conservation and environmental protection
  • Durable, corrosion-resistant, heavy-duty mold mechanism for extended service life
  • Single-person passage design for enhanced security
  • Supports both single-directional and bi-directional operation
  • LED directional indicator light on top of housing
  • Automatic clock function - arm locks if passage not completed within default 5 seconds
  • Power-off safety feature - arms drop automatically for free passage, complying with fire safety requirements
Maintenance Guidelines
Recommended usage capacity is 10,000 rotations per day. Continuously exceeding this limitation may accelerate wear on movable components. Serviceable internal parts include:
  • Solenoid lock
  • Roller bearing and spring
  • Shock absorber
  • Limit switch
Why Choose Sinomatic
  • Over 20 years of OEM/ODM experience in access control turnstiles, barriers, and road blockers
  • Prompt delivery with standard model stock availability
  • OEM/ODM orders accepted to meet specific client requirements
  • Trial orders and sample testing available before bulk orders
  • Comprehensive online technical support for business partners
  • Multiple transportation options: sea shipment, air cargo, or express delivery
  • Factory visits welcome on working days
