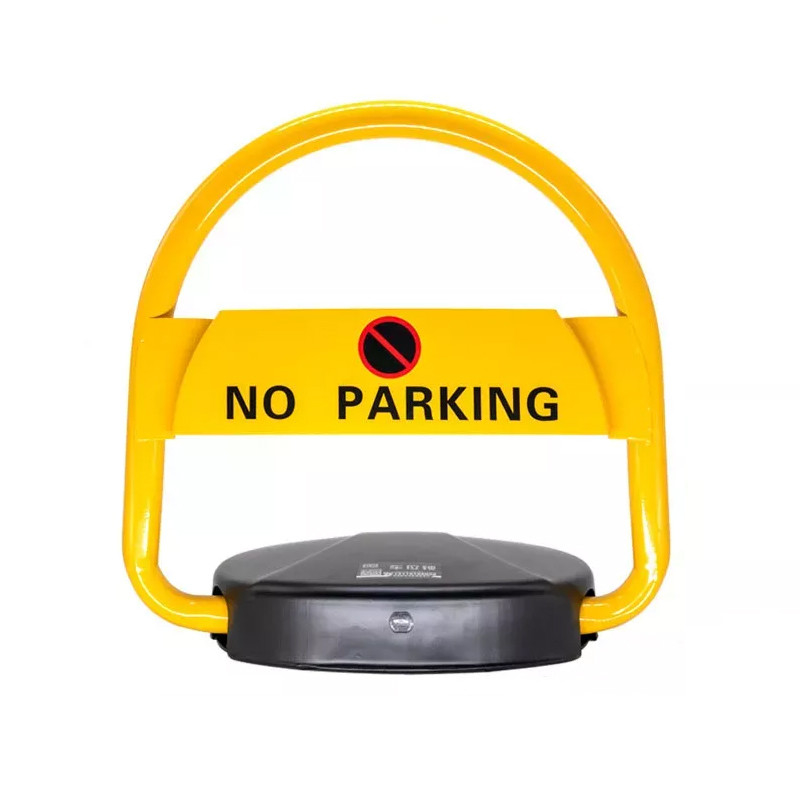

Smart Parking Automatic Lock Remote Control Waterproof No Parking For Cars
  • Smart Parking Automatic Lock Remote Control Waterproof No Parking For Cars
  • Smart Parking Automatic Lock Remote Control Waterproof No Parking For Cars
  • Smart Parking Automatic Lock Remote Control Waterproof No Parking For Cars

Smart Parking Automatic Lock Remote Control Waterproof No Parking For Cars

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-BW-8P
Product Details
Remote Distance:
≤30m
Rated Voltage:
DC6V
Rising Height:
460mm
Lower Height:
75mm
Width:
440mm
Gross Weight:
About 8 Kg
Highlight:

Remote Control No Parking Lock

,

DC6V Parking Lock For Car

,

Car Parking Lock Anti Collision

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
3-5 working days after payment received
Payment Terms
T/T, Western Union, , , L/C, D/A, D/P
Supply Ability
3,000 pcs per month
Product Description
Smart Parking Automatic Lock Remote Control Waterproof No Parking For Cars
Automatic Remote Control Car Barrier with 46cm Rising Height Parking Space Lock
Product Overview
SINOMATIC Intelligence Parking Lock is designed and developed by our factory, featuring photoelectric sensor location, interior anti-collision structure, and round shape design. With its attractive appearance, innovative structure, easy operation, robust functionality, and high security reliability, this parking lock effectively prevents unauthorized use or occupation of parking spaces. It serves as an excellent management solution for premium residential areas, shopping centers, hotels, offices, and airports.
Smart Parking Automatic Lock Remote Control Waterproof No Parking For Cars 0
Key Advantages
180° Anti-Collision Protection
Features flexible design with self-protection function that allows rotation back and forth to prevent damage from external collisions, accompanied by an audible alarm.
Heavy Duty & Durable Construction
High-quality steel housing can withstand up to 5 tons of weight. Spray plastic coating provides waterproof, rustproof, and dustproof protection for long-lasting performance in harsh weather conditions. The steel sway arm maintains its shape even when compressed by vehicles.
Long-Lasting Rechargeable Battery
Powered by rechargeable battery providing approximately 3 months of continuous use after charging. Includes recharging power pack. Optional built-in solar panel version minimizes charging requirements.
Low Battery Alarm
Automatically alerts users when battery power is low, reminding them to recharge the battery.
Technical Specifications
Size440×490×75mm (barrier down)
Weight8kg
FeatureDurable, Anti-UV, Waterproof
FunctionParking Lock
Ascending/Descending Period≤6 seconds
Height After Ascending460mm
Height After Descending75mm
Remote Distance≥15m
Work Temperature-10℃ to +55℃
Rated VoltageDC6V
Quiescent Current≤1mA
Working Current≤2.5A
Operating ModeAuto & Manual
Battery Type 1Dry Batteries
Battery Type 2Rechargeable Batteries (Lithium Battery & Lead-acid Battery)
PaintingRoast Outdoors Paint Processing
Iron Arm Thickness1mm
Functions & Features
  • Original 180° two-way rocker design
  • Effective protection against vehicle damage during parking
  • Indicator light flashes when power is low
  • Automatic alarm and descent when vehicle impacts the parking lock
  • High-quality DC motor
  • Excellent airtight design with superior waterproof function
  • Powered by rechargeable DC 6V battery with approximately 3 months continuous use
  • Remote control operation for automatic barrier rising to secure parking space
  • Strong compressive resistance up to 3 tons
  • 12-month warranty
Installation Instructions
  1. Grab the parking lock rocker by hand, then use the key to open the lock and lift the cover for installation
  2. Drill three holes with 12mm diameter and 50mm depth according to the mounting hole locations on the parking lock foot, then install M8 expansion bolts
  3. Place the parking lock base holes over the expansion bolts, install and tighten the nuts to complete installation
  4. For use, open the top cover and insert the battery plug into the parking lock socket, then place the battery flat
  5. Replace the cover by fitting the upper and lower fixing blockers of the box (cover the upper cover and push forward) and lock the upper cover
