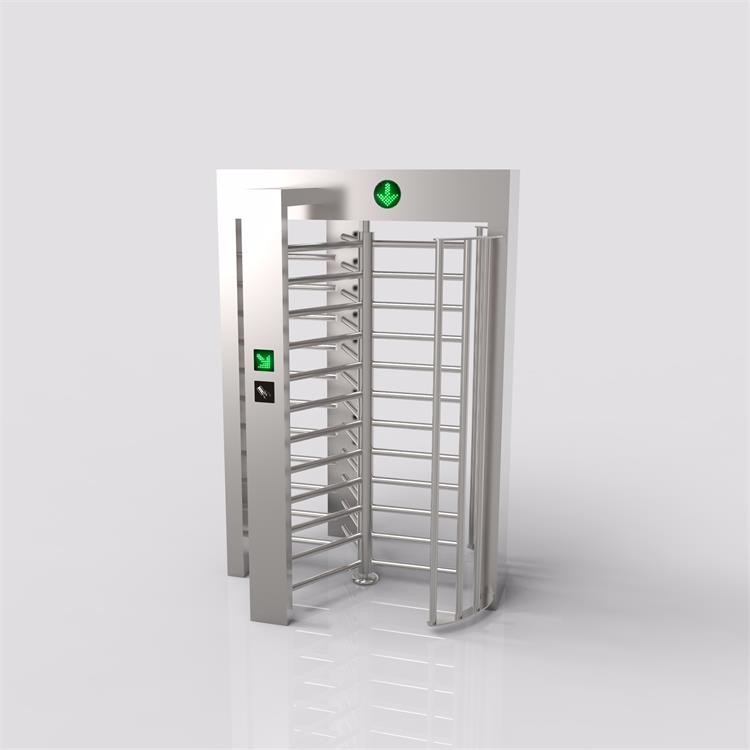

High Security 120 Degree Full Height Sliding Turnstile Overhead Canopy Access Control System

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-FHT01
Minimum Order Quantity Sample order accepted
Price negotiable
Packaging Details Carton/Plywood box/Pallet
Delivery Time 5-10 working days after payment received
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 3,00pcs per month
Product Details
Housing Material SS304 Passage Clearance About 600mm
Control Voltage DC24V Package Plywood Box
Control Device RFID Reader, Fingerprint, Face, Password Direction Bi-directional
High Light

120 Degree Full Height Sliding Turnstile

,

DC24V Full Height Sliding Turnstile

,

Overhead Canopy Full Height Turnstile

Leave a Message
Product Description

High Security 120 Degree Semi-Automatic Overhead Canopy Access Control System Full Height Sliding Turnstile



ABOUT SINOMATIC FULL HEIGHT TURNSTILE



This series full height turnstile is s a high-tech product which mainly provides high Security level management to passageway. The device use



high quality stainless steel and total water proof design, it can be installed directly outdoor. The device works in bi-direction, only after the user



access granted, the barrier can be pushed open. When power ofF, the barrier can be rotated freely for fre alarm security in fail-safe mode by



default. Or the device can be set to fail-secure mode, when power off the barrier can't be freely rotated.

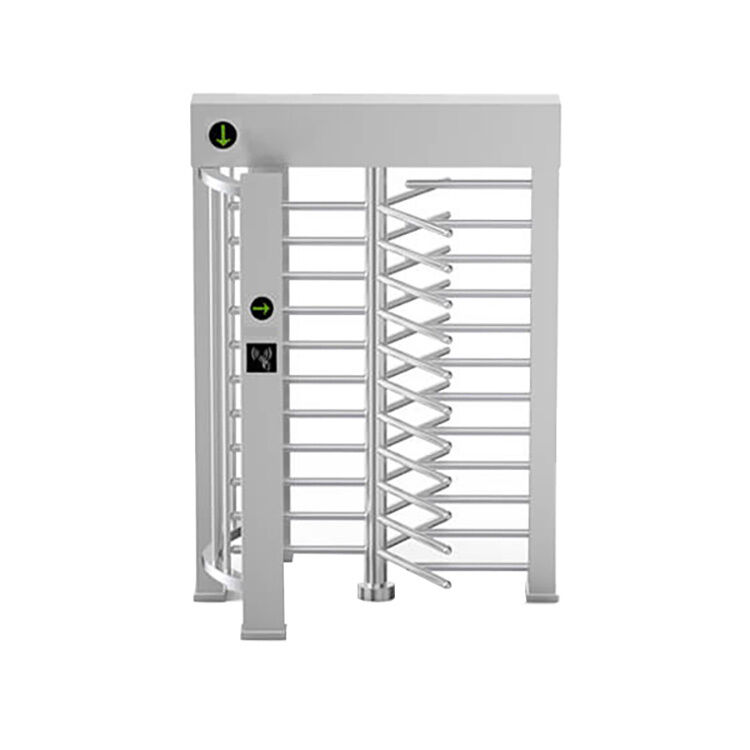

High Security 120 Degree Full Height Sliding Turnstile Overhead Canopy Access Control System 0

Structure parameters
Housing material 304 grade stainless steel
Thickness 1.5mm
Surface treatment Brushed finish
Technical parameters
Size 1500*1350*2240mm
Lane width About 600mm
Passing speed 30--40 people/min
Unlock time 0.2sec
Weight 350KG
Turning angle 120 degree/ 90 degree
MCBF 5.000.000 times
Application Indoor or outdoor
Rotating directional Single way or Bi-directional adjustable
Noise <55db
Operating temperature -25 to 70℃
Relative humidity 5% to 95%
Package Plywood case
Electronic parameters
Power supply AC100V~240V, DC24V
Power consumption 100W
Input signal Dry contact
Driving motor Solenoid
Mainboard Independent development mainboard





MAIN FUNCTION AND FEATURES



1. Rainproof housing, anti-corrosion coating iron, 304 or 316 stainless steel.



2. Mechanical drive unit with solenoid locking mechanism eliminate the use of expensive electric motor and reduce maintenance cost.



3. If arm rotated more than half, it will auto-rotate to the next idle position. If arm rotated less than half, it will auto-rotate back to the current idle position.



4. Built in adjustable tensioner to control rotation force to minimize over rotation. Arm just need to be pushed lightly to rotate therefore even elderly or children are able to use the turnstile.



5. Turnstile can be configured to be bi-directional or uni-directional. Housing is locked with special key to avoid tampering.



6. Innovative and unique mounting surface ensures simple and convenient installation for system integrator.



7. Can be used with variety of access control devices: IC / ID card readers, bar-code scanner, fingerprints, etc. (Access controller needed)



8. Automatic reset function. Should the user fail to pass within the prescribed time (default time is 5 seconds), the system will cancel the authority of the current user automatically.



9. The mechanism is equipped with an automatic regulated hydraulic buffer device. There is no noise and impact when running.
