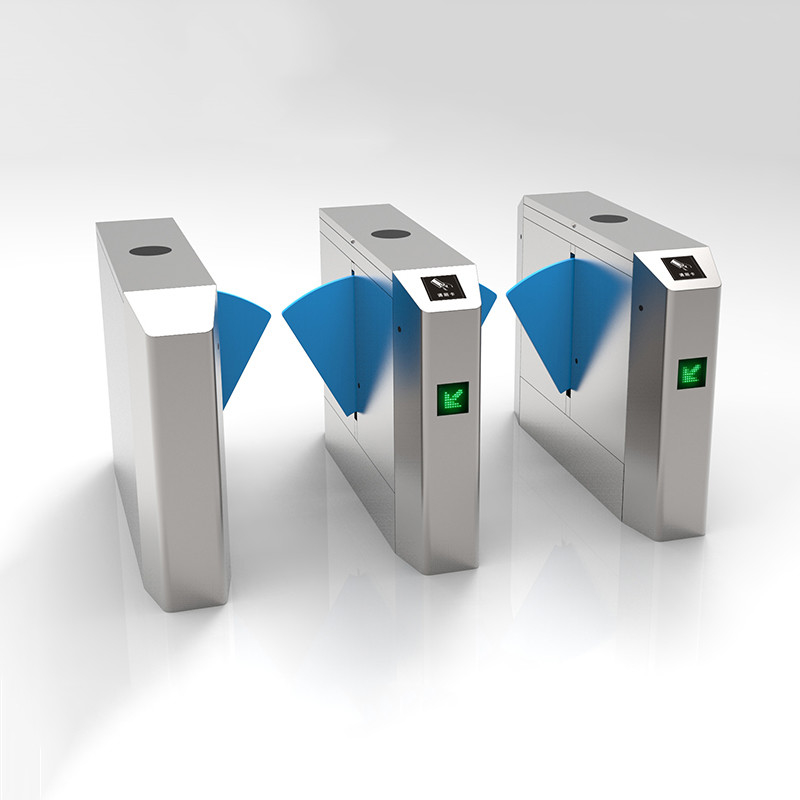

Metro Station Flap Turnstile Gate Entry Control With QR Code Reader
  • Metro Station Flap Turnstile Gate Entry Control With QR Code Reader
  • Metro Station Flap Turnstile Gate Entry Control With QR Code Reader
  • Metro Station Flap Turnstile Gate Entry Control With QR Code Reader

Metro Station Flap Turnstile Gate Entry Control With QR Code Reader

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-FB01
Product Details
Material:
SS304/ Acrylic
Dimension:
1200x300x1000mm
Motor Voltage:
DC 24V
Passing Direction:
Single Directional / Bi-directional
Power Input:
AC100V~240V; DC24V
Protection Grade:
IP 54
High Light:

Metro Station Flap Turnstile Gate

,

IP 54 Flap Turnstile Gate

,

Motor drive flap Gate turnstile

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T or western Union
Supply Ability
3,000pcs per month
Product Description

2022 Metro Station Entry Control QR code reader flap turnstile turnstile door



PRODUCT DESCRIPTION

A flap barrier turnstile is used when both heightened security and electronic optical turnstile access control are desired. These turnstiles provide a barrier to entry with a very pleasing and inviting appearance.



Luxury Intelligent flap turnstile gate ---can be compatible with IC card , ID card ,barcode card , fingerprint reading card recognition device used for staff, provide civilized , orderly access methods; effectively manage the access of staff. Flap turnstile gate can be widely used in the station, wharf subway , factories, office building, hotel, clubs, intelligent community, enterprises and institution that need intelligent access management.



Metro Station Flap Turnstile Gate Entry Control With QR Code Reader 0



MAIN FUNCTION AND FEATURES



1. Fault detection and alarm functions, easy to use and maintenance.



2. The running status can be programmed and controlled with the built-in keyboard on the main board.



3. Mechanical anti-pinch function. If the gate meets resistance in the reset process, motors will stop

working automatically within the prescribed time and reset again after the default delay (till fully reset).



4. Anti-breakthrough function. The gate is locked automatically until opening signal received.



5. Synchronization functions (for dual gate equipment).



6. Automatic reset function. Should the user fail to pass within the prescribed time (default time is 5 seconds),

the system will cancel the authority of the current user automatically.



7. Gate can be set as normally open or normally closed.



8. Can be used with variety of card readers: IC / ID card readers, bar codes, fingerprints, etc. (Access controller needed).



9. Direction can be set as single-direction or bi-direction.



10. LED direction indicator.



11. Gate auto opens when power off and auto close when power on, complying with fire safety requirements.



12. Alarm function, in case of illegal intrusion and reverse intrusion, etc.



13. Counter function (optional).



14. Support infrared photocell for anti-pinch and reset function.



TECHNICIAL SPECIFICATIONS



Description Parameters
Lane Width 550-570mm
IP IP54
Pass Speed 30 persons/min
Power supply AC220V/110V,50/60Hz, DC24V
Drive Mode Motor drive
Max Power Consumption 100W
Opening time 0.5S
Humidity ≤90% coagulation free
Noise ≤50dB
Service Life More than 5,000,000 cycles
Outside packing 130x40x116cm
Working Environment -20°C~+60°C
Gross Weight 85KGS





Application



Sinomatic full automatic flap barrier gate are widely used in the following sites:

  • Banks, insurance companies
  • Governmental and institutional establishments
  • Office buildings, registered offices, administrative sites...
  • Schools, universities and colleges
  • Sensitive sites : military, nuclear, pharmaceutical, computer centers...
  • Airports
